Home >> Honda >> 2000 >> Accord LX Coupe V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Dome Lamp

Dome Lamp

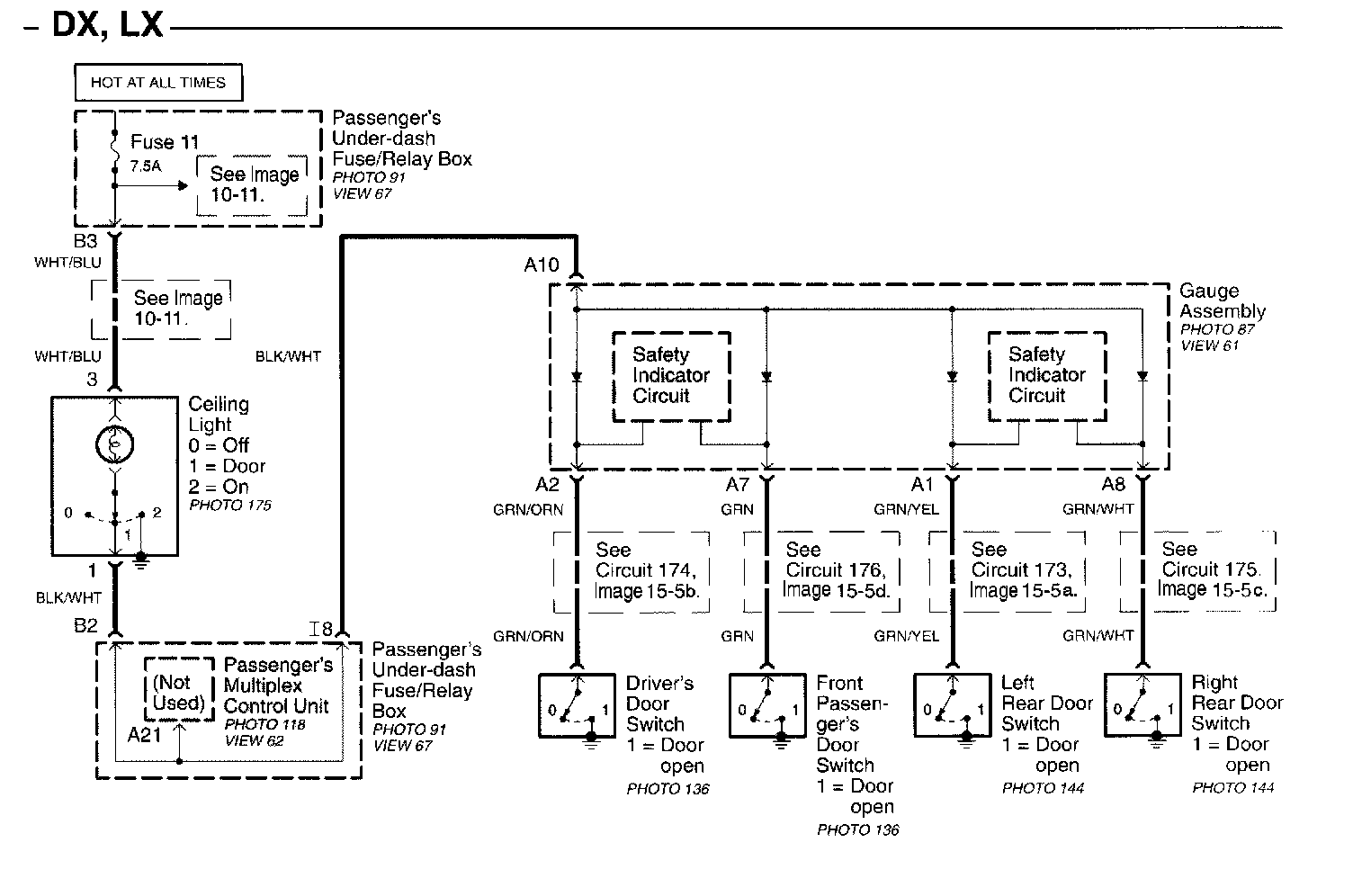

Ceiling Light Image 114-1:
