Home >> Honda >> 2000 >> Accord LX Coupe V6-3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Circuit Diagrams

Circuit Diagrams

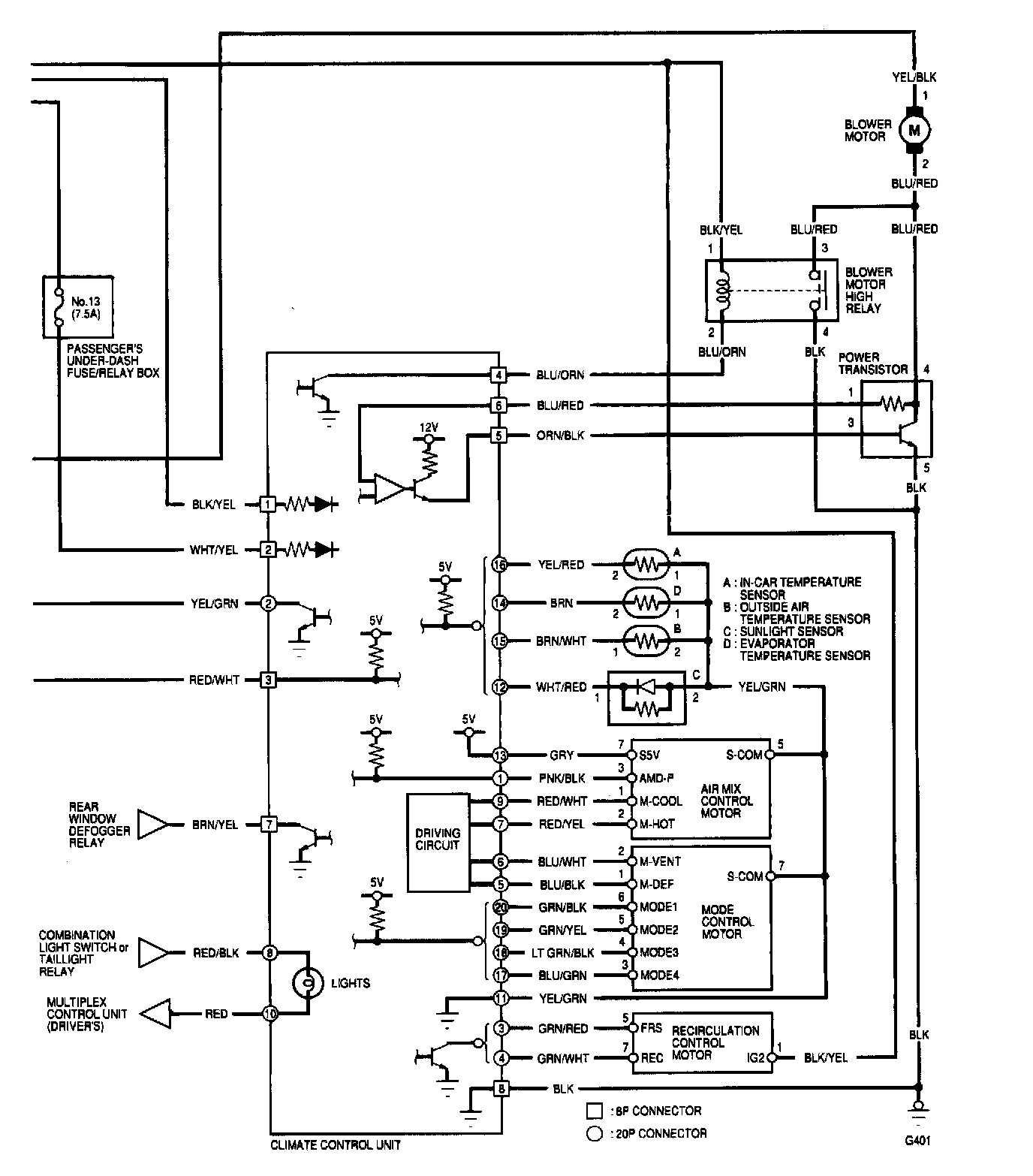

Climate Control Circuit Diagram (Part 1):

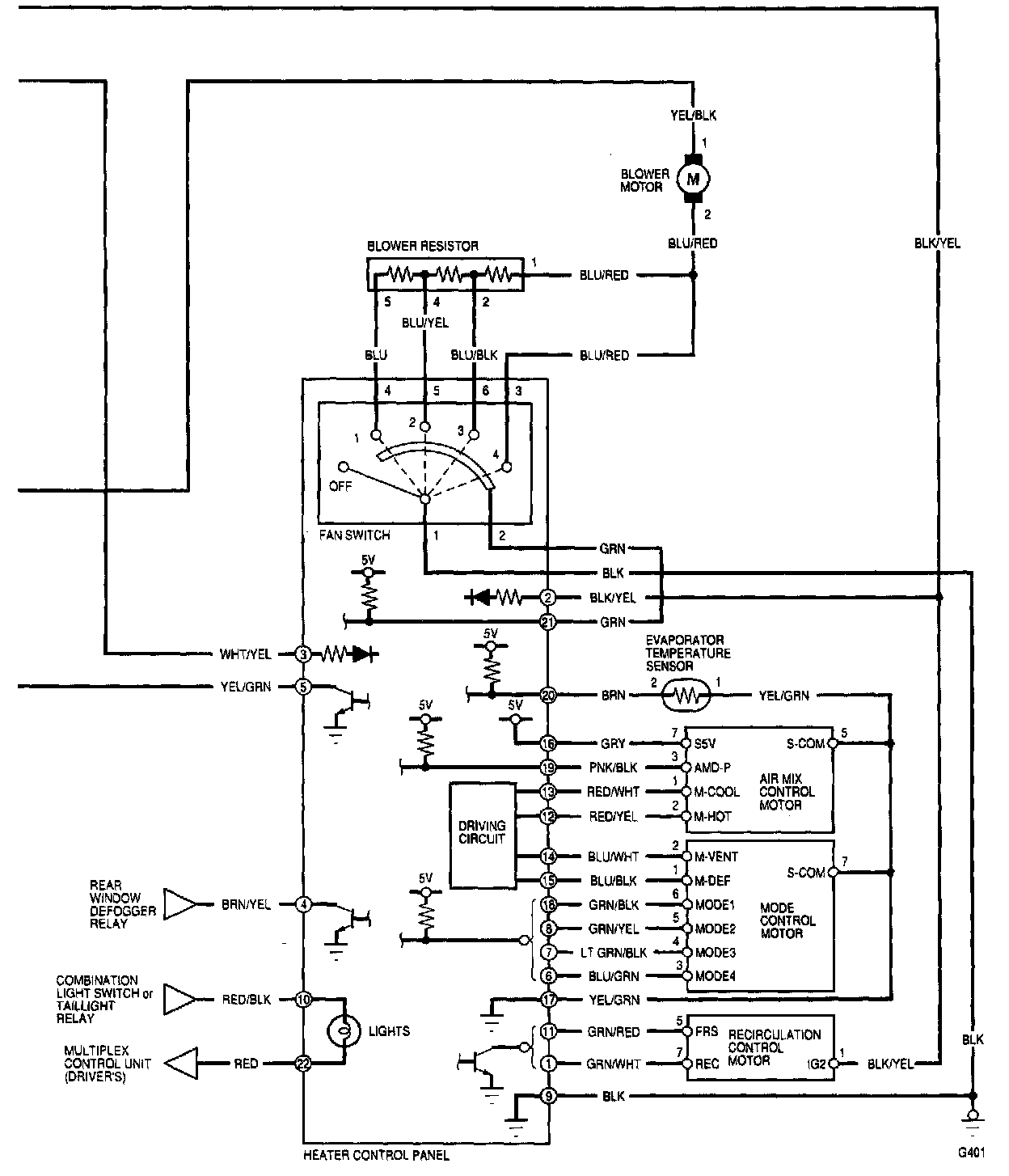

Climate Control Circuit Diagram (Part 2):

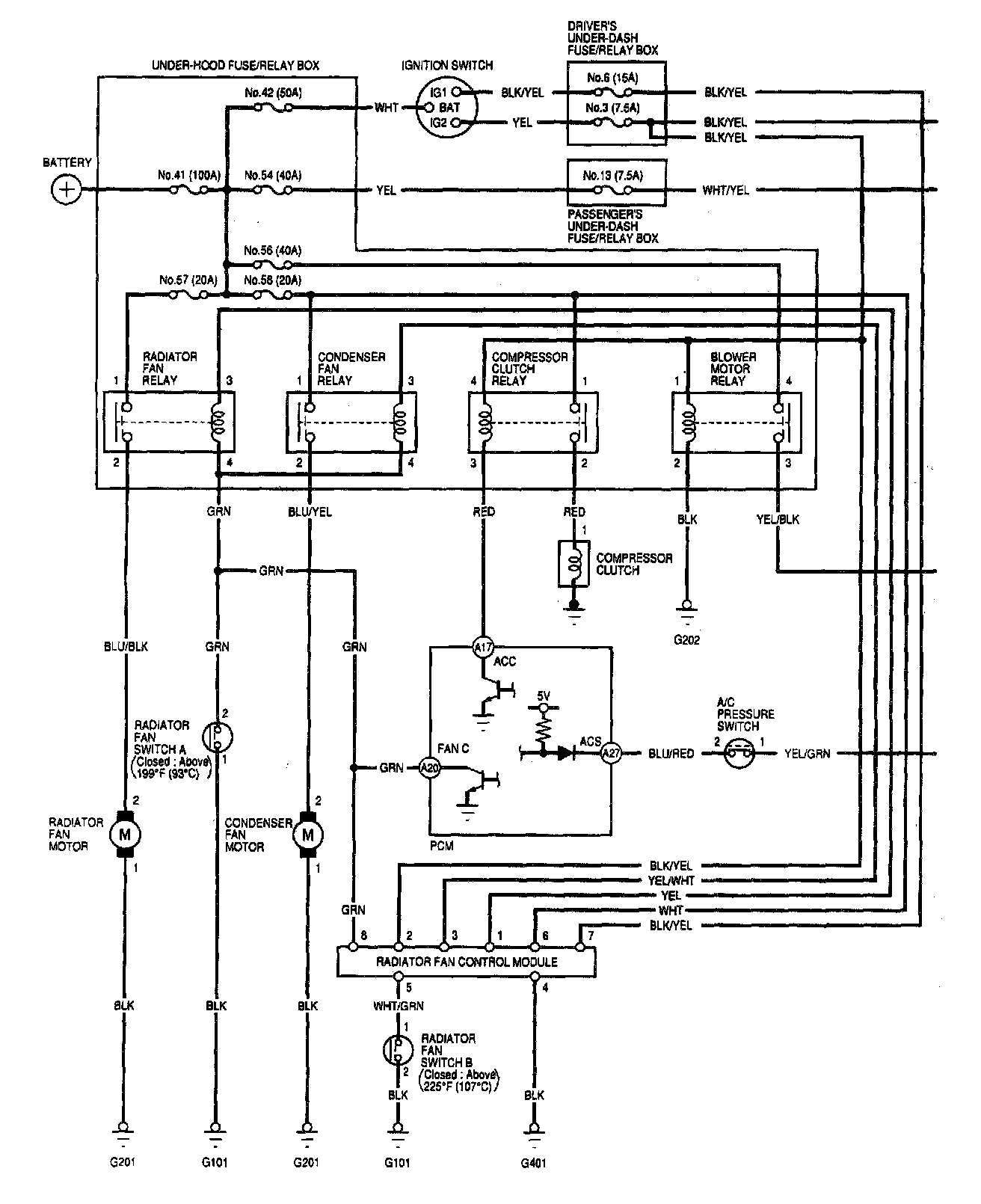

Heating - Circuit Diagram:

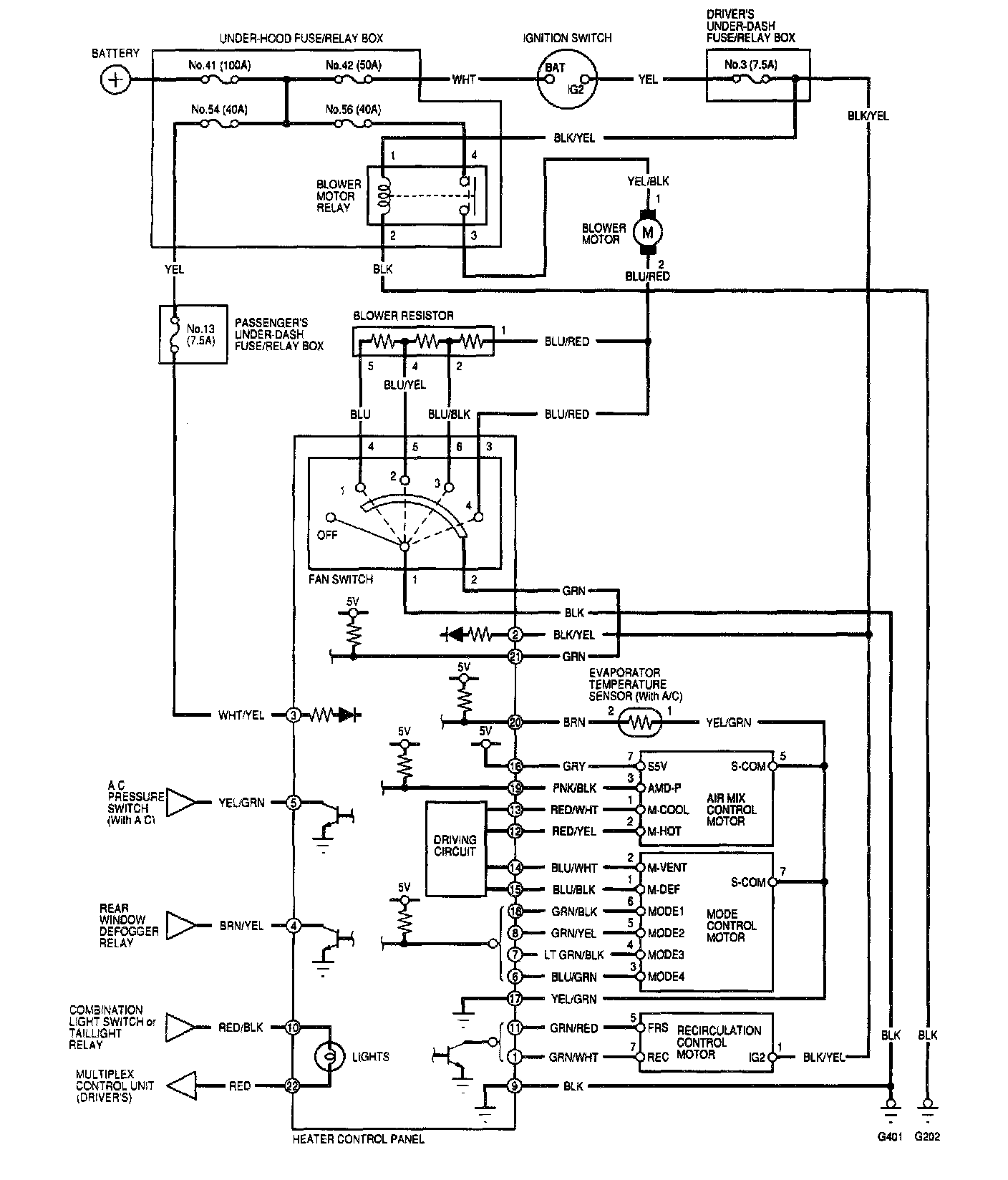

Air Conditioning - Circuit Diagram Image 21-8:



Air Conditioning - Circuit Diagram Image 21-9:
