Fuse: Application and ID

Driver's Under-dash Fuse/Relay Box:

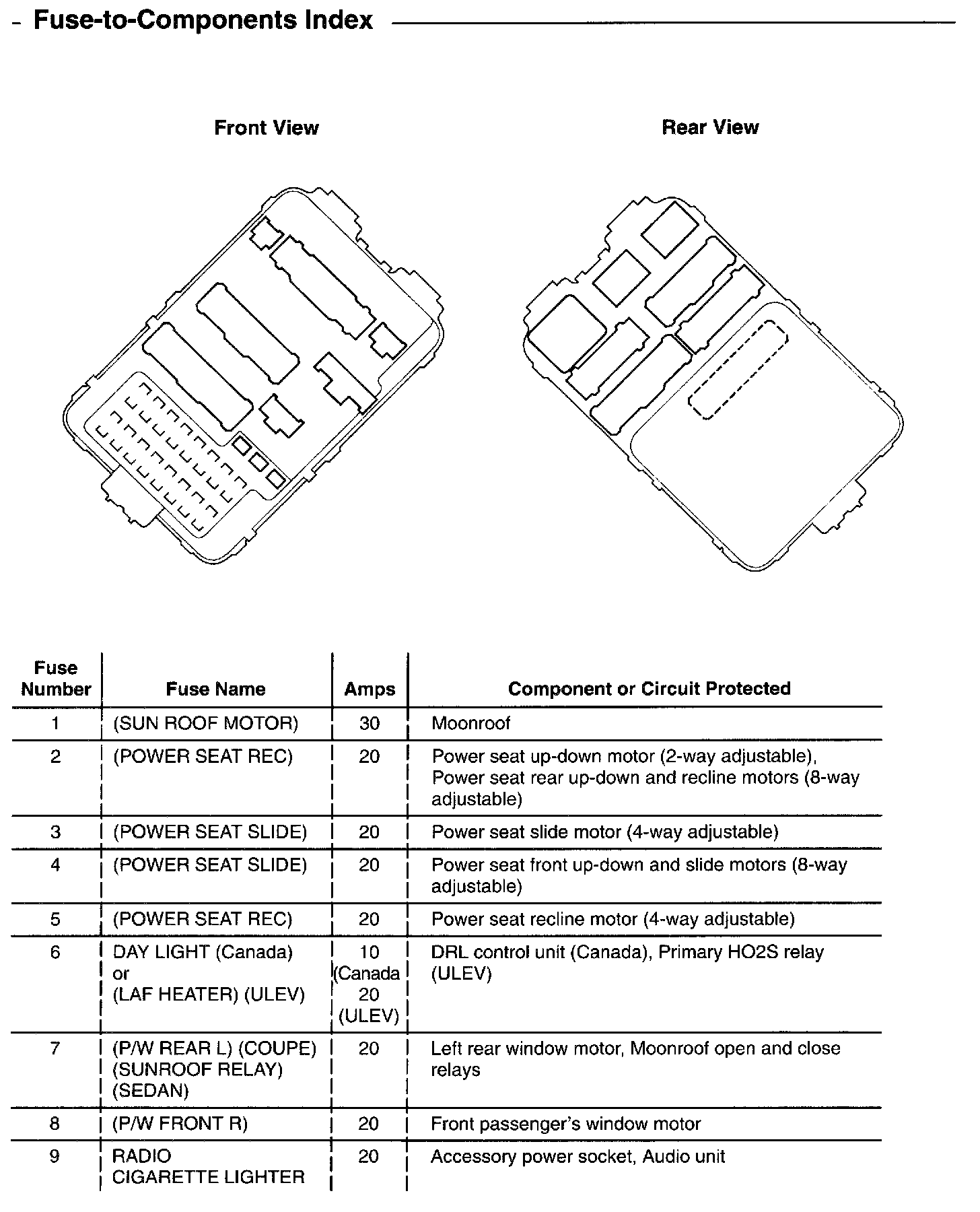

Passenger's Under-dash Fuse/Relay Box, 1 Of 2:



Passenger's Under-dash Fuse/Relay Box, 2 Of 2:

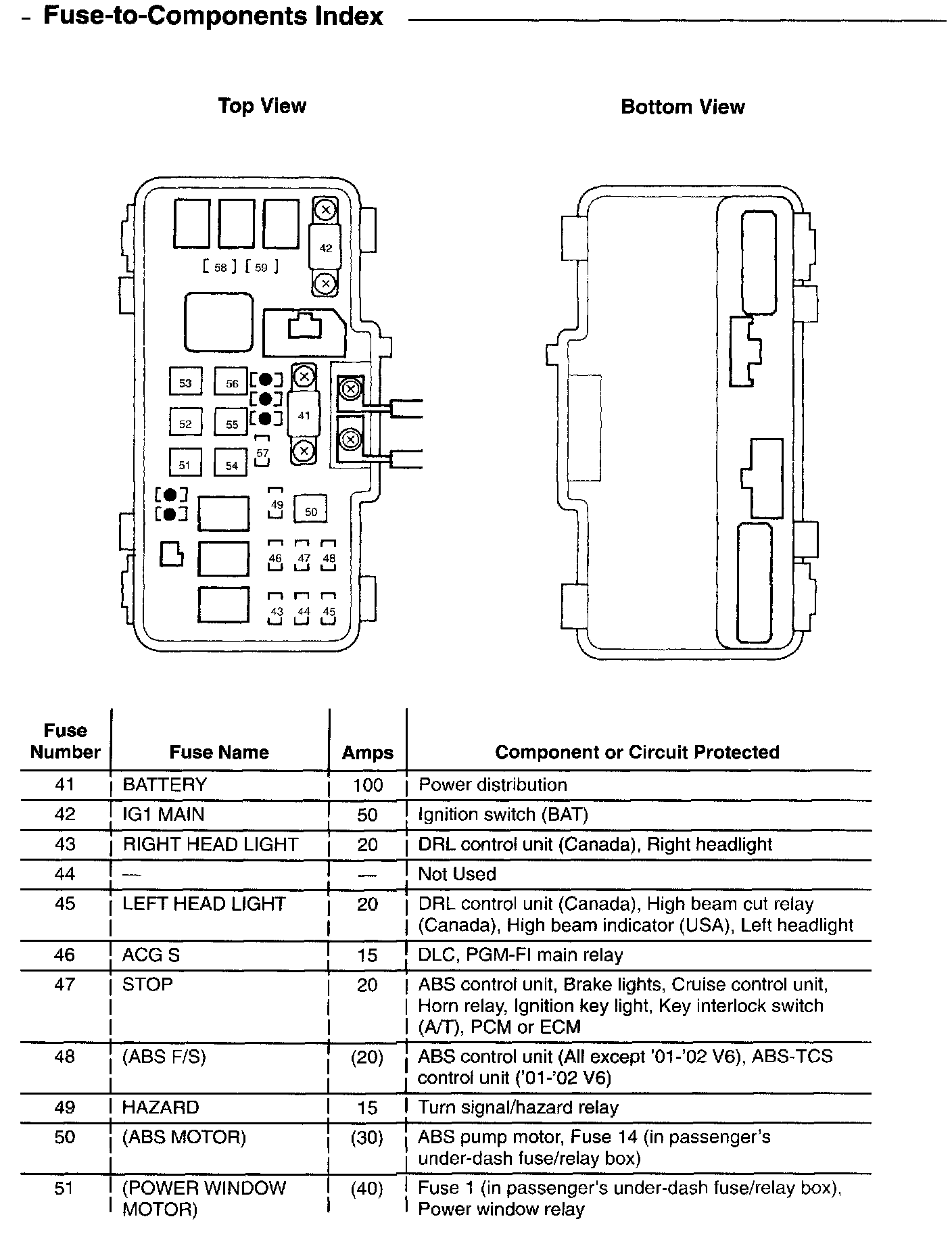

Under-hood Fuse/Relay Box, 1 0f 2:



Under-hood Fuse/Relay Box, 2 0f 2:
