Driver's Door Mirror - Vibrates
00-035April 18, 2000
Applies To:
1999 Accord 2 door - ALL
2000 Accord 2 door - V6 From VIN 1HGCG2...YA000001 thru
1HGCG2...YA023564
- L4 From VIN 1HGCG3...YA000001 thru
1HGCG3...YA013755
Driver's Door Mirror Vibrates
SYMPTOM
The driver's door mirror vibrates while driving on smooth roads.
PROBABLE CAUSE
The mirror is not properly attached to the mirror holder, allowing the glass to vibrate when the vehicle is in motion.
CORRECTIVE ACTION
Replace the driver's mirror.
PARTS INFORMATION
Left Mirror: P/N 76253-S84-K21, H/C 5617287
WARRANTY CLAIM INFORMATION
In warranty: The normal warranty applies.
Operation Number: 818101
Flat Rate Time: 0.3 hour
Failed Part: P/N 76250-S82-K21ZA
H/C 5683362
Detect Code: 045
Contention Code: B99
Skill Level: Repair Technician
Out of warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.
REPAIR PROCEDURE

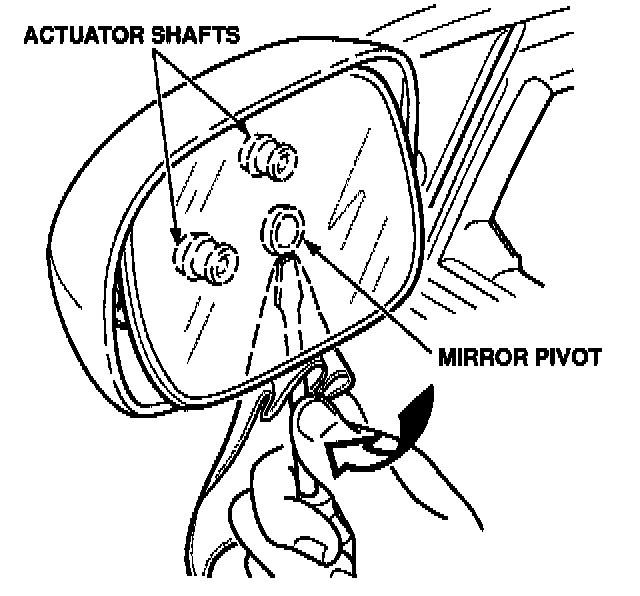

1. Pry out the bottom of the mirror with a screwdriver wrapped in a shop towel. Continue to pry until the actuator shafts come out of the actuator or the mirror.

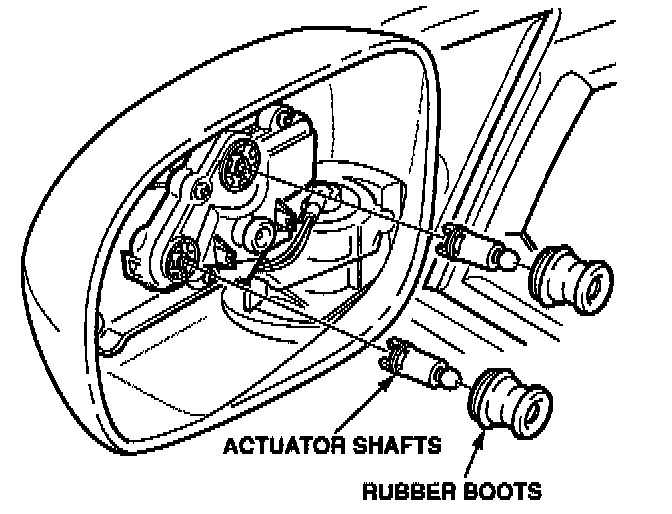

2. If the actuator shafts are still attached to the mirror, remove them and reinstall them on the actuator. Make sure the rubber boots are properly seated in the actuator.

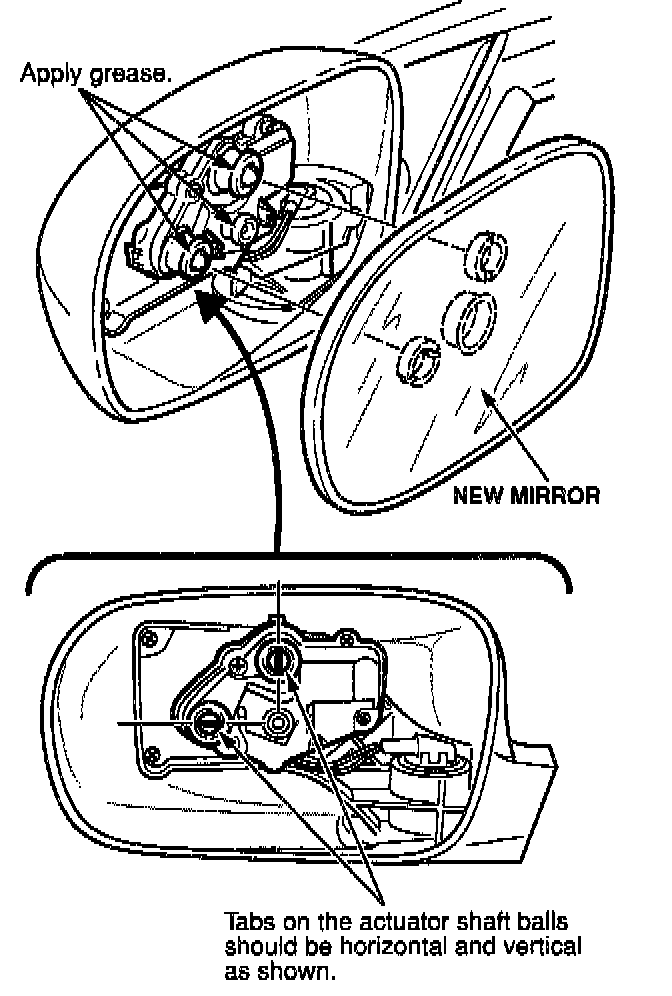

3. Before installing the new mirror:
^ Make sure the tabs on the actuator shafts are lined up with the slots on the back of the mirror.
^ Apply grease to the mirror pivot and the actuator shafts.
4. Align the pivot and the actuator shafts with the mirror, then carefully push on the mirror until the pivot and the actuator shafts are properly seated. If the pivot and the actuator shafts will not engage, warm the shafts and the pivot with a heat gun.
5. Clean the mirror with glass cleaner.
6. Check the operation of the power mirror actuator in all four directions.
7. Test-drive the vehicle to verify the mirror does not vibrate.
