Circuit Diagrams

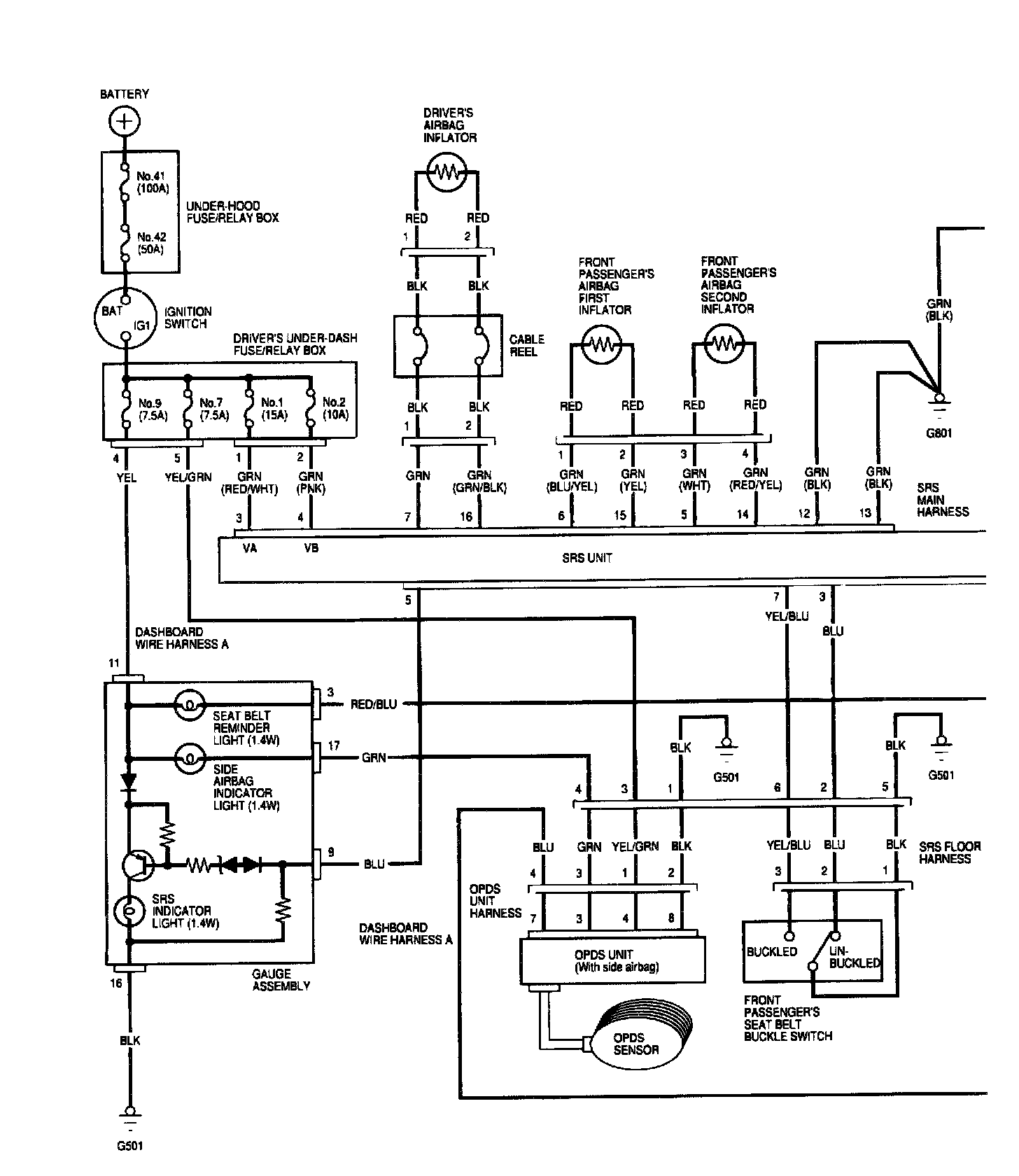

Circuit Diagram (2000 Sedan Models) (1 Of 2):

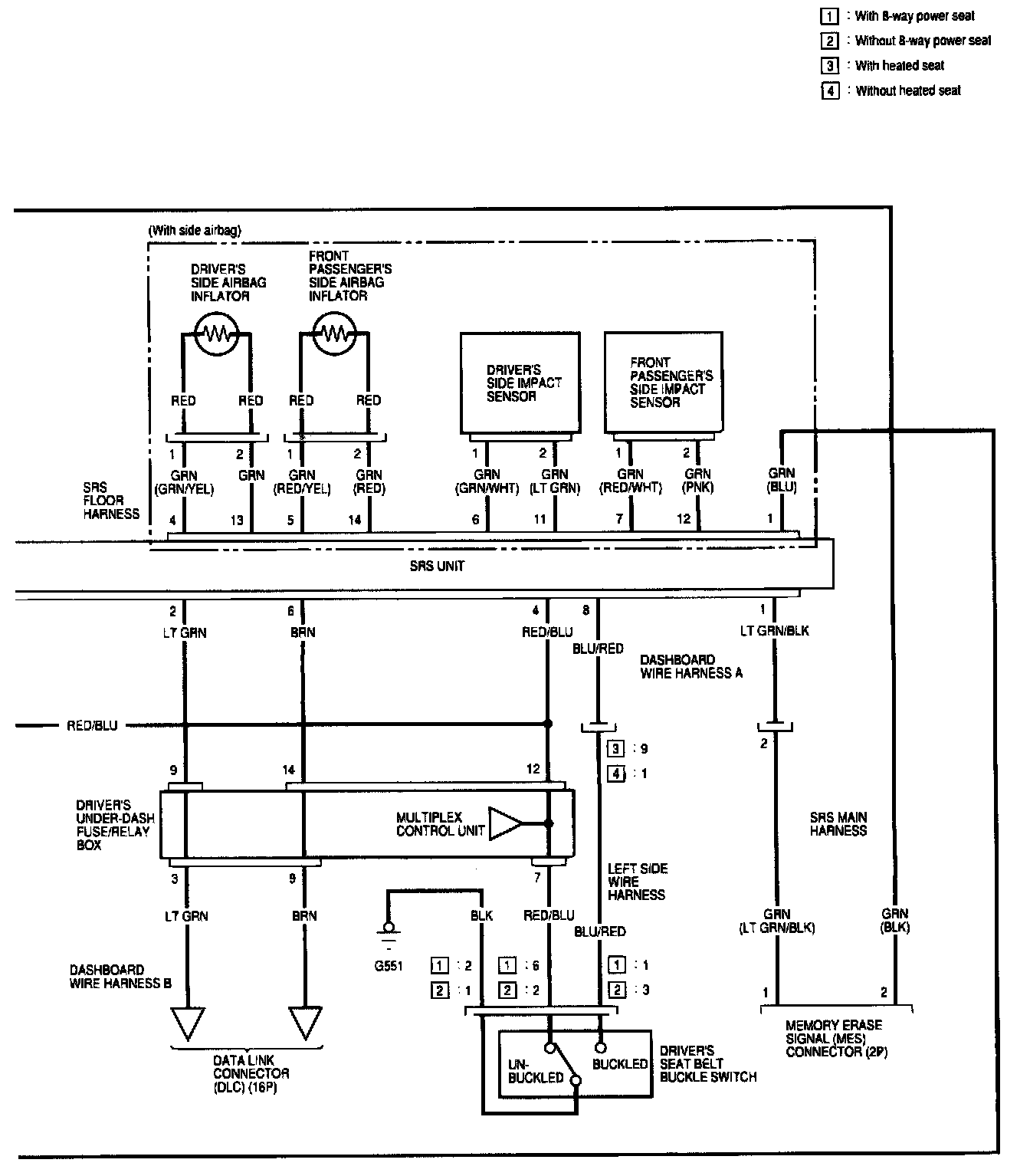

Circuit Diagram Cont'd.(2000 Sedan Models) (2 0f 2):
