ECM/PCM Electrical Connections

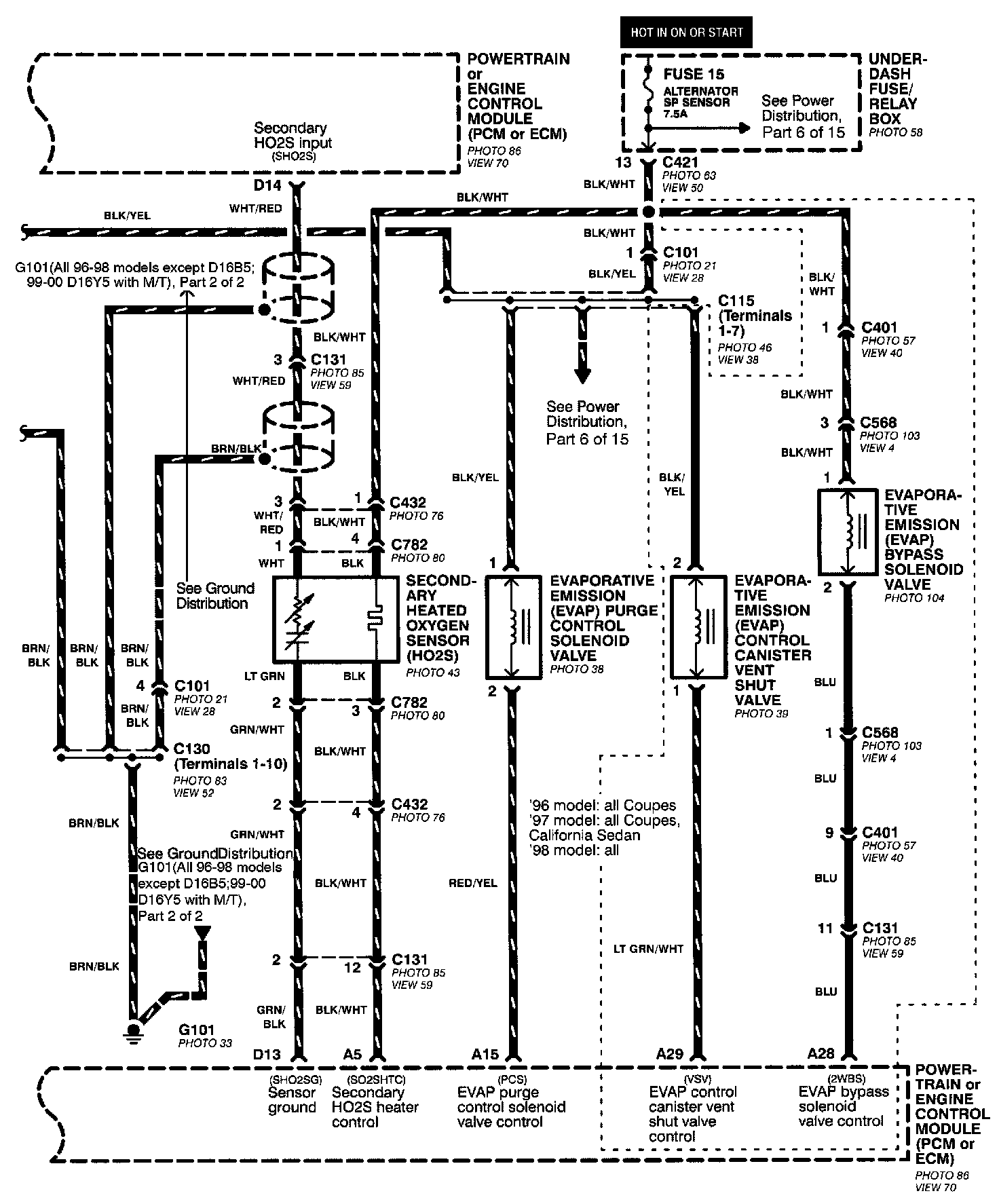

Part 9 D16Y8:

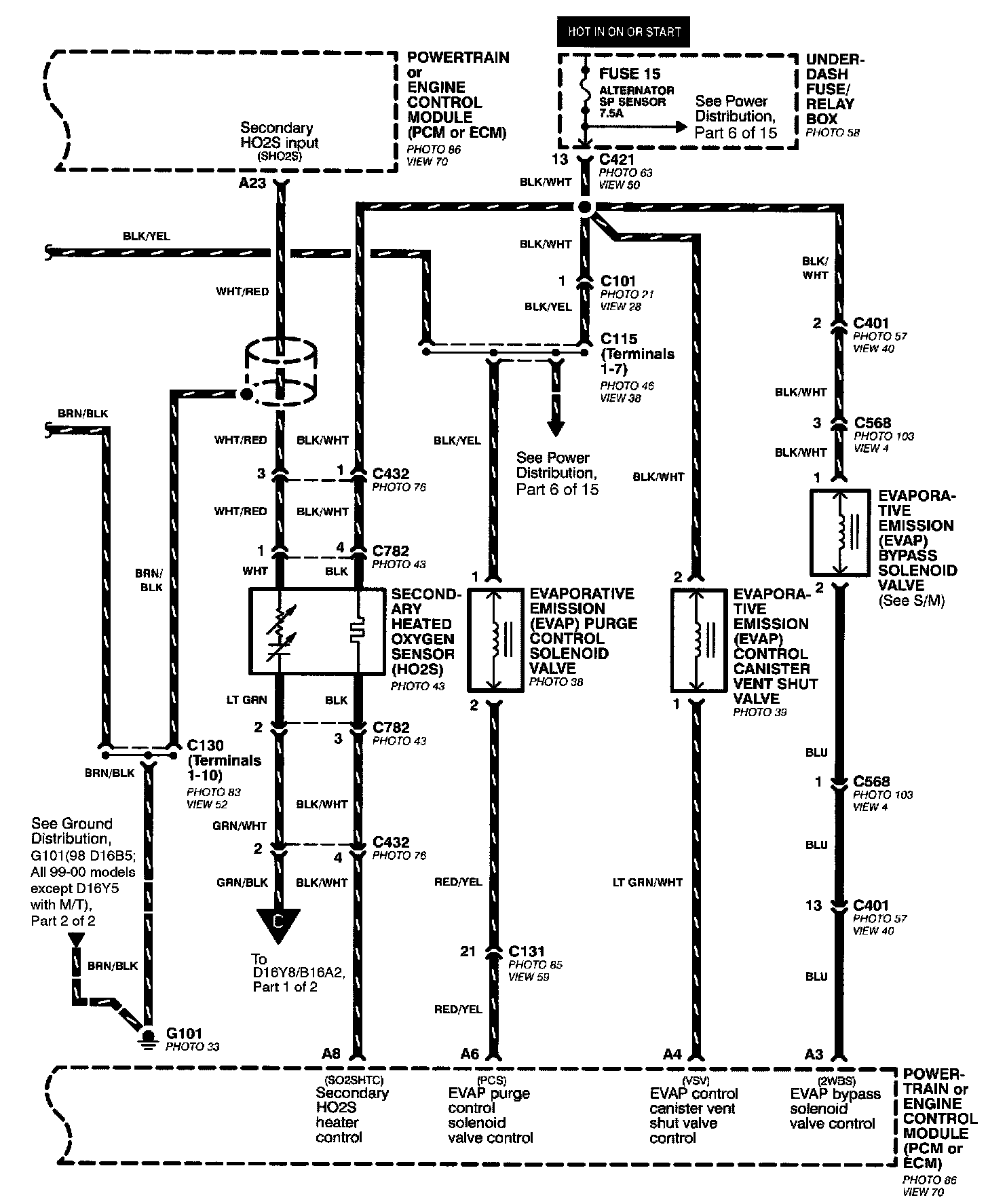

Part 10 D16Y8:

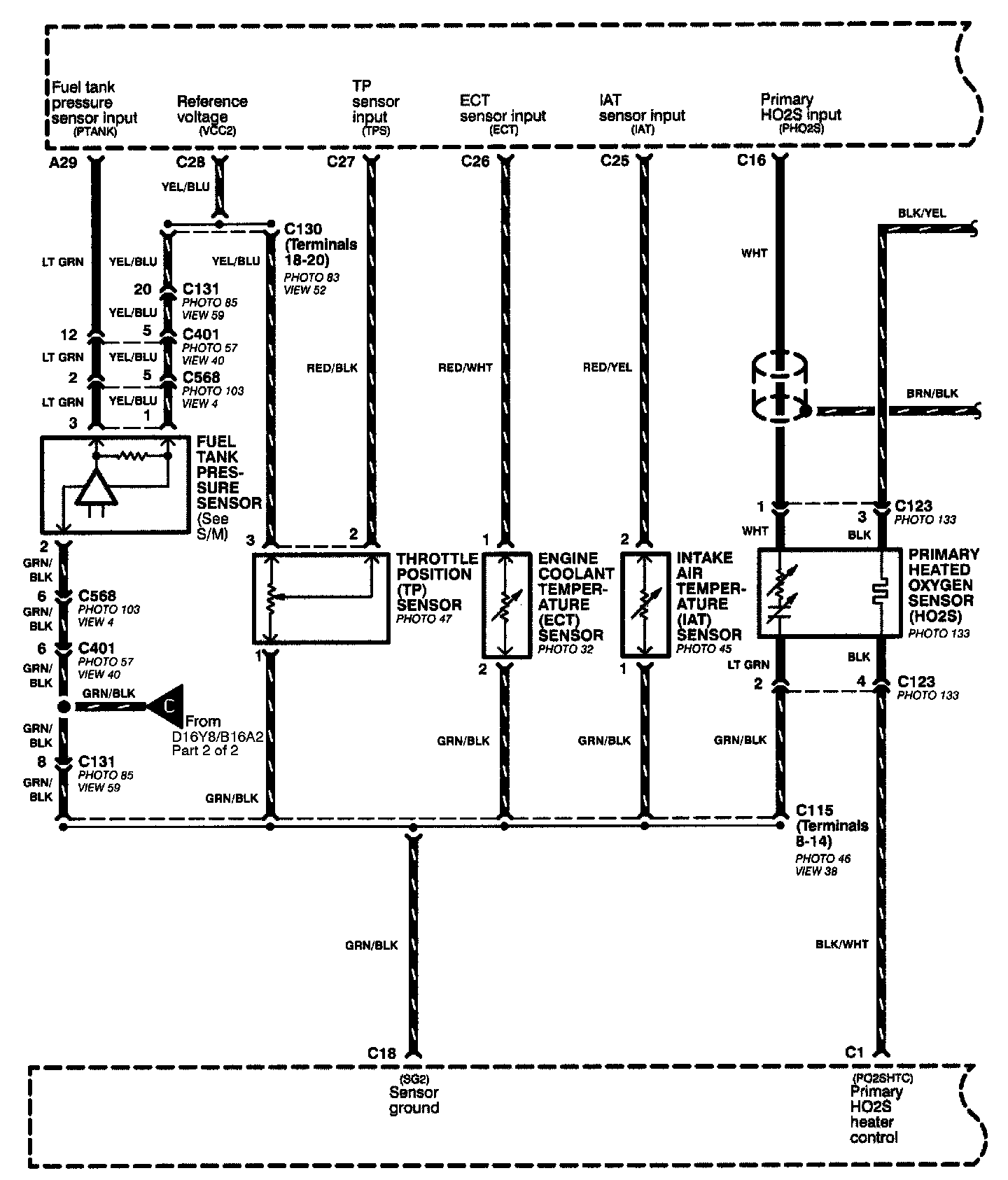

PGM-FI D16Y8/B16A2:



PGM-FI D16Y8/B16A2:
