Mirror Holder/Cover

CAUTION: Put on gloves to protect your hands.

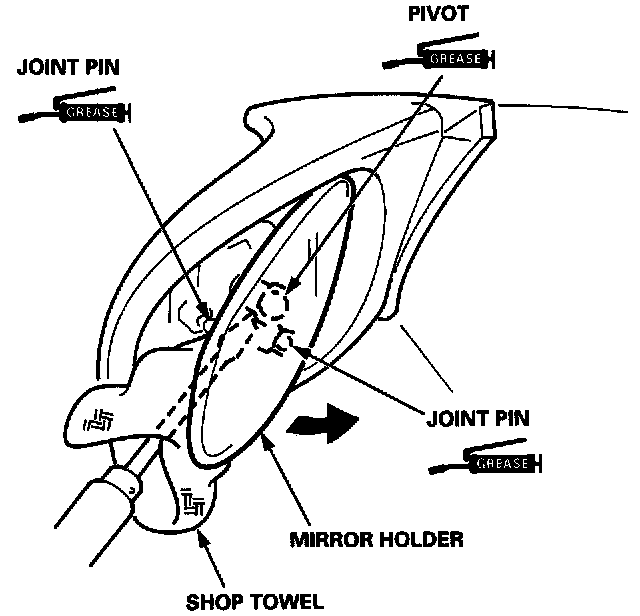

1. Carefully pry out the mirror holder with a flat tip screwdriver as shown.




2. Installation is the reverse of the removal procedure.

NOTE: Apply grease to the locations indicated by the arrows.
