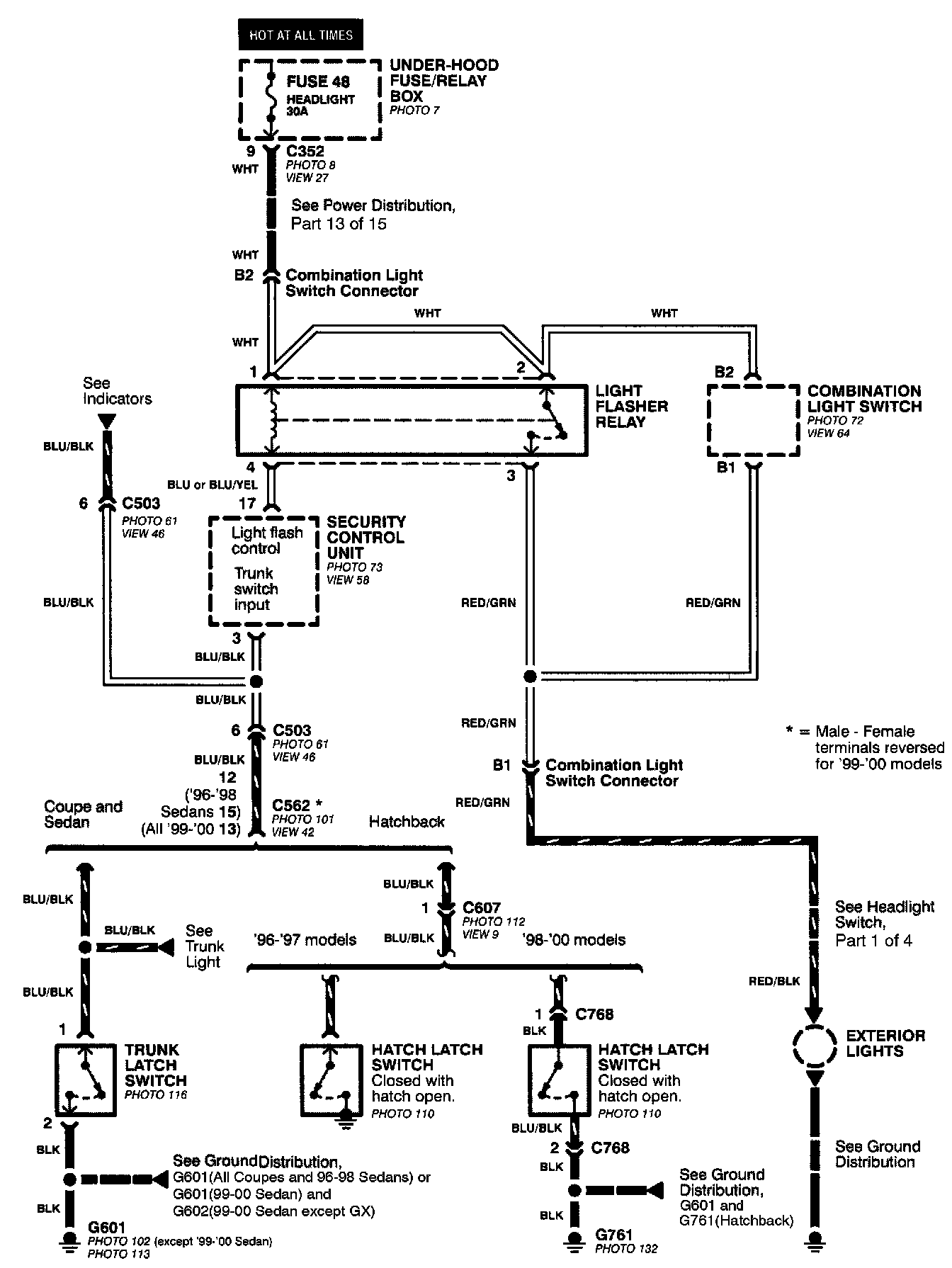

Antitheft and Alarm Systems

Part 1 of 4:



Part 1 of 3:



Part 2 of 3:



Part 3 of 3:





Part 2 of 4:



Part 3 of 4:



Part 4 of 4:
