Cooling System: Locations

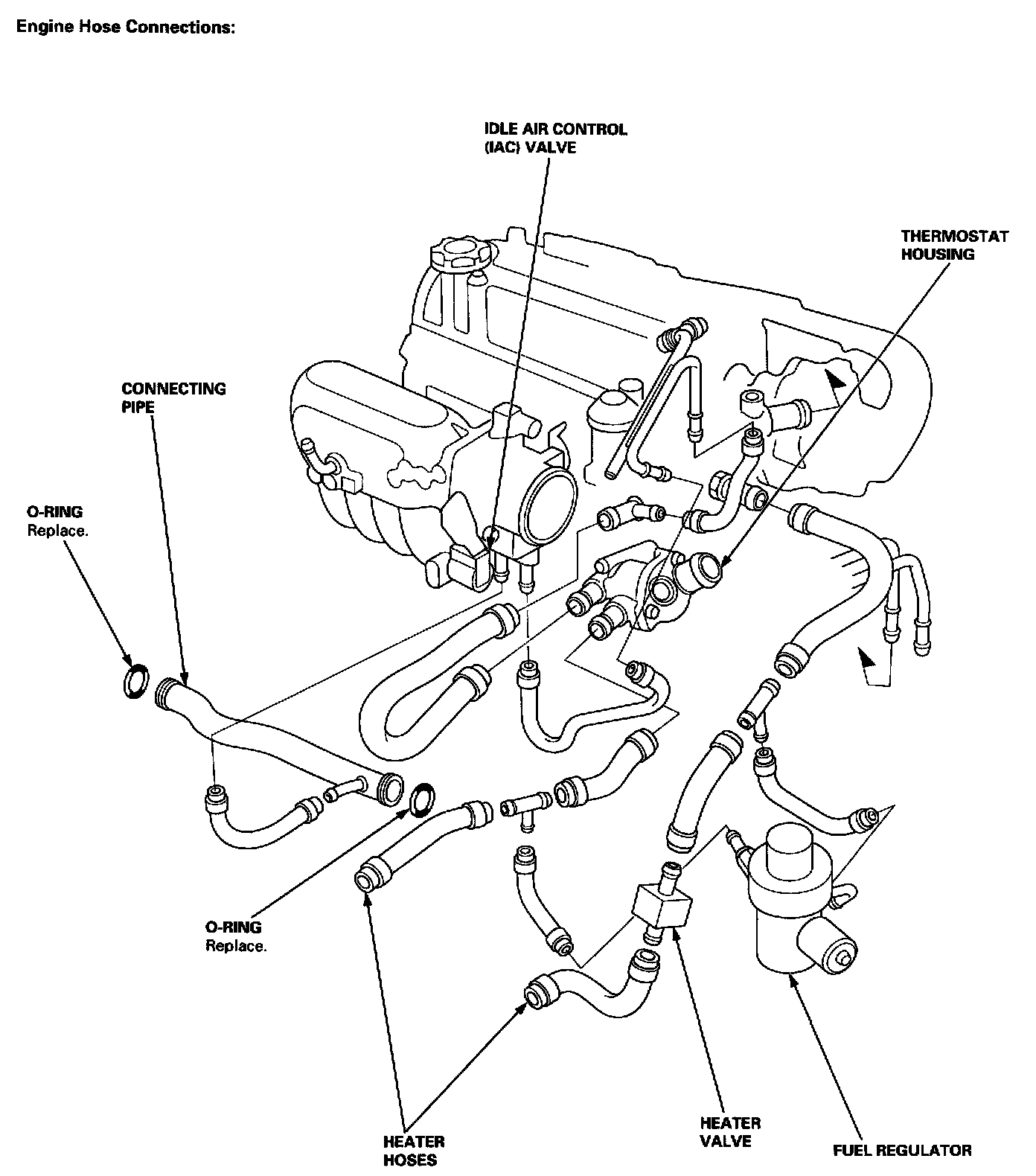

Cooling - Illustrated Index Part 1:

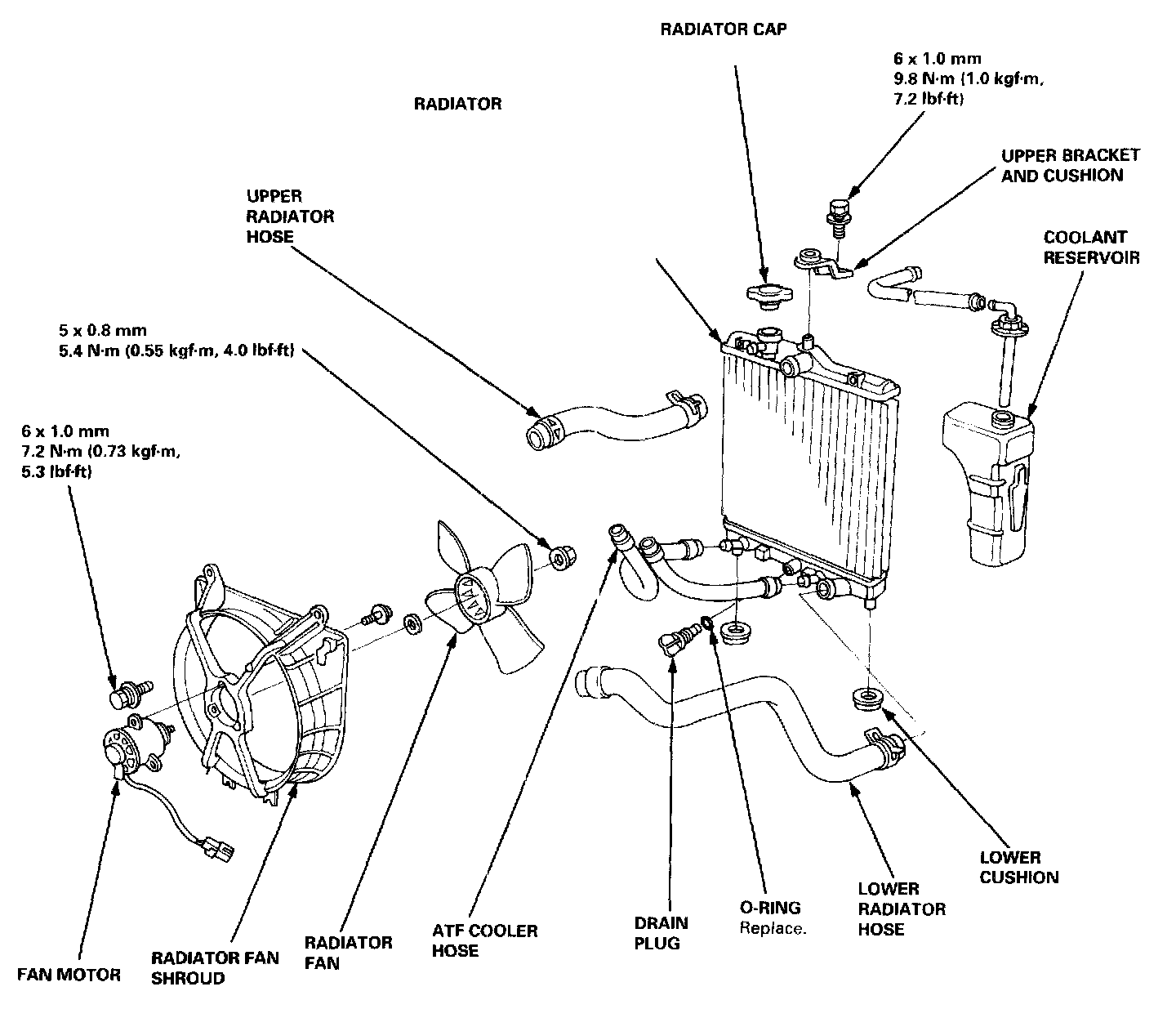

Cooling - Illustrated Index Part 2:

Illustrated Index

WARNING: System is under high pressure when the engine is hot. To avoid danger of releasing scalding engine coolant, remove the cap only when the engine is cool.

Total Cooling System Capacity [Including heater and reservoir (0.4 l (0.42 US qt, 0.35 Imp qt))]: 4.3 l (4.5 US qt, 3.8 Imp qt)

CAUTION: If any engine coolant spills on painted portions of the body, rinse it off immediately.

NOTE:
- Check all cooling system hoses for damage, leaks or deterioration and replace if necessary.
- Check all hose clamps and retighten if necessary.
- Use new O-rings when reassembling.
