Wiring Diagrams

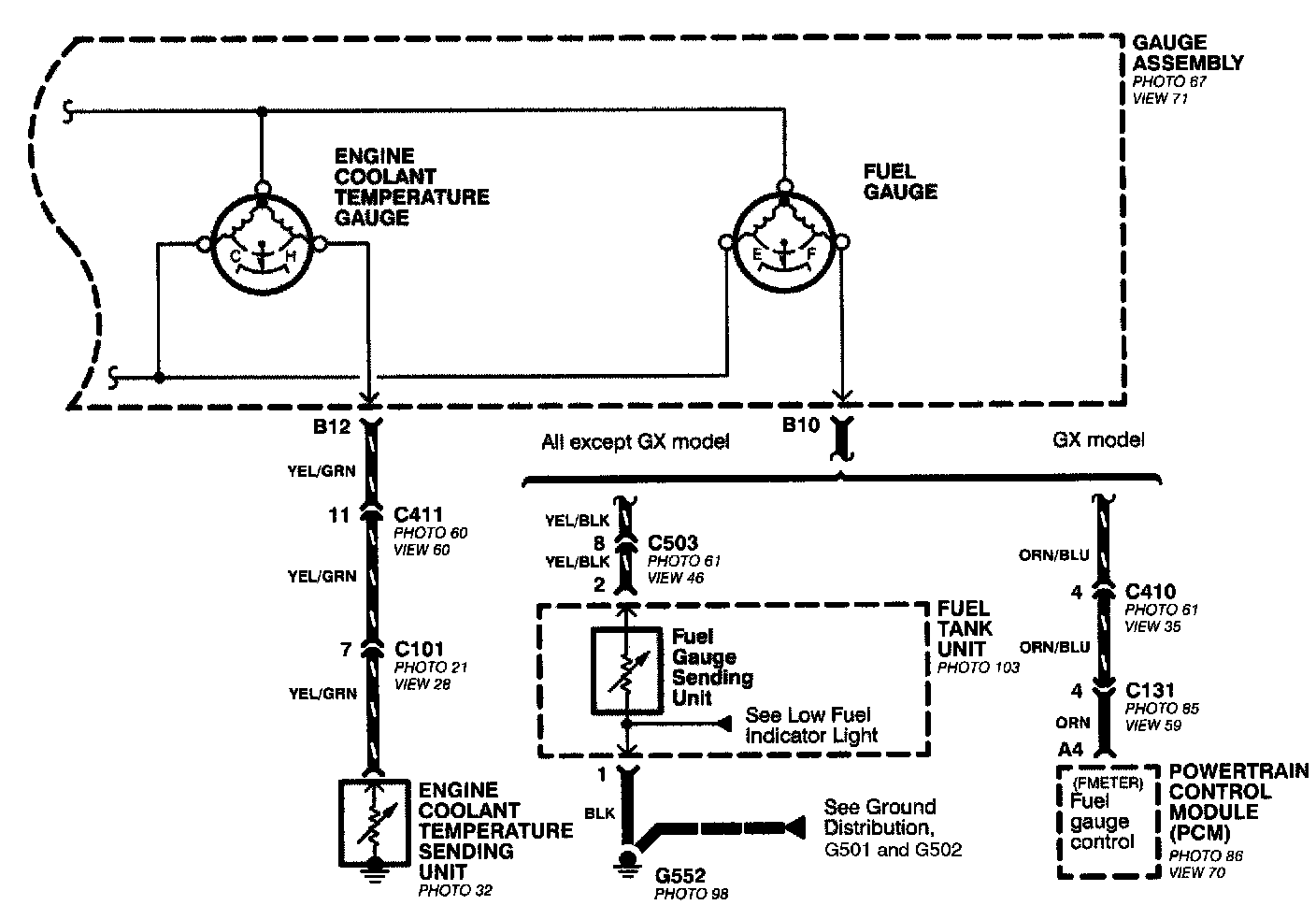

Part 1 0f 4:



Part 2 0f 4:



Part 3 0f 4:



Part 4 0f 4:



Part 1 0f 2:



Part 2 0f 2:
