System Connectors (Dash and Floor)

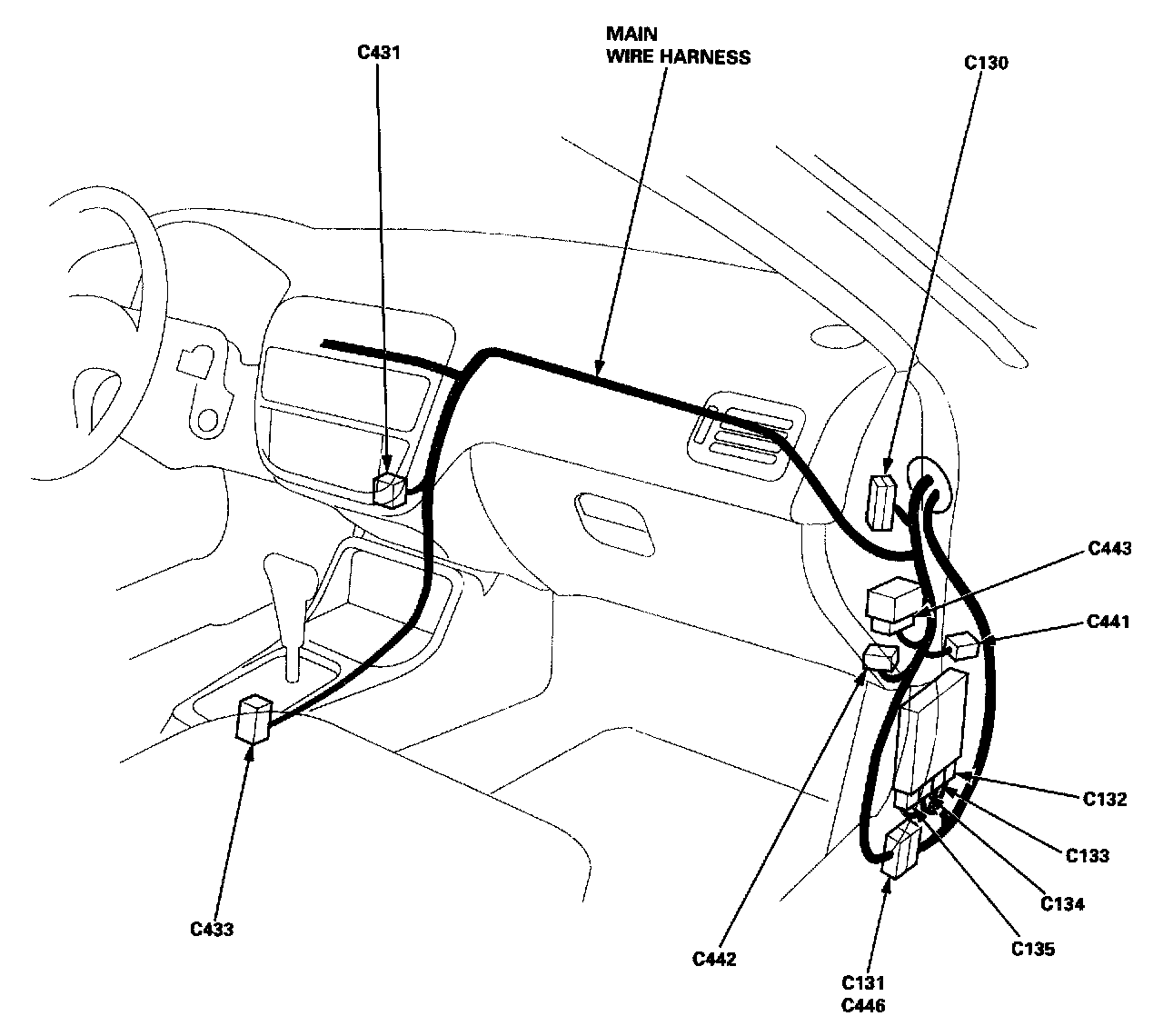

System Connectors [Dash And Floor] - Part 1:



System Connectors [Dash And Floor] - Part 2:



System Connector [Dash And Floor] - Part 3:



System Connector [Dash And Floor] - Part 4:
