System Connectors (Engine Compartment)

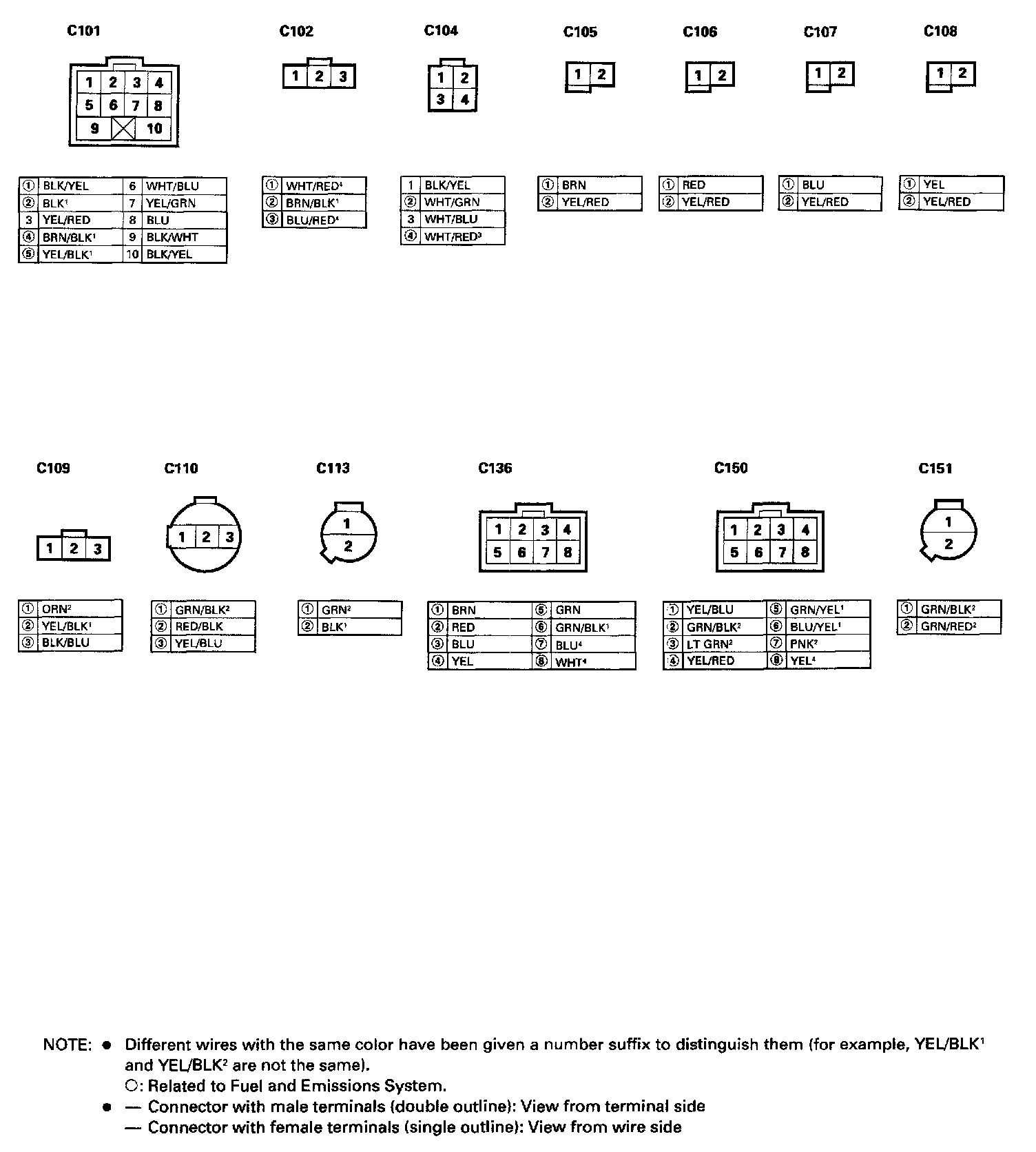

System Connectors [Engine Compartment] - Part 1:

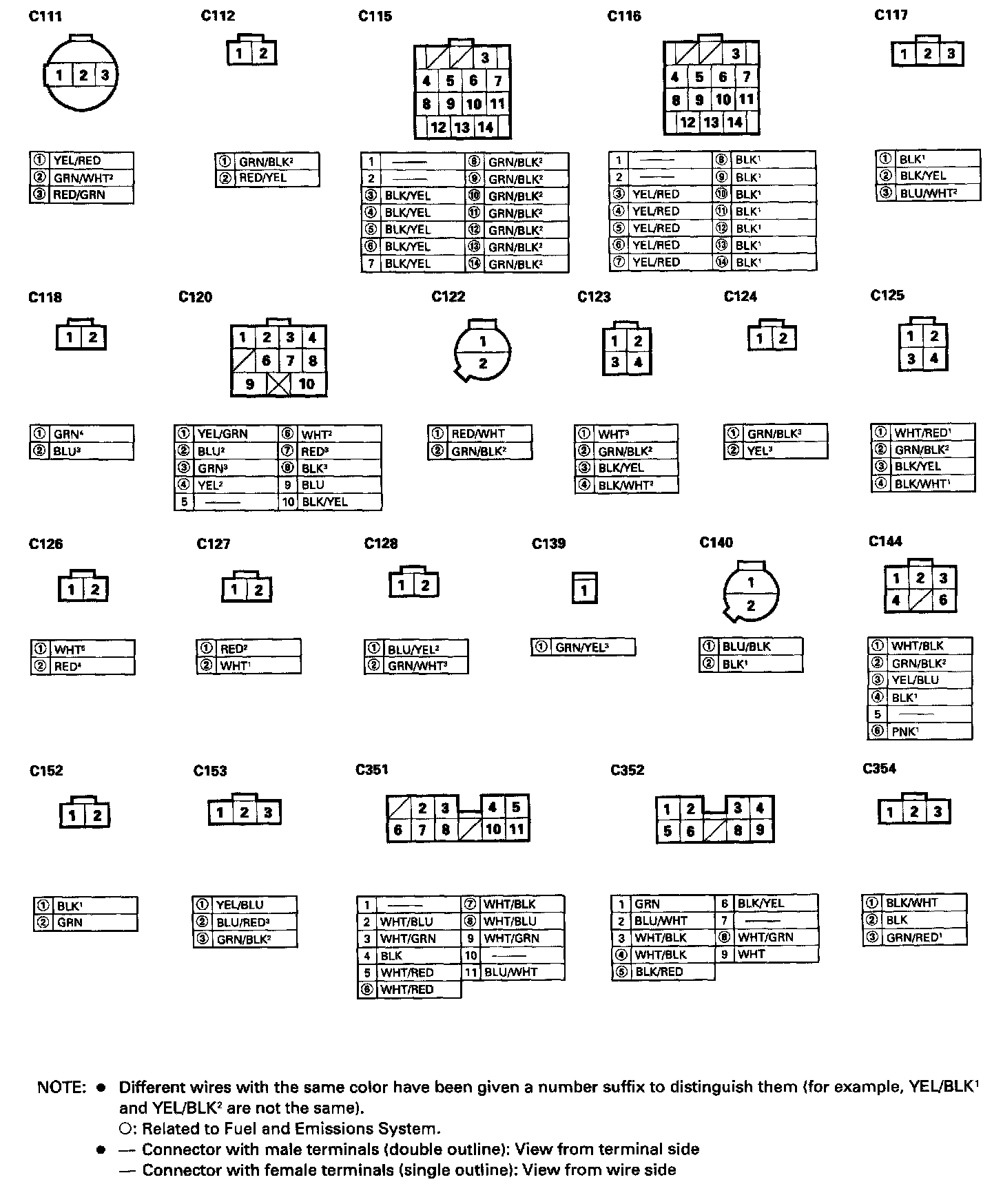

System Connectors [Engine Compartment] - Part 2:



System Connectors [Engine Compartment] - Part 3:



System Connectors [Engine Compartment] - Part 4:
