Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2000
>>
Civic GX Sedan L4-1.6L CNG
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

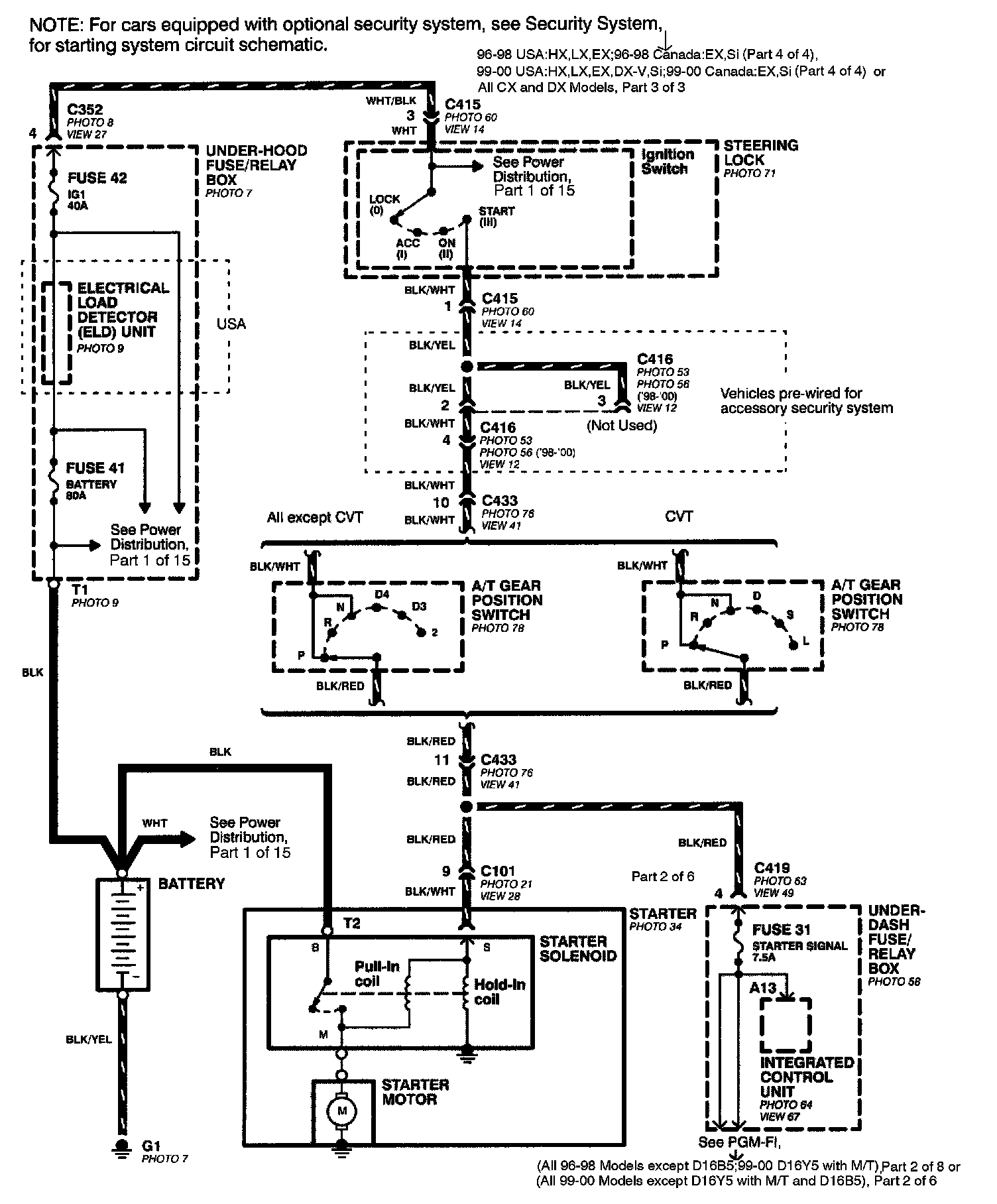

With Automatic Transmission (All Except D16B5):
With Automatic Transmission (D16B5):

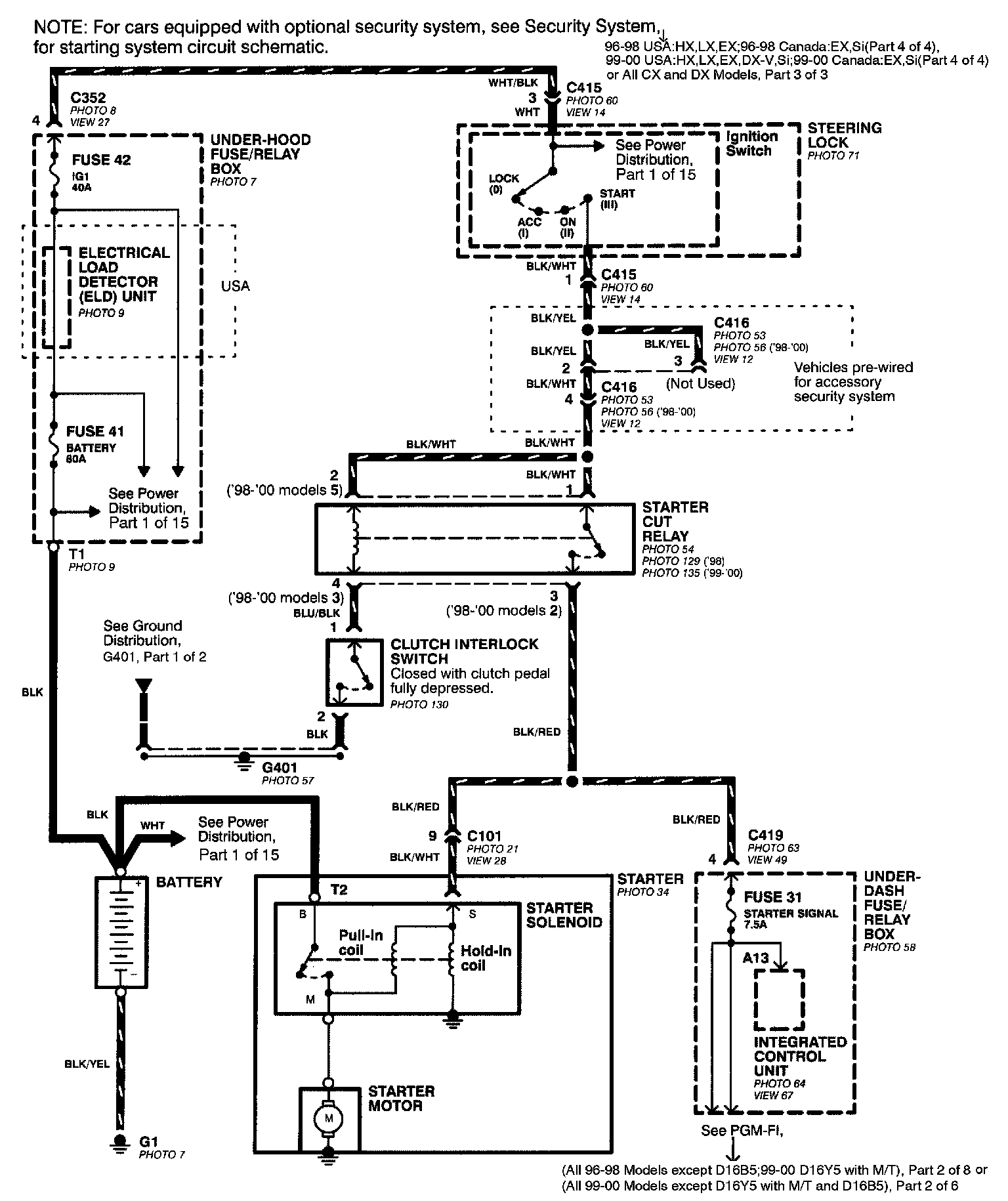

With Manual Transmission:
