ECM/PCM Electrical Connections

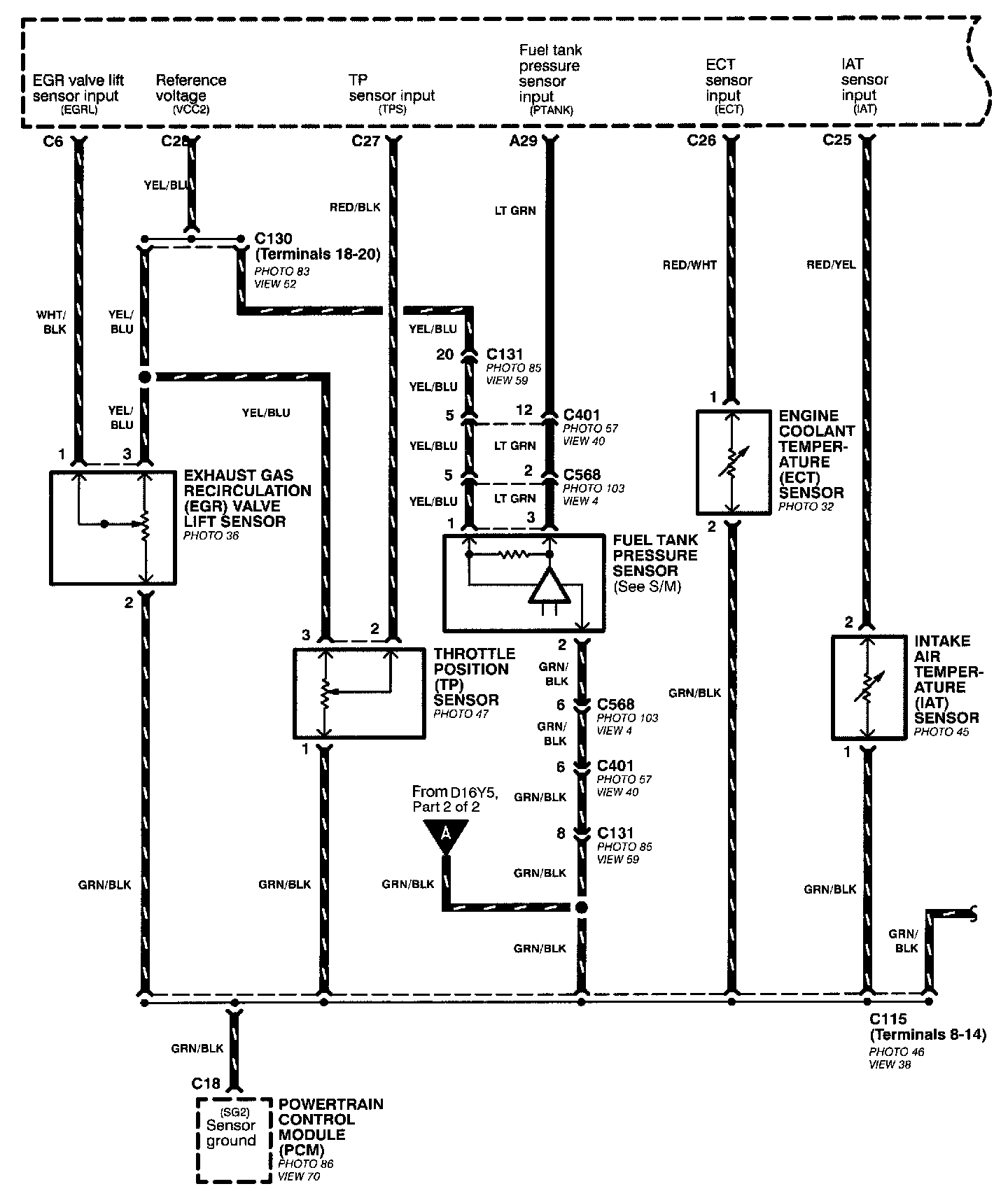

Part 1 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

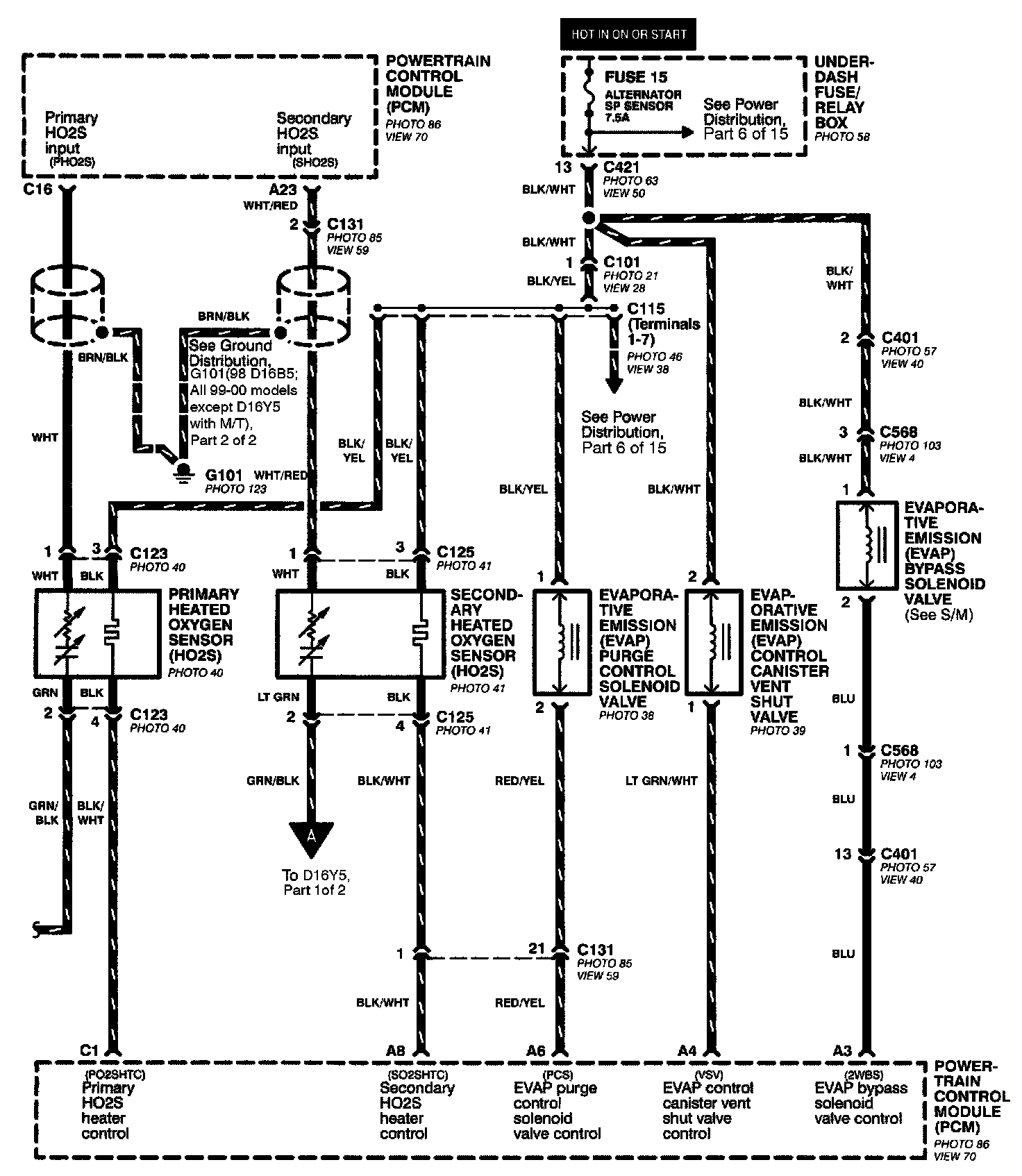

Part 2 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

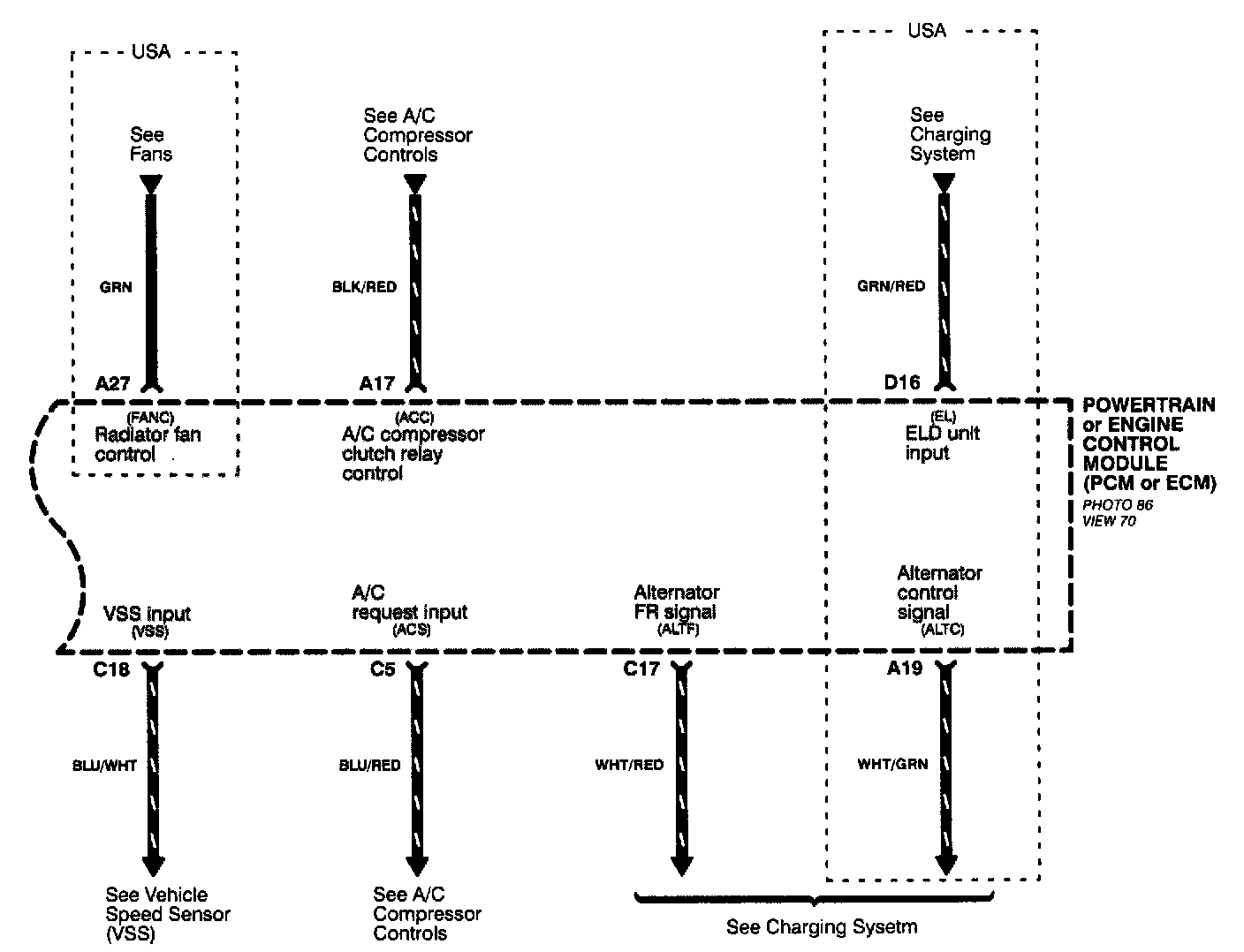

Part 3 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

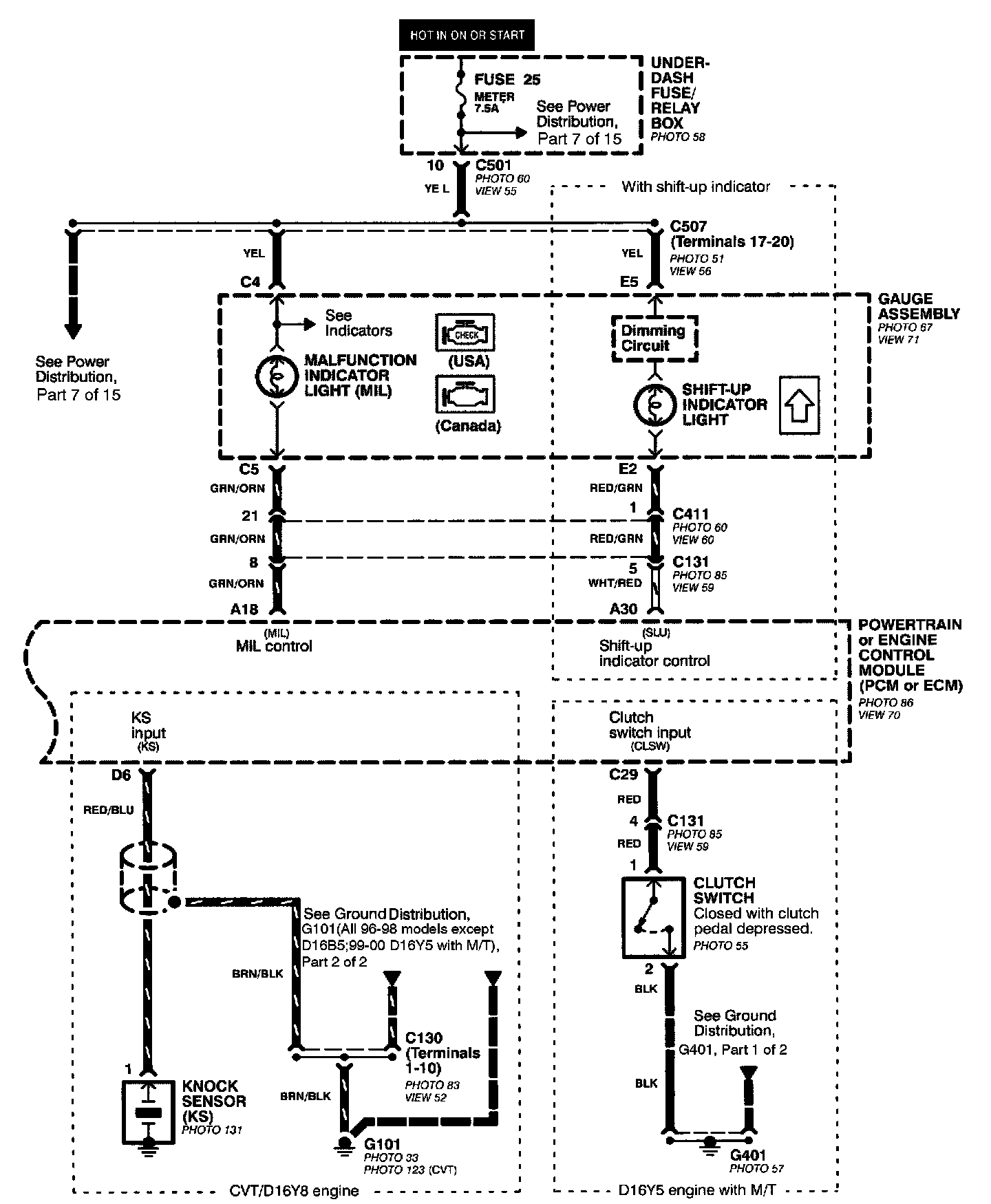

Part 4 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

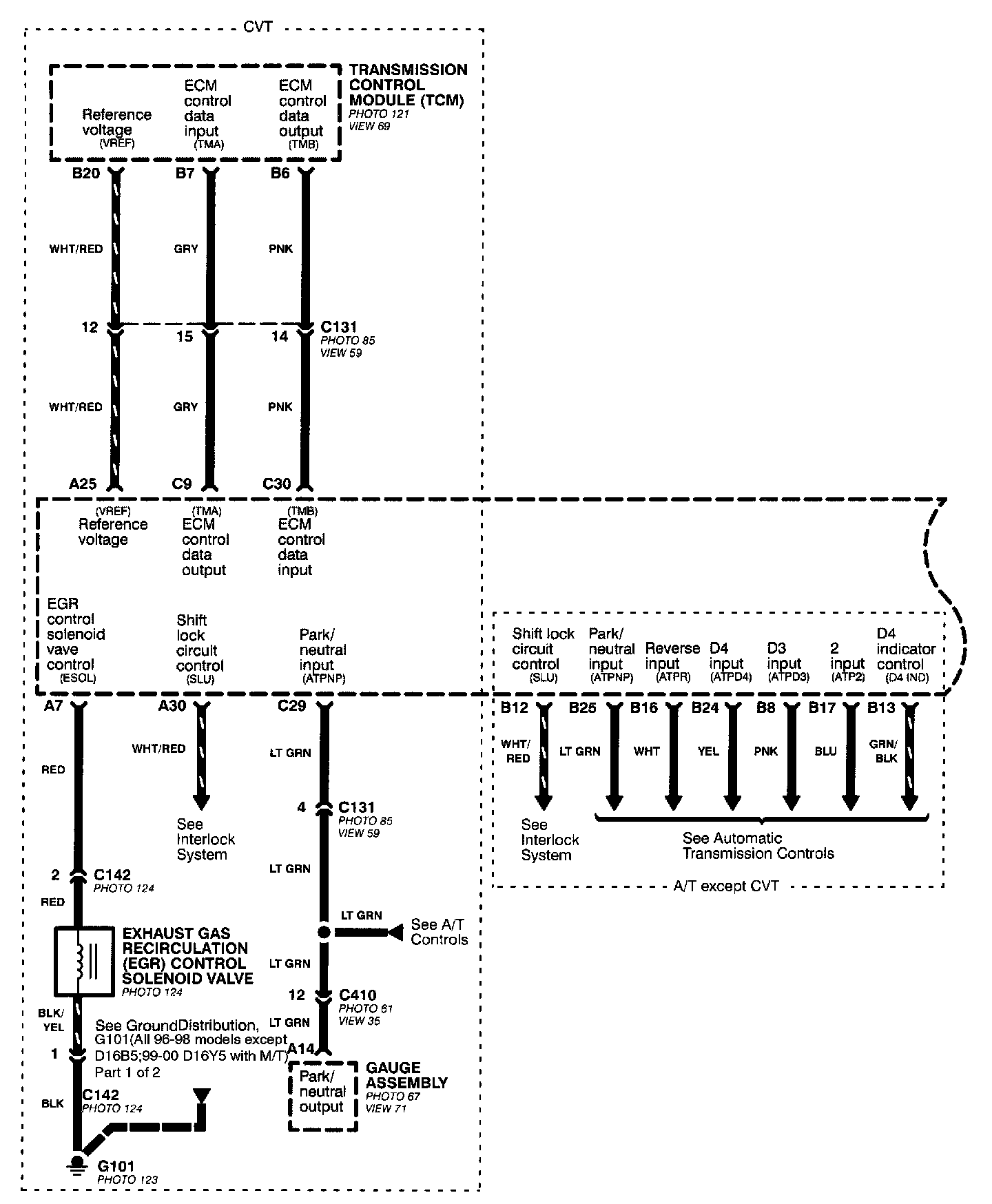

Part 5 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

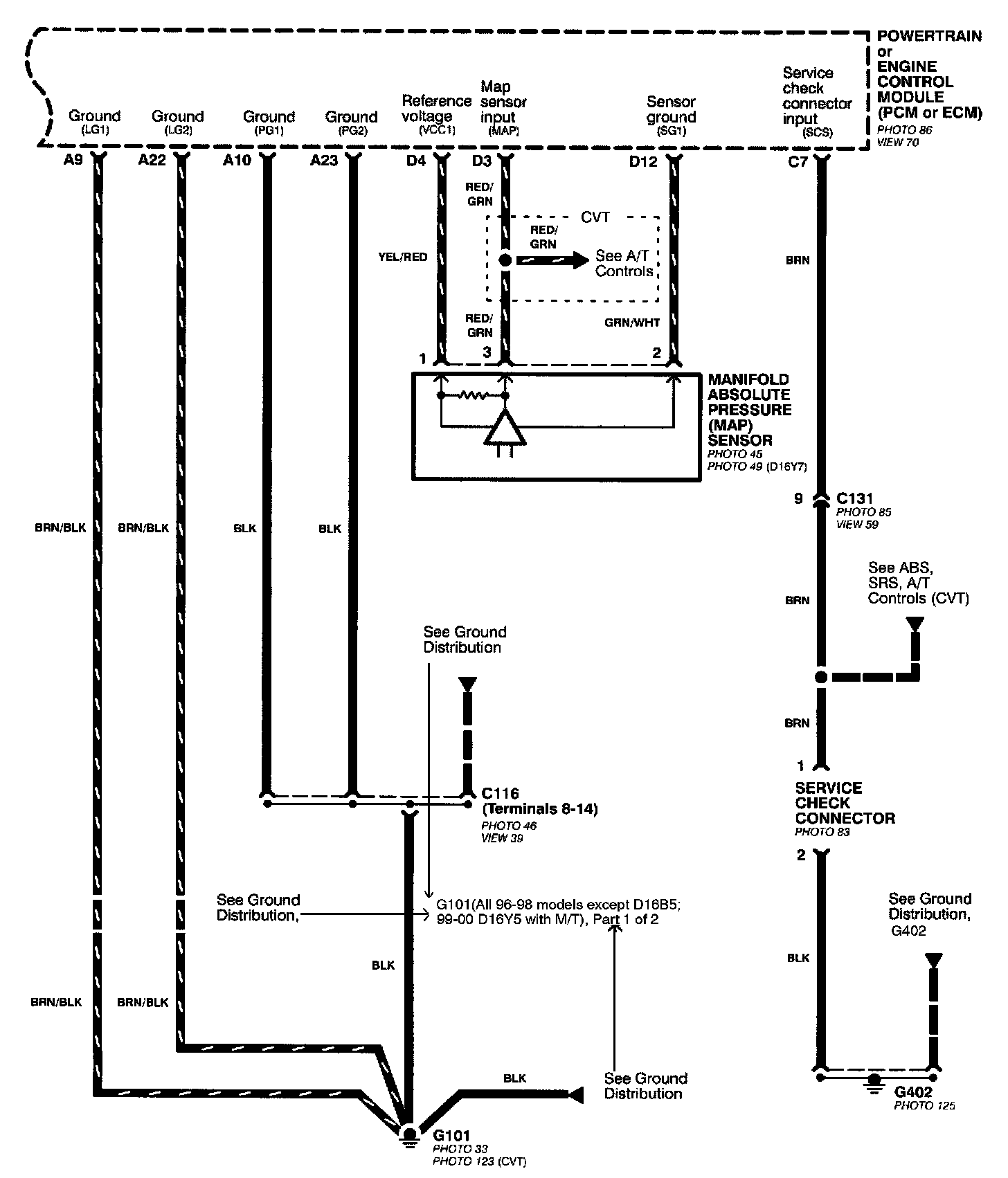

Part 6 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

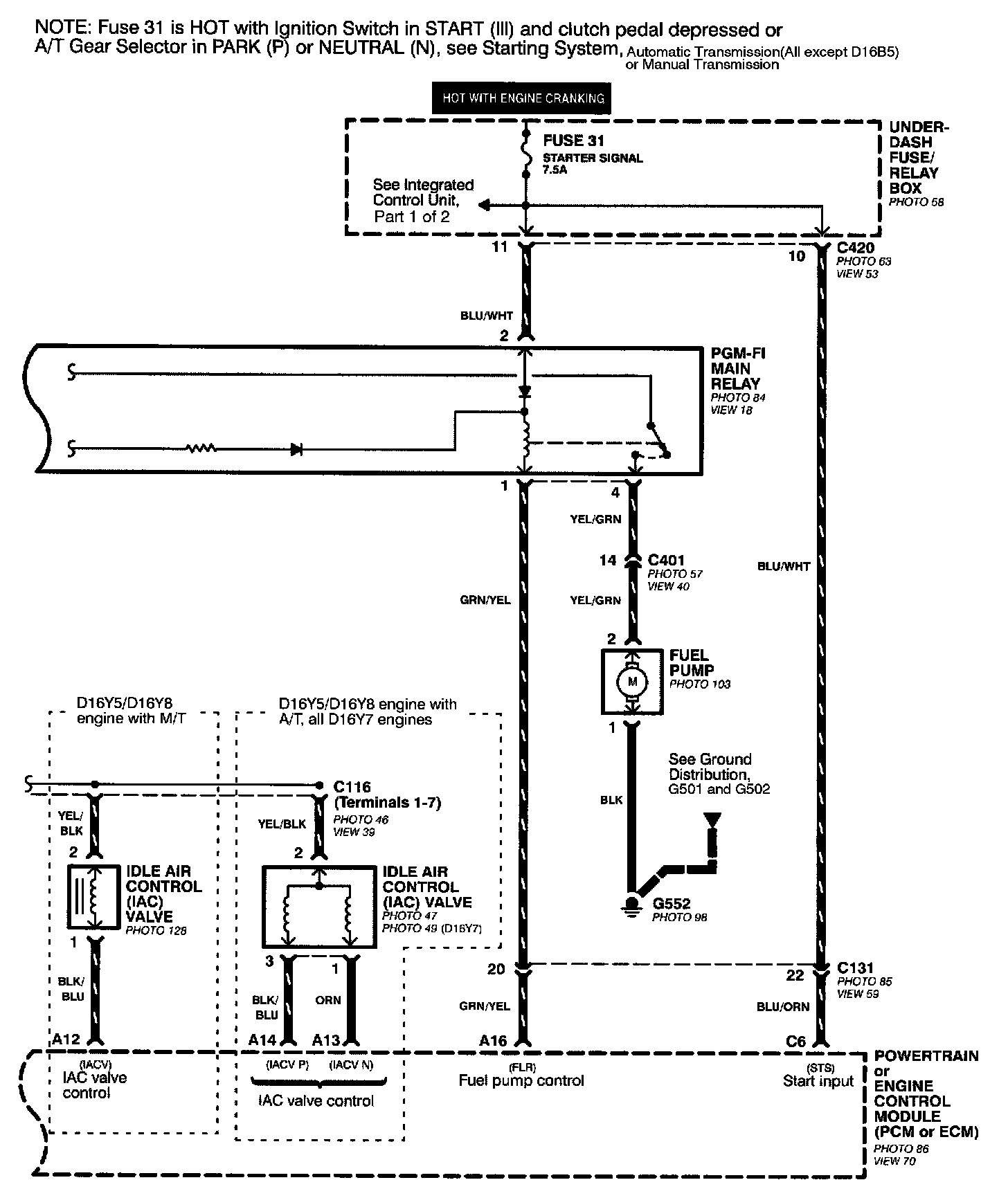

Part 7 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

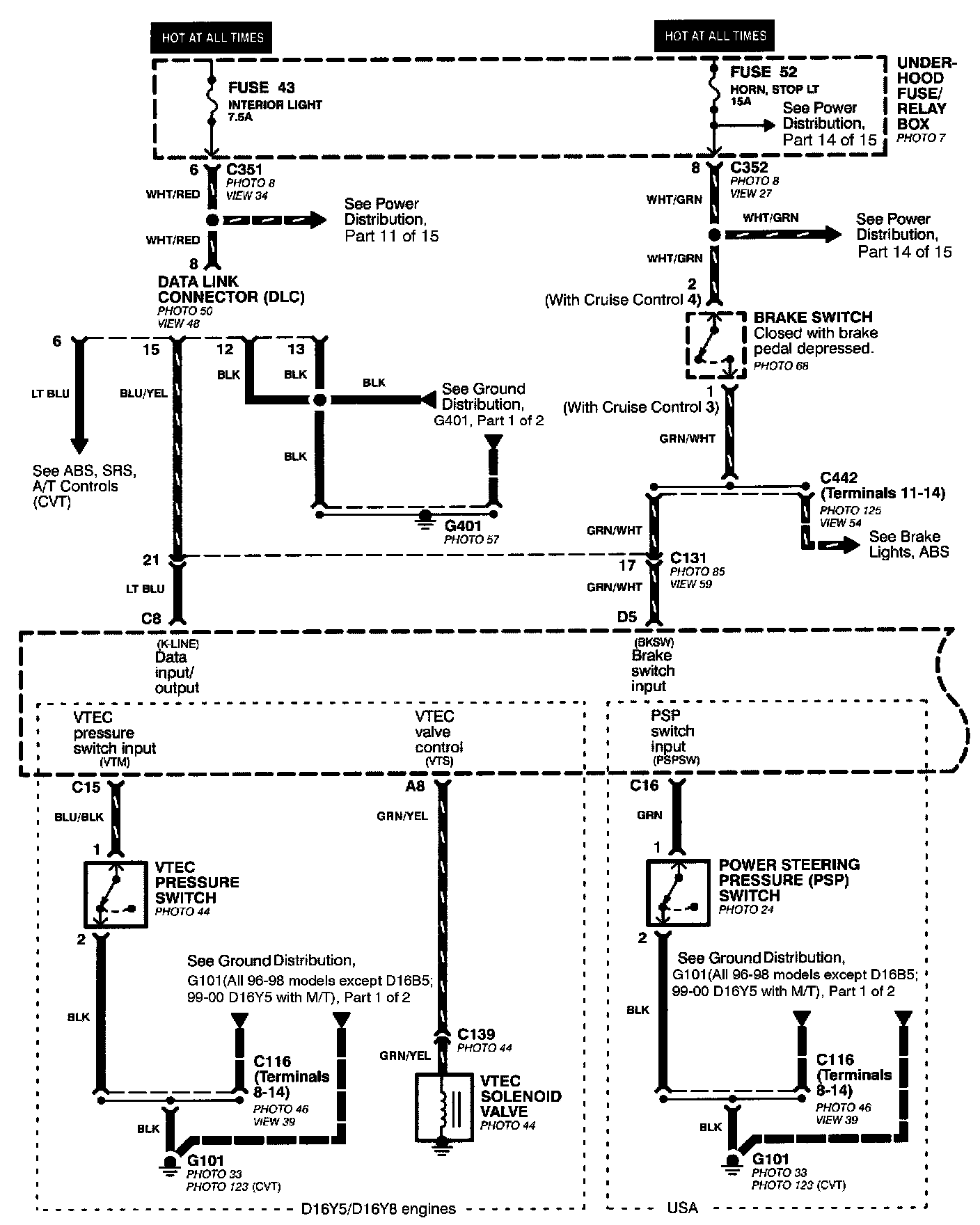

Part 8 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

Part 11 D16Y5:

PGM-FI D16Y5:

PGM-FI D16Y5:
