P1362

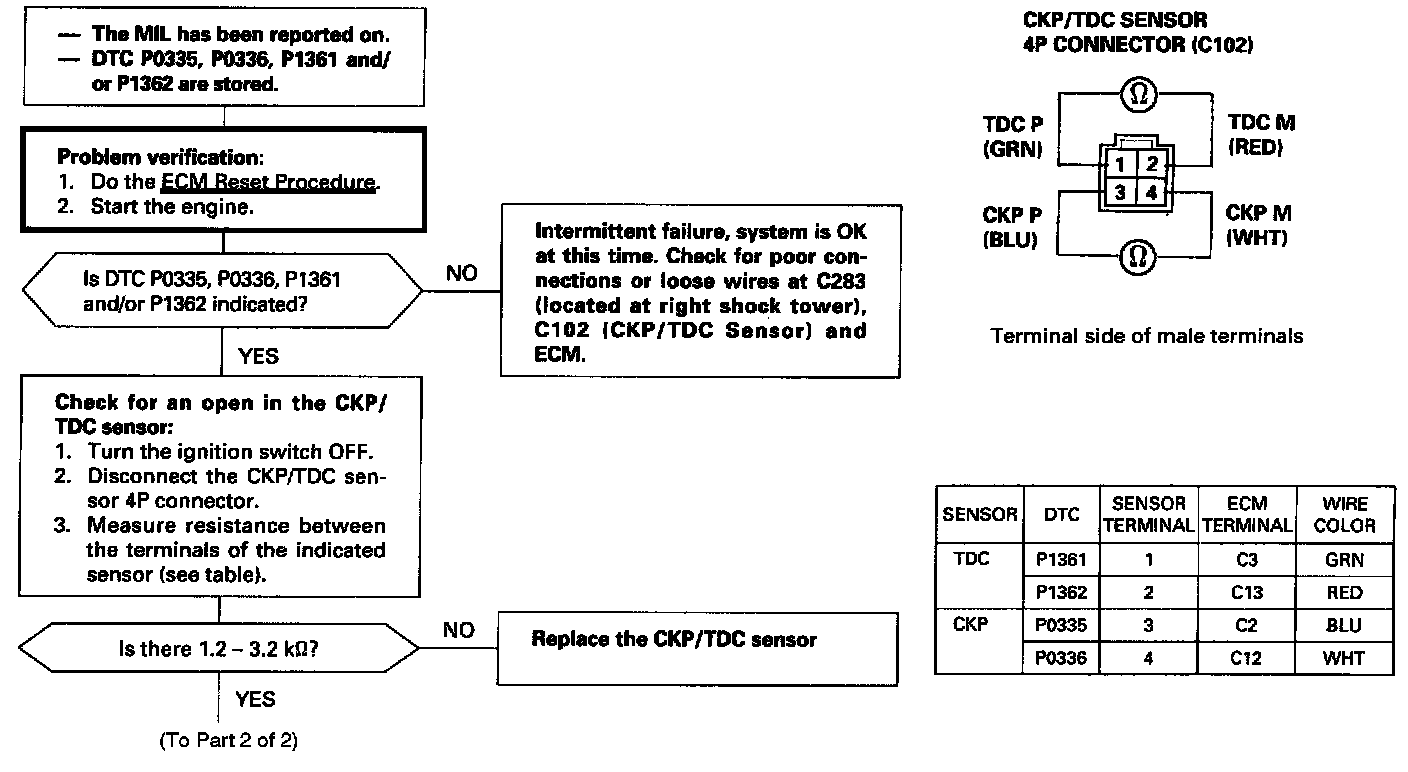

Part 1 Of 2:

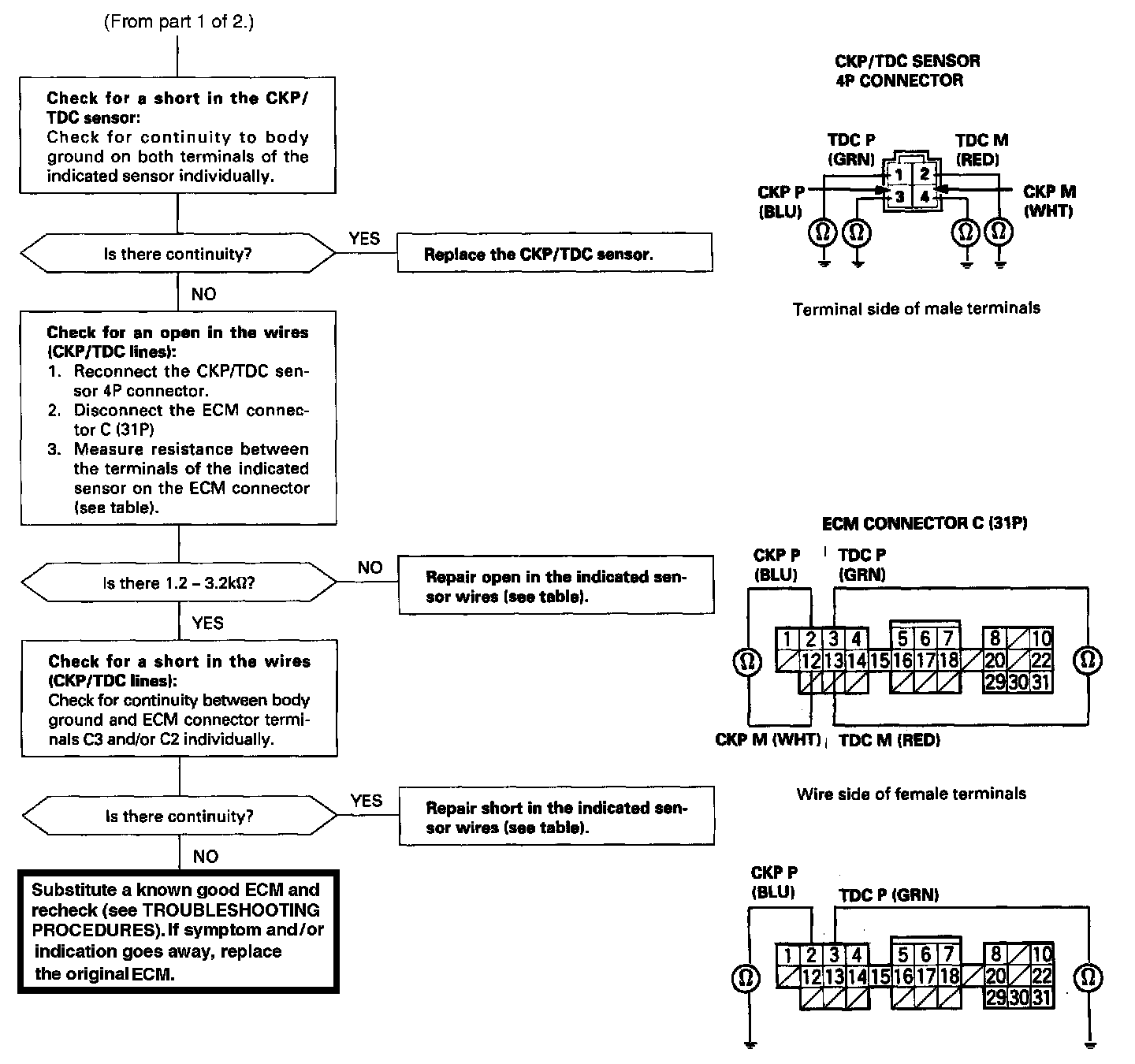

Part 2 Of 2:

The scan tool indicates Diagnostic Trouble Code (DTC) P1362: No signal in the Top Dead Center (TDC) sensor circuit.





Description

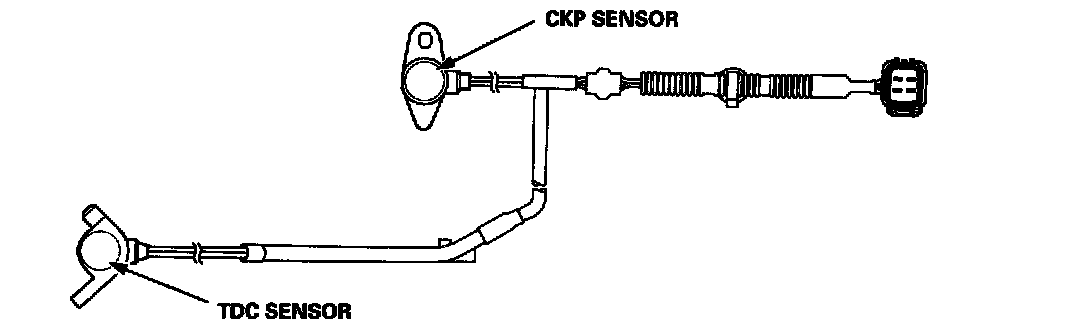

The CKP Sensor determines timing for fuel injection and ignition of each cylinder and also detects engine speed. The TDC Sensor determines ignition timing at start-up (cranking) and when crank angle is abnormal.

NOTE:
- If DTC P1359 is stored at the same time as DTC P0335, P0336, P1361 and/or P1362, troubleshoot DTC P1359 first, then troubleshoot those DTCs.
- If the circuit checks out OK electrically, check the timing belt and cam timing.
