P1457

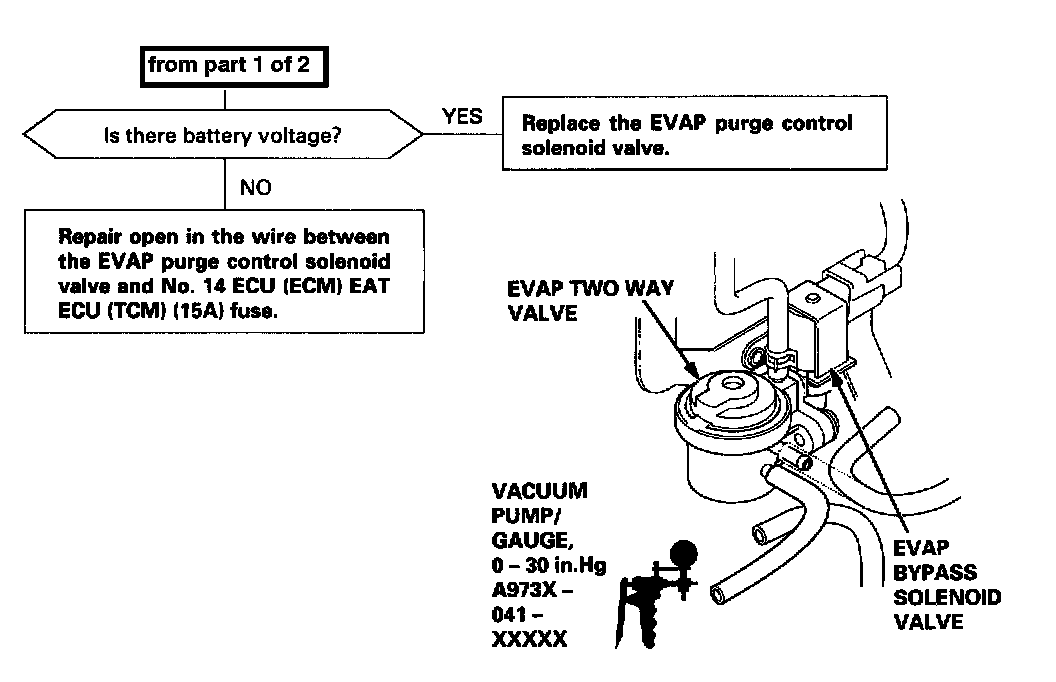

EVAP Purge Control Solenoid Valve Test / 1 Of 2:

EVAP Purge Control Solenoid Valve Test / 2 Of 2:

The scan tool indicates Diagnostic Trouble Code (DTC) P1457: Evaporative Emission (EVAP) control system leak detected (EVAP control canister system).

EVAP Bypass Solenoid Valve Test:

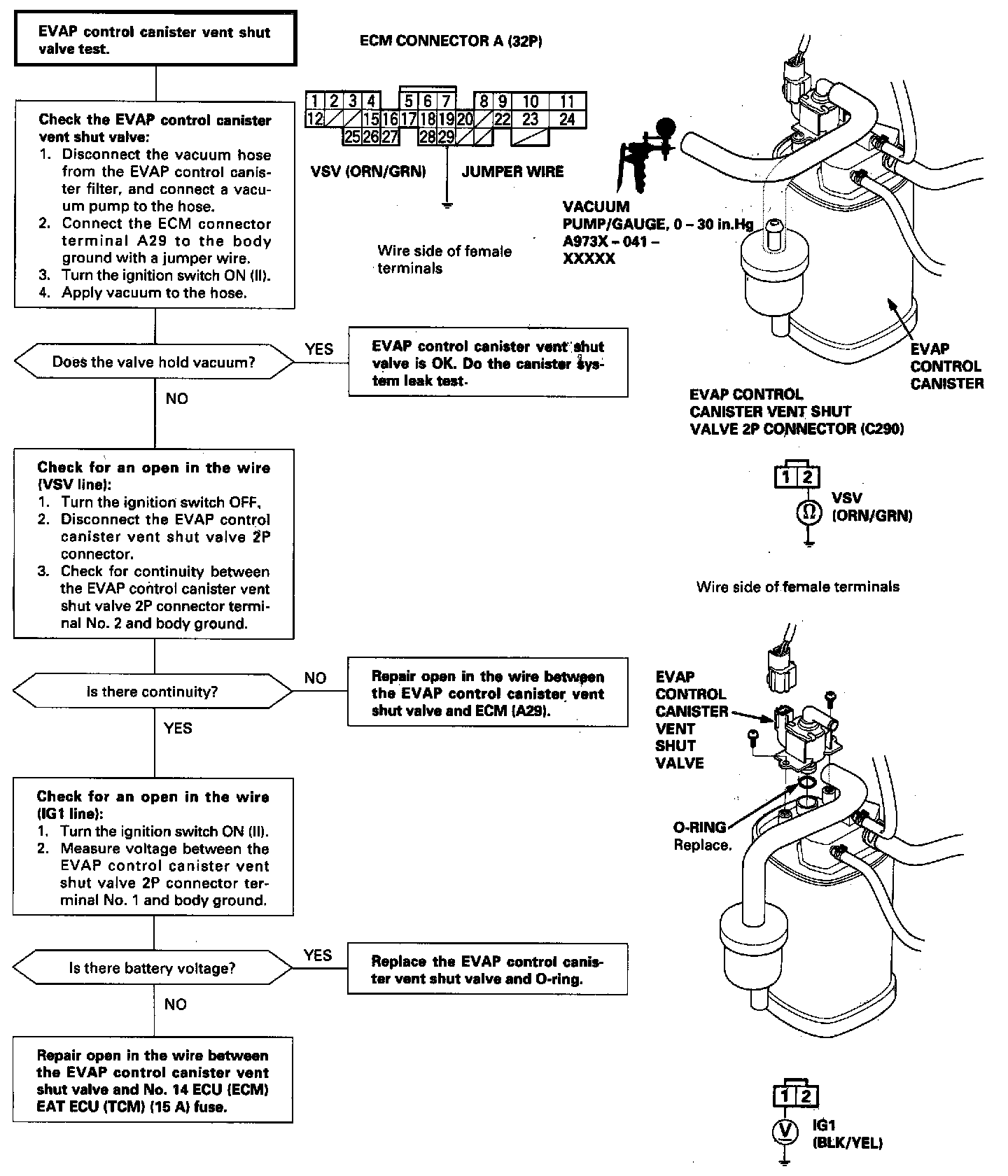

EVAP Control Canister Vent Shut Valve Test:

Canister System Leak Test / 1 Of 2:

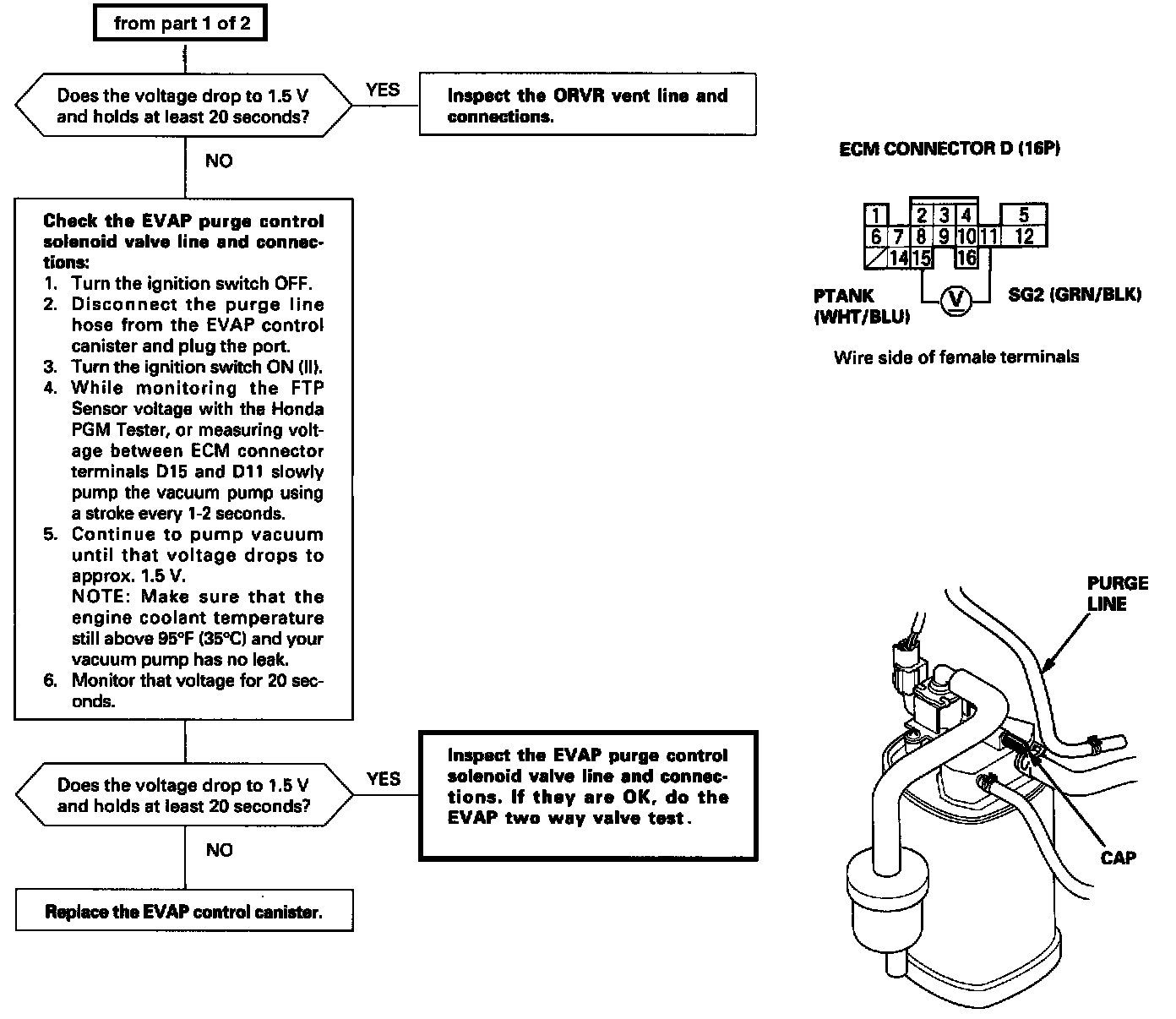

Canister System Leak Test / 2 Of 2:

Component Inspections
