Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2000
>>
Prelude Type-SH L4-2156cc 2.2L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

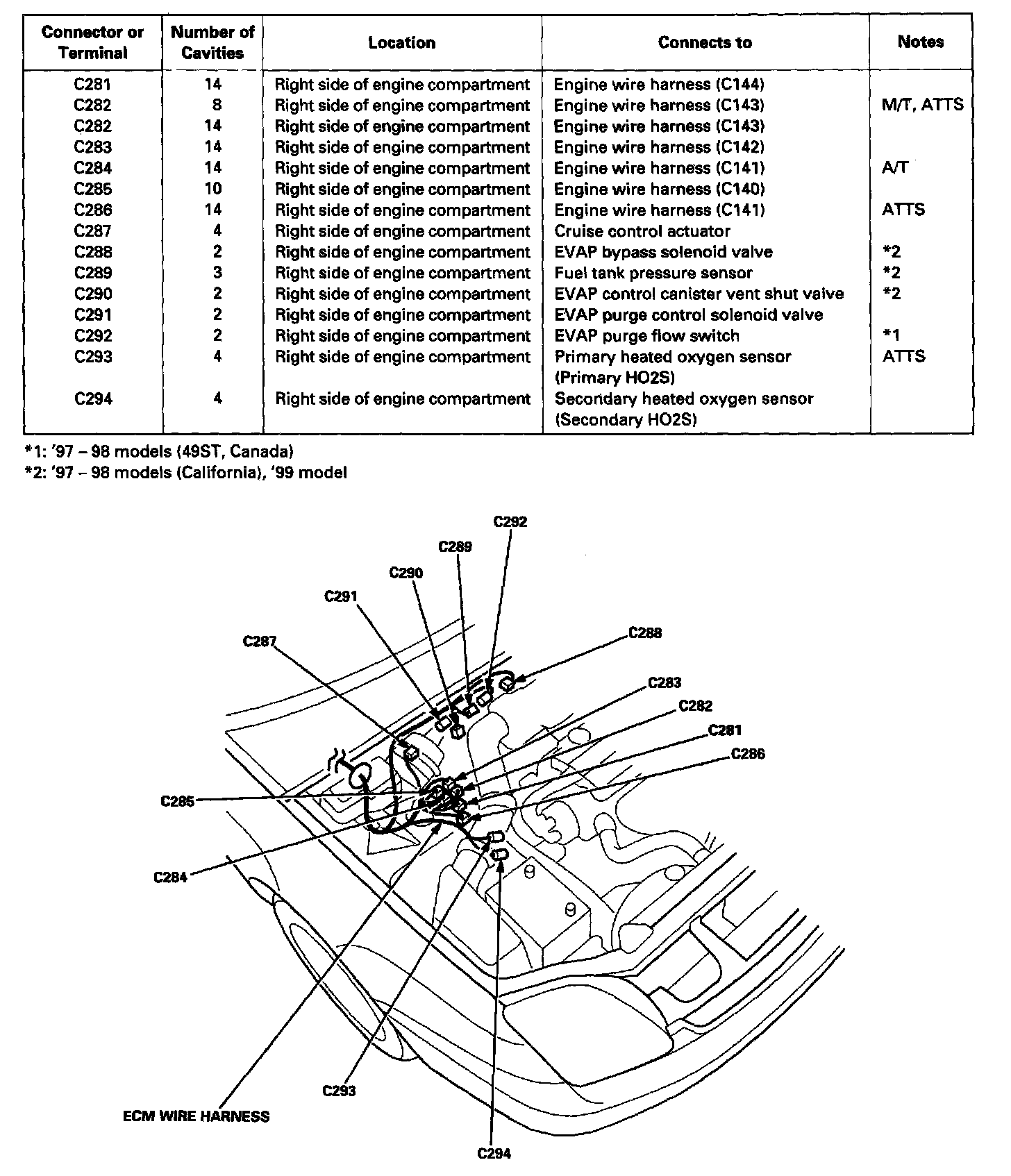

ECM Wire Harness (Engine Compartment Branch)
ECM Wire Harness (Engine Compartment Branch)
ECM Wire Harness (Engine Compartment Branch)
