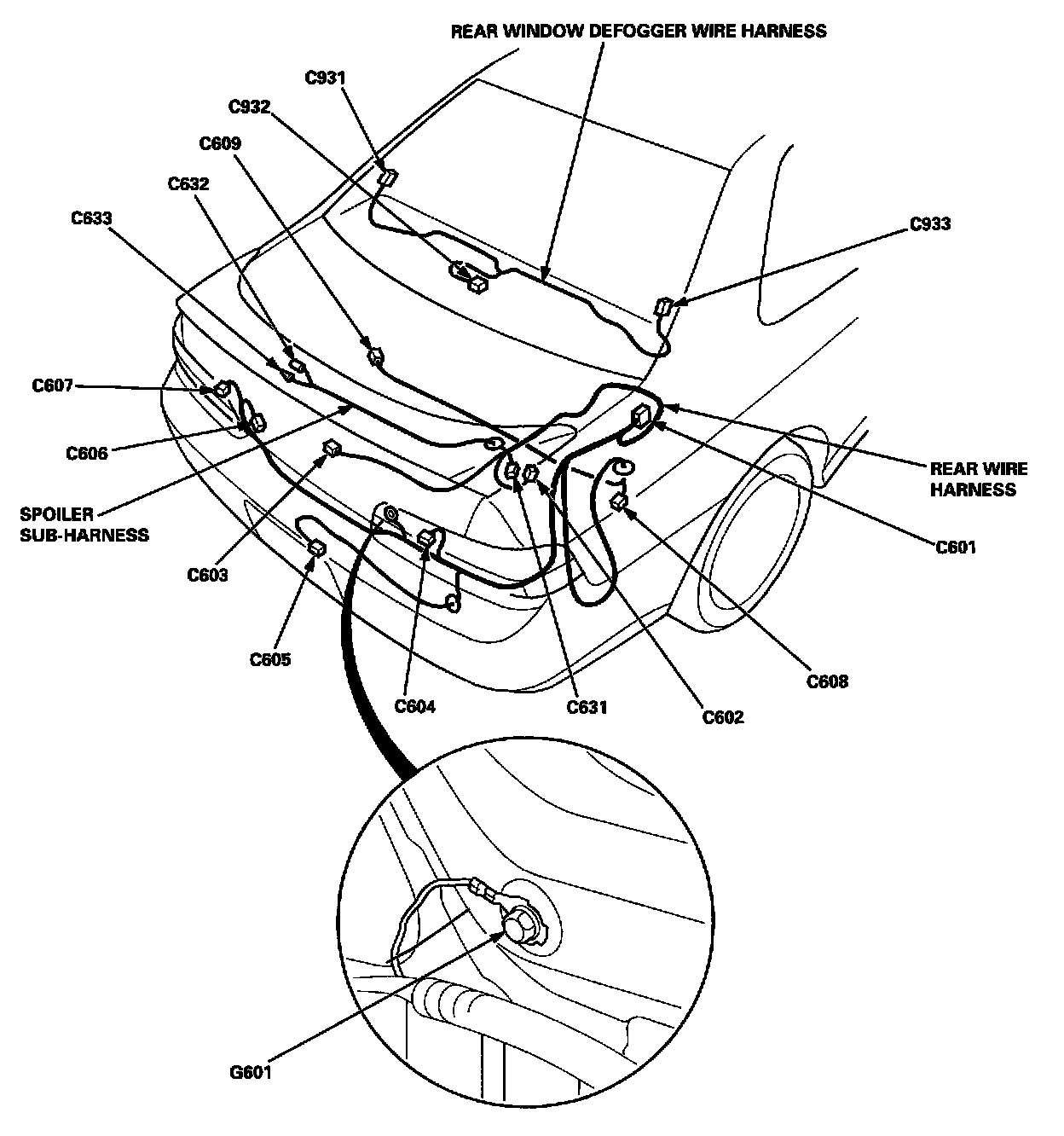

Rear, Spoiler Sub-Harness (Type SH) & Rr Win Def Wire Harness
Rear, Spoiler Sub-Harness (Type SH) & Rr Win Def Wire Harness

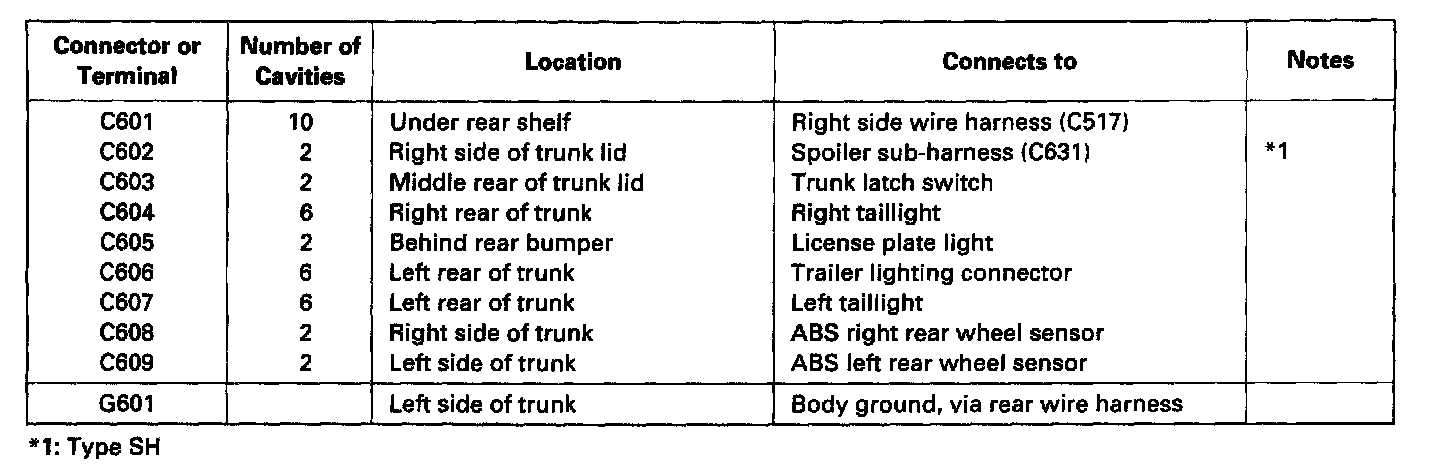

Rear Wire Harness
Spoiler Sub-Harness (Type SH)

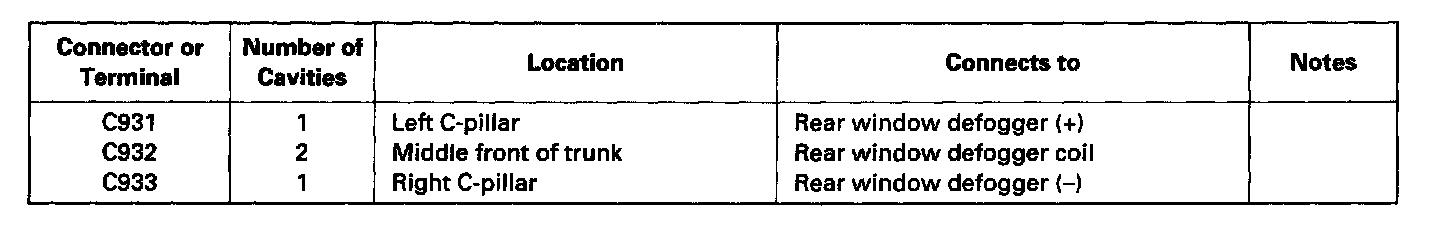

Rear Window Defogger Wire
