Prelude Type-SH L4-2156cc 2.2L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Starter, Battery Ground and Engine Ground Cables

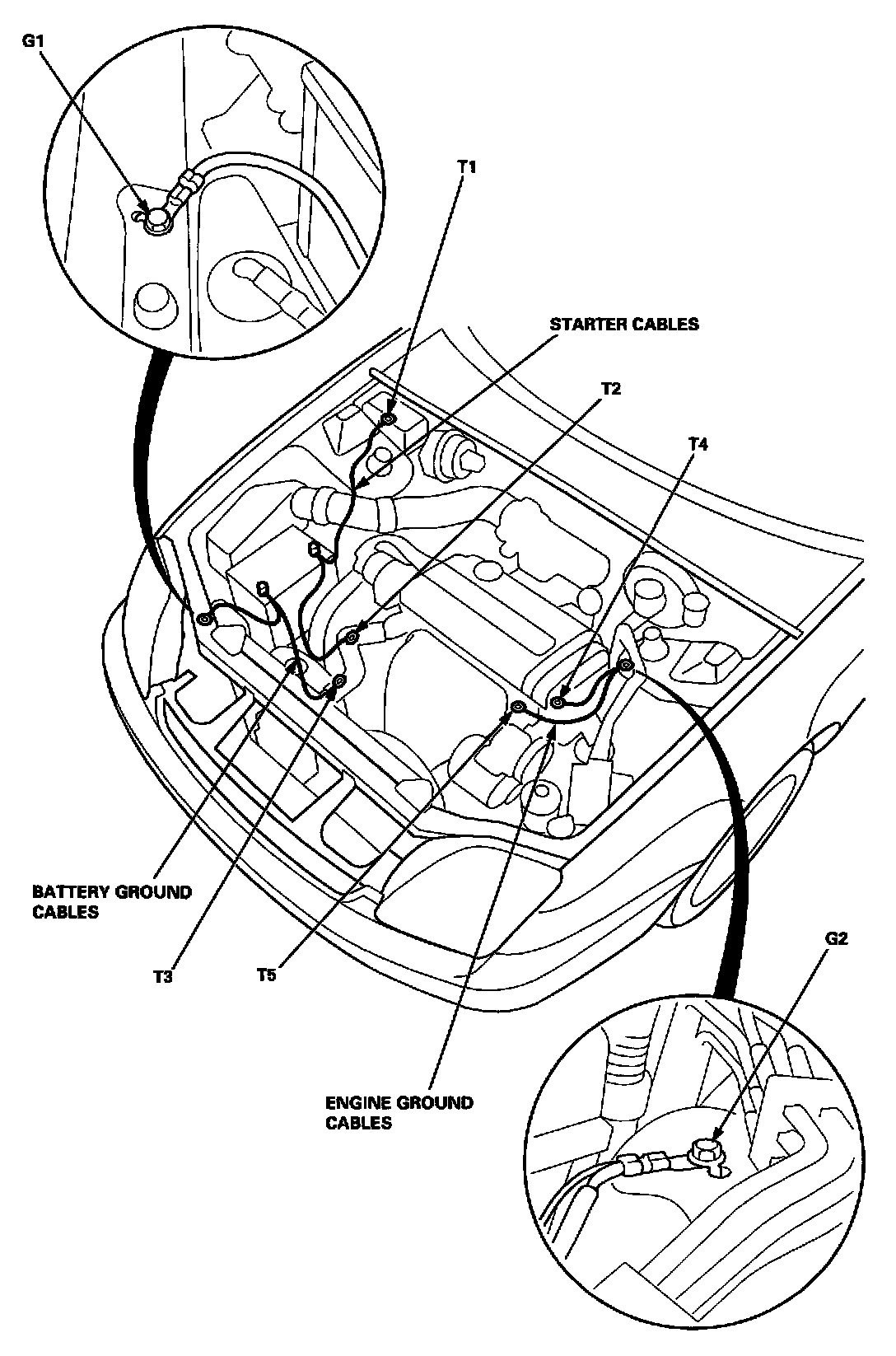

Starter, Battery Ground and Engine Ground Cables

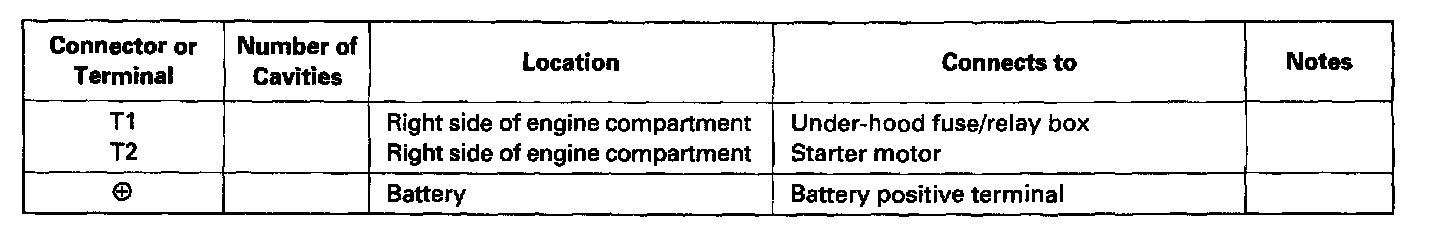

Starter Cables

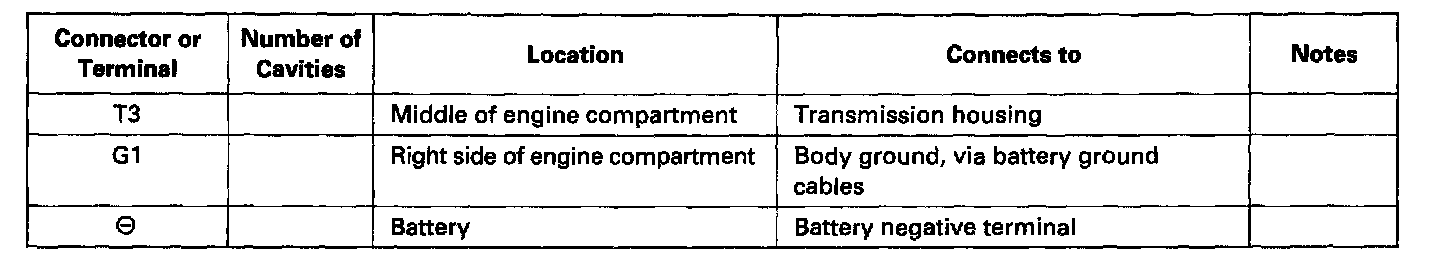

Battery Ground Cables

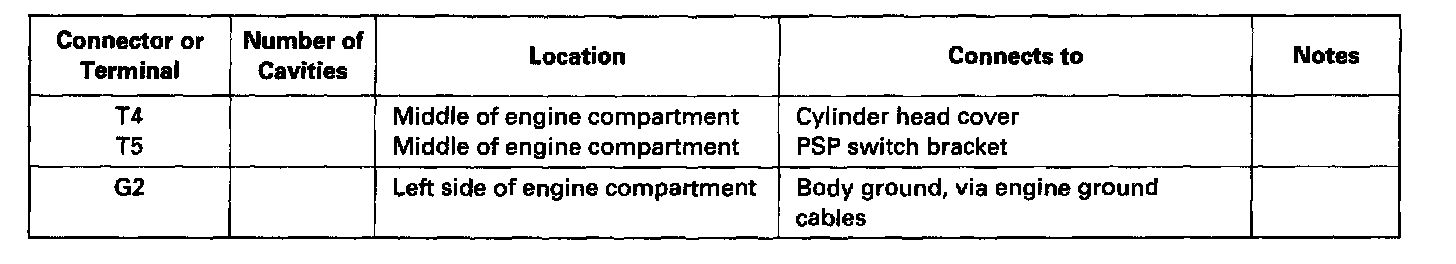

Engine Ground Cables
