Clock: Service and Repair

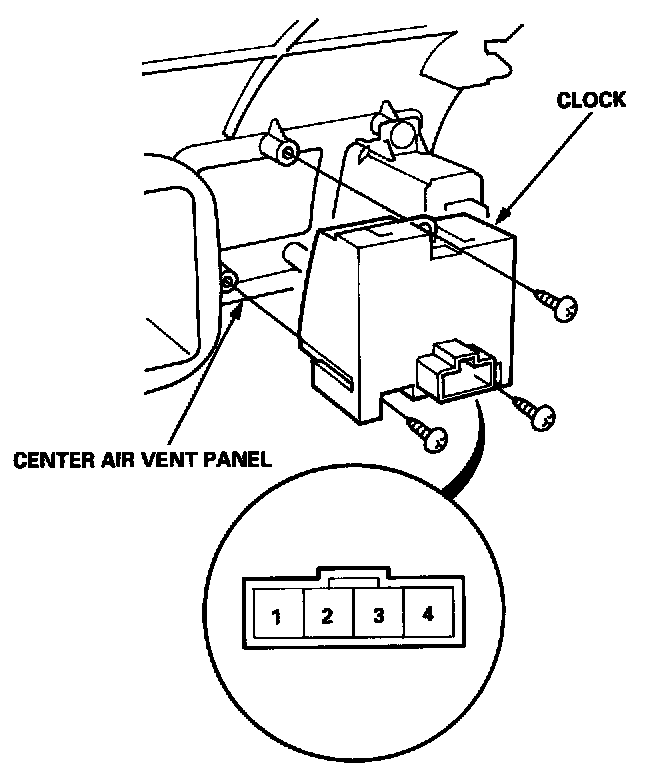

1. Remove the center air vent panel.
2. Disconnect the connectors from the hazard warning switch and the clock.




3. Remove three screws and the clock from the center air vent panel.

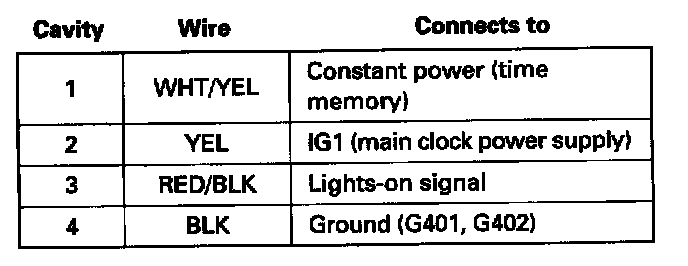

Terminals
