Instrument Cluster / Carrier: Service and Repair

1. Remove the instrument panel.

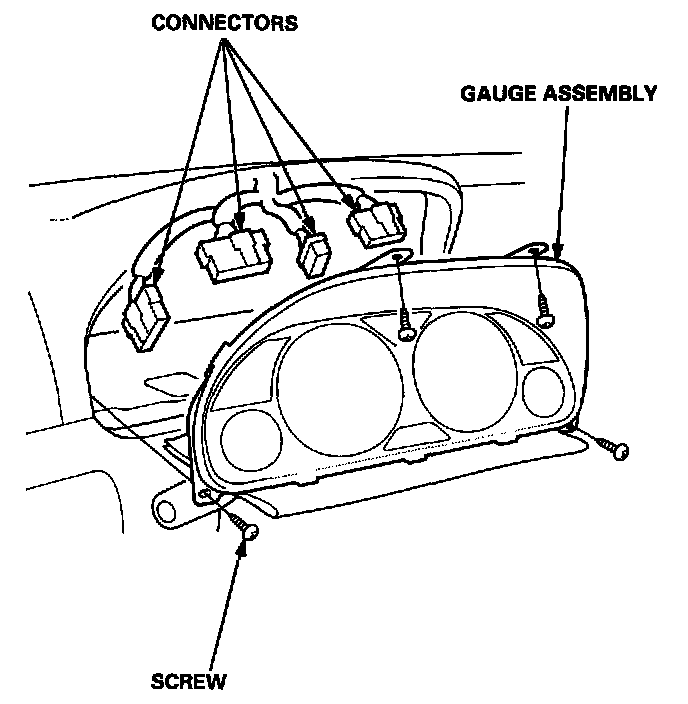

2. Remove the screws from the gauge assembly, and spread a protective cloth on the upper column cover.




3. Disconnect the connectors, and remove the gauge assembly.
4. Install in the reverse order of removal.
