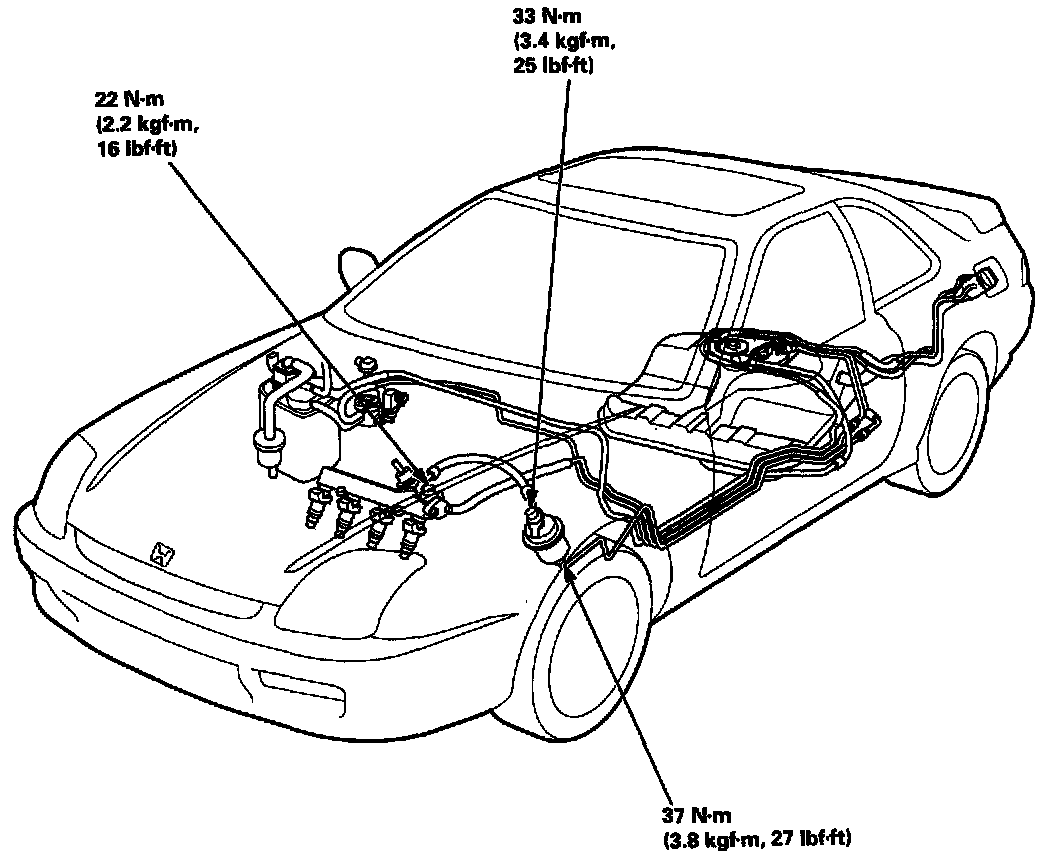

Fuel Delivery and Air Induction: Locations

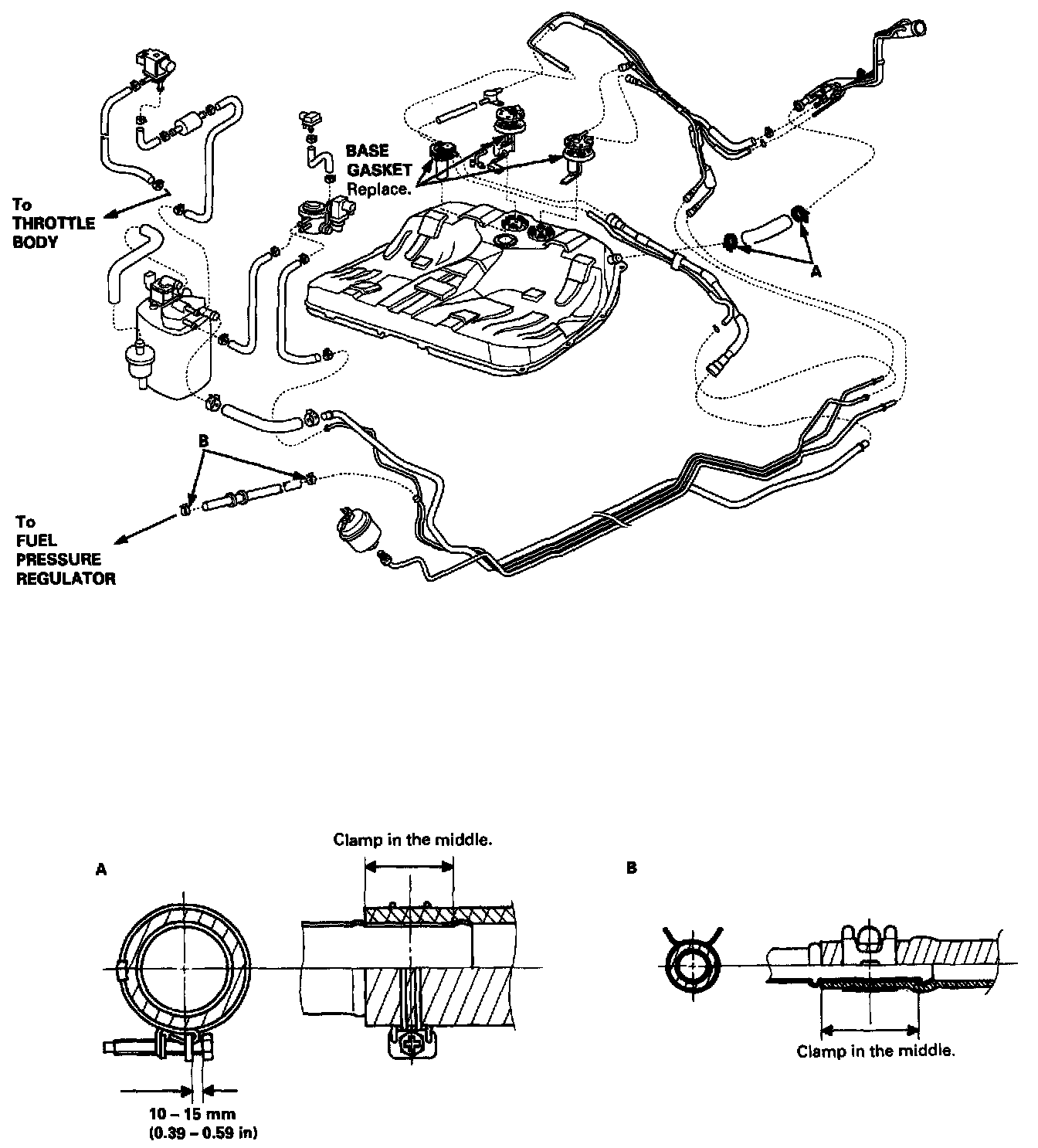

NOTE: Check fuel system lines, hoses, fuel filter and other components for damage, leaks or deterioration, and replace if necessary.





NOTE: Check all hose clamps and retighten if necessary.
