Oxygen Sensor - MIL ON/DTC P0133 Set

01-093

October 30, 2001

Applies To:
1998-01 Prelude - ALL

Prelude: MIL Comes On With DTC P0133

SYMPTOM

The MIL is on with DTC P0133
(primary heated oxygen sensor slow response) stored.

PROBABLE CAUSE

The primary heated oxygen sensor malfunctions.

CORRECTIVE ACTION

Replace the primary heated oxygen sensor.





PARTS INFORMATION





WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Failed Part: P/N 36531-P5M-014
Prelude H/C 6015903

Failed Part: P/N 36531-P5P-014
Type-SH H/C 6015911

Defect Code: 072

Contention Code: B03

Skill Level: Repair Technician

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

REPAIR PROCEDURE

1. Confirm the DTC with the PGM Tester.

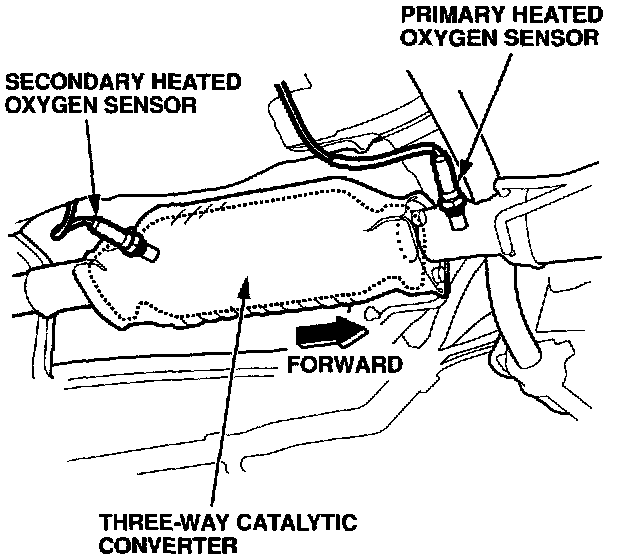

2. Disconnect the primary heated oxygen sensor 4P connector.

3. Remove and replace the oxygen sensor with the appropriate part.

4. Reconnect the oxygen sensor 4P connector.

5. Use the PGM Tester to clear any DTCs.
