Rear Suspension - Clunk Noise on Bumps

00-090

November 28, 2000

Applies To:
1997 - 2001 Prelude - ALL

Rear Suspension Clunks
(Replaces 99-084, Rear Suspension Clunks, dated November 9, 1999)

SYMPTOM

When driving over bumps, you hear a clunk noise from the rear suspension.

PROBABLE CAUSE

The upper spacers in the rear damper assemblies compress over time, causing excessive clearance.

CORRECTIVE ACTION

Replace the upper collars in both rear damper assemblies.

PARTS INFORMATION

Damper Collar (two required):
P/N 52728-S30-004, H/C 6655195

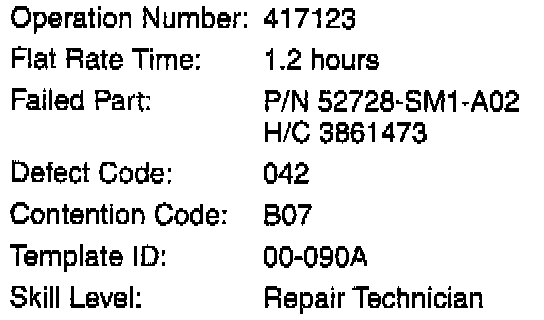

WARRANTY CLAIM INFORMATION





In warranty:
The normal warranty applies.

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

REPAIR PROCEDURE

1. Remove the rear damper assembly from the vehicle. Refer to section 18 of the service manual.

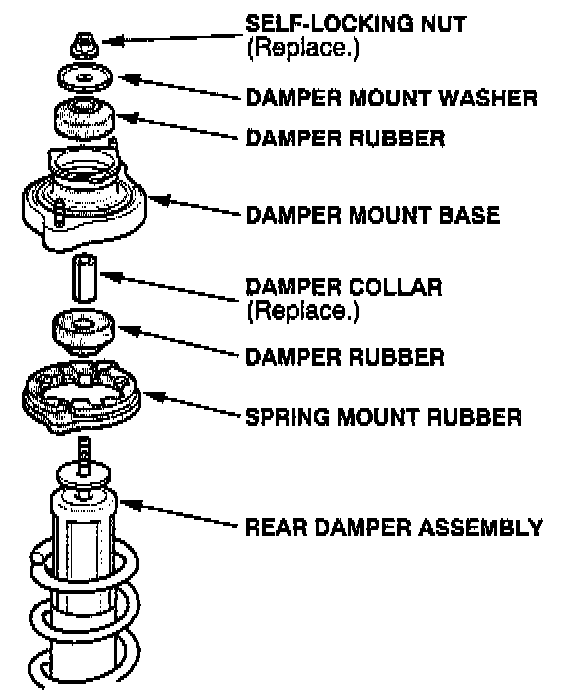

2. Disassemble the rear damper assembly.

3. Reassemble the damper assembly with a new damper collar.

4. Install the damper assembly in the vehicle.

5. Repeat this procedure on the other rear damper assembly.
