Relay and Control Units

Relay And Control Unit Locations - Engine Compartment:

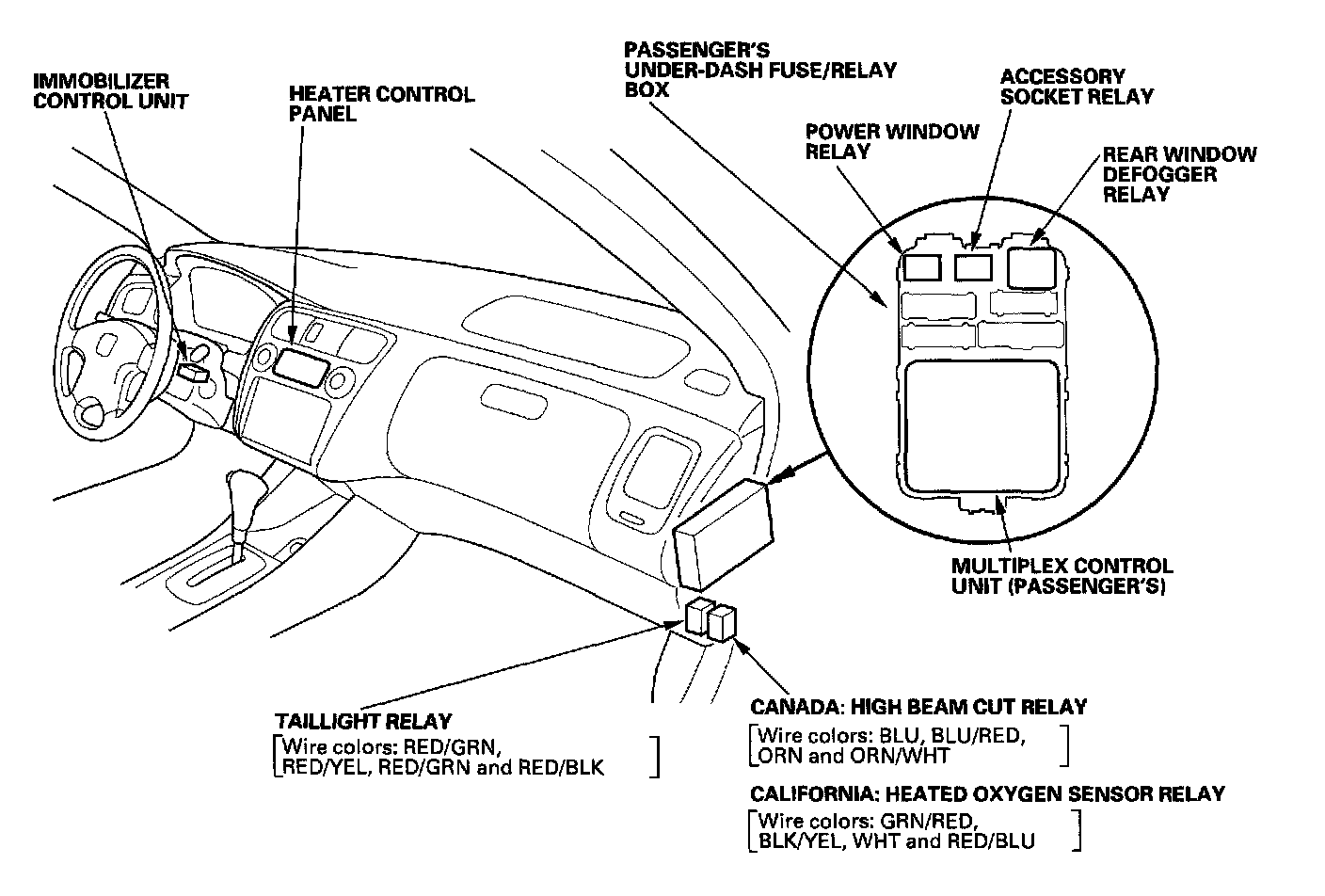

Relay And Control Unit Locations - Dashboard (Part 1):

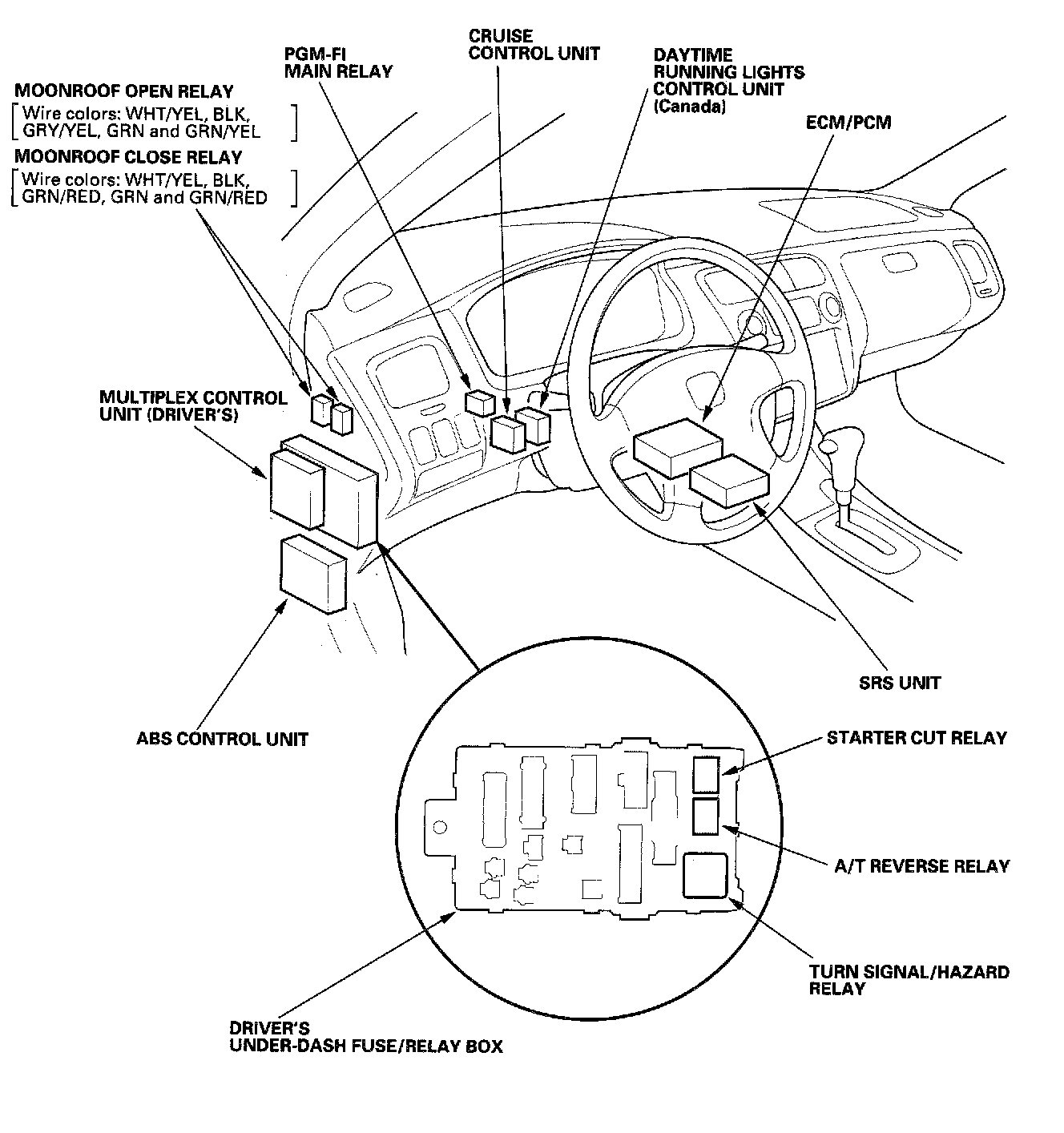

Relay And Control Unit Locations - Dashboard (Part 2):

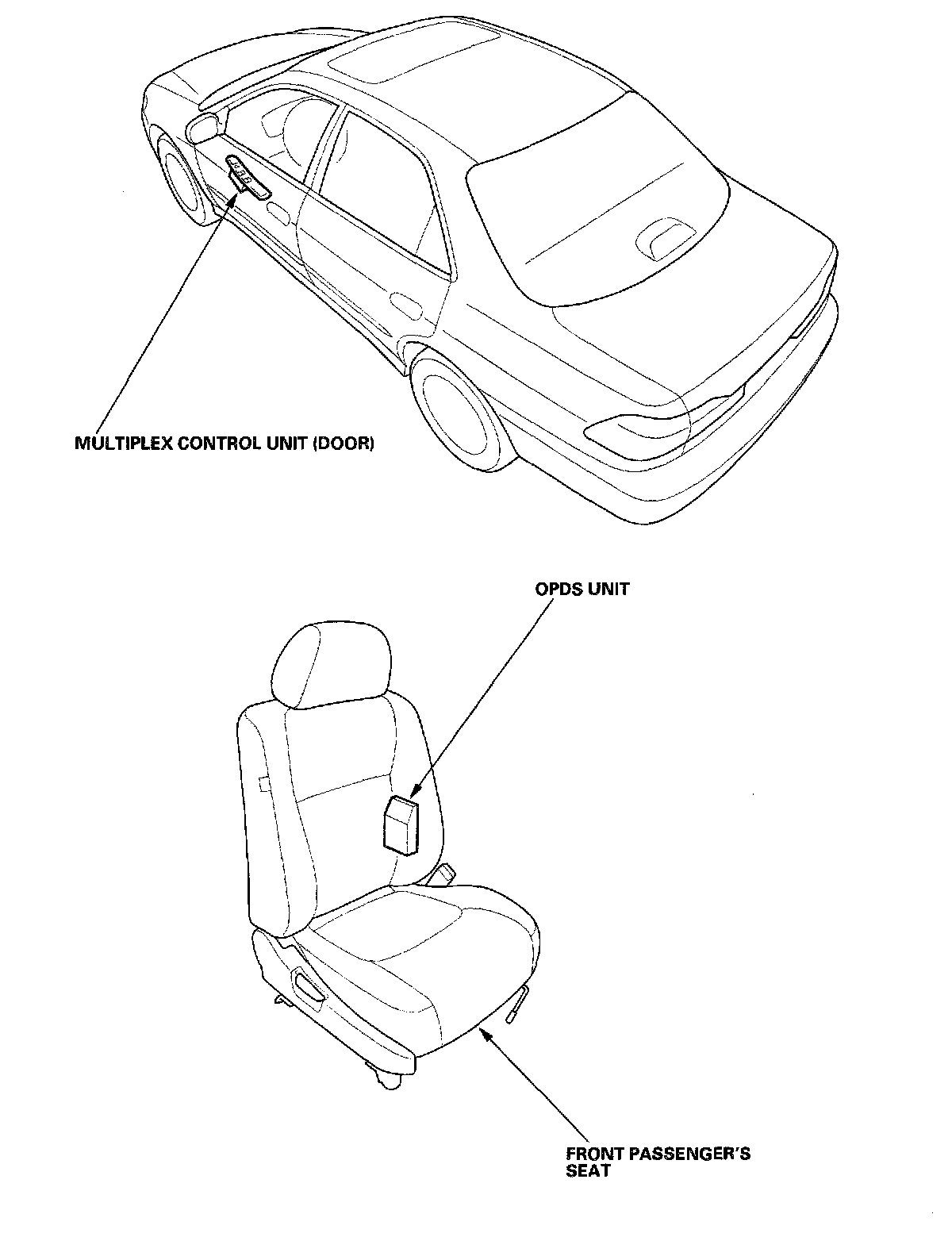

Relay And Control Unit Locations - Door And Seat:
