ECM/PCM Circuit Diagram

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Part 7:

Part 8:

Part 9:

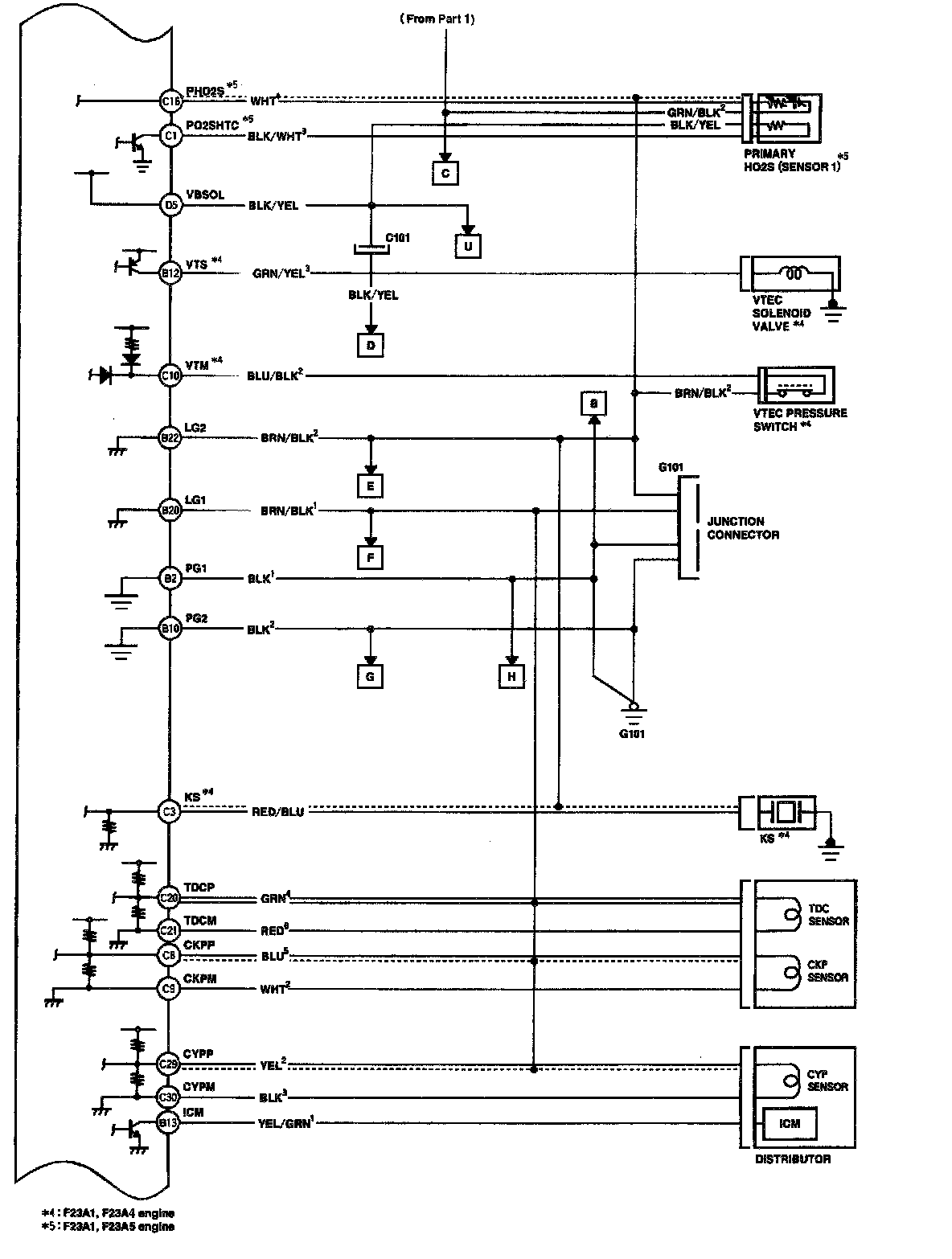

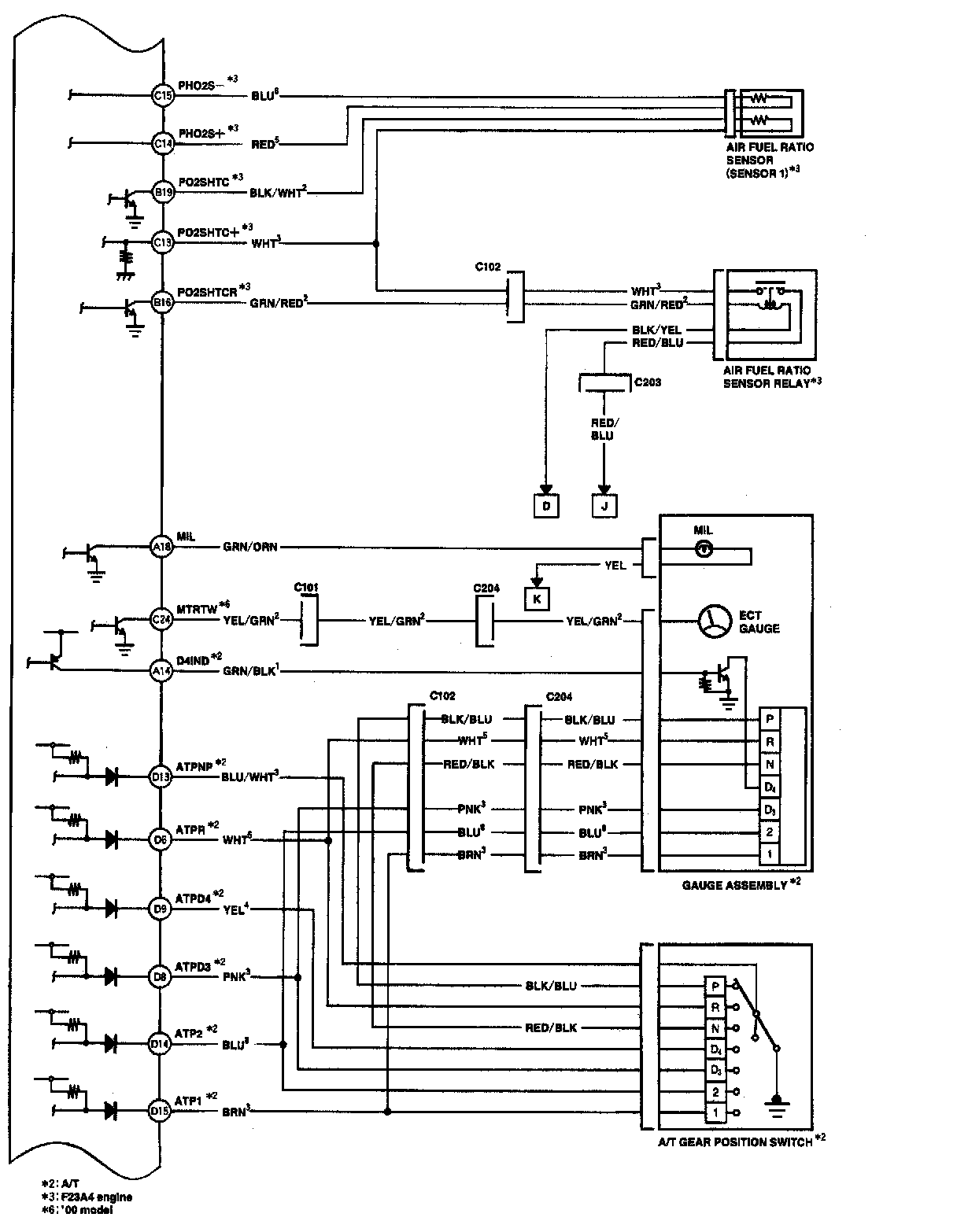

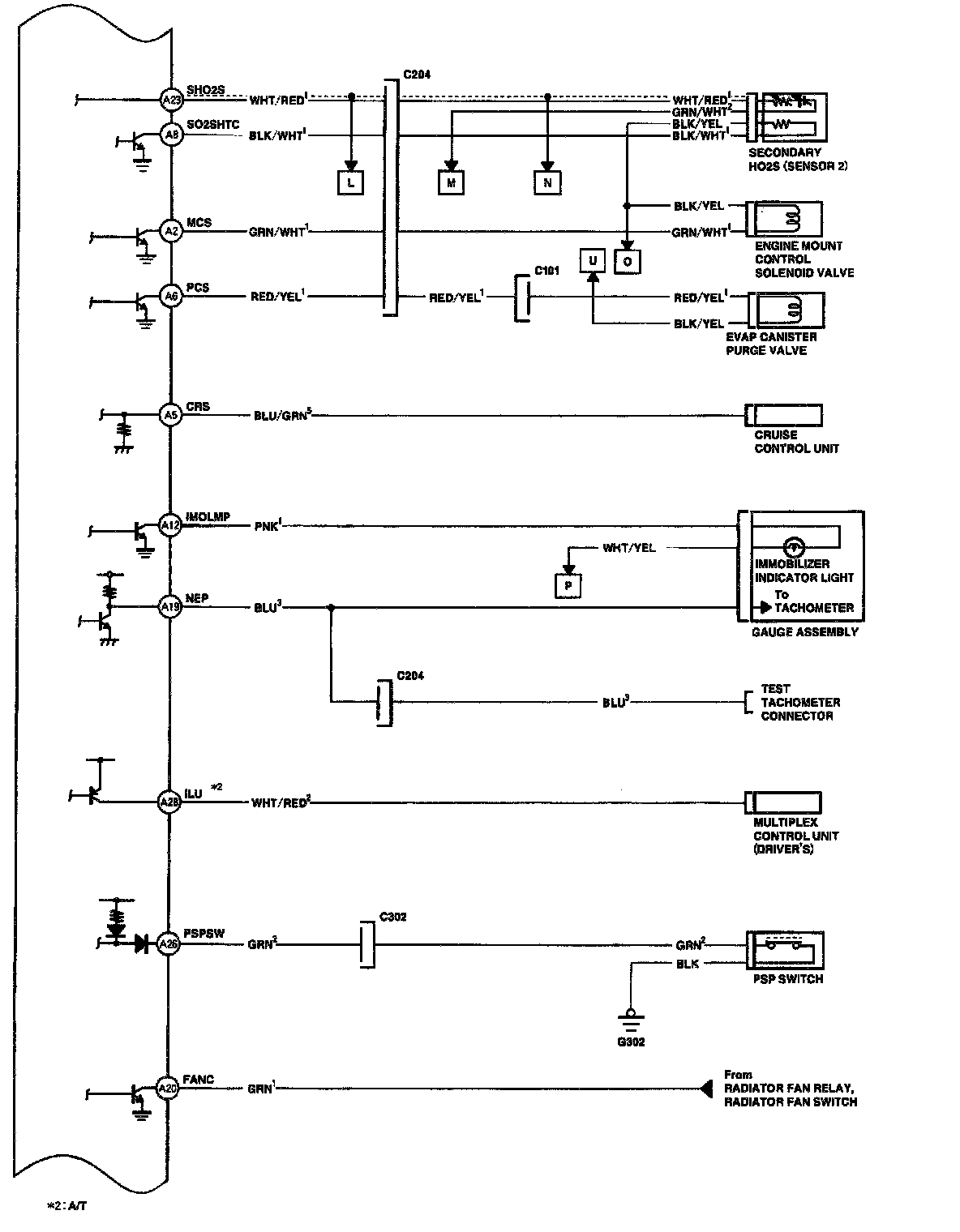

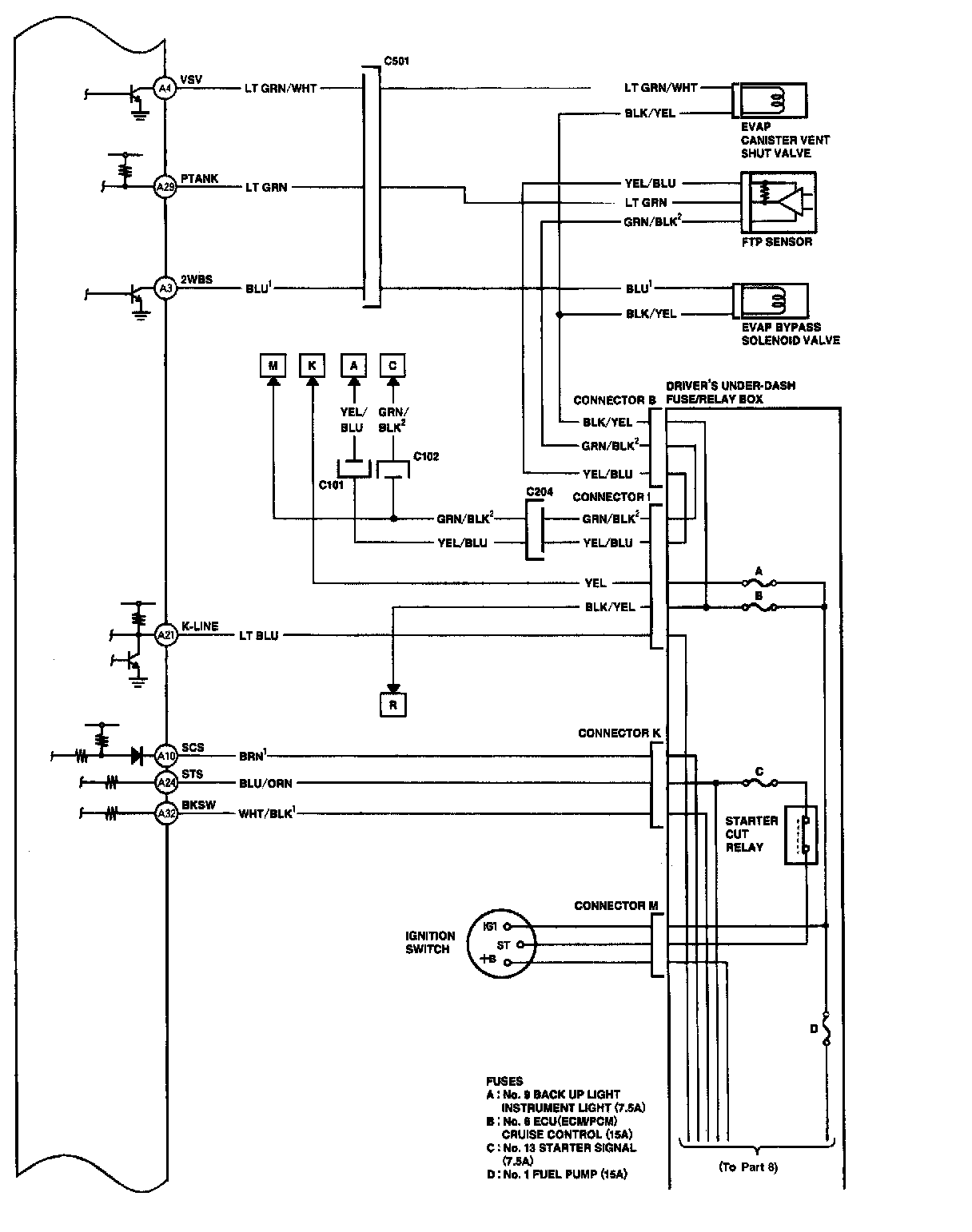

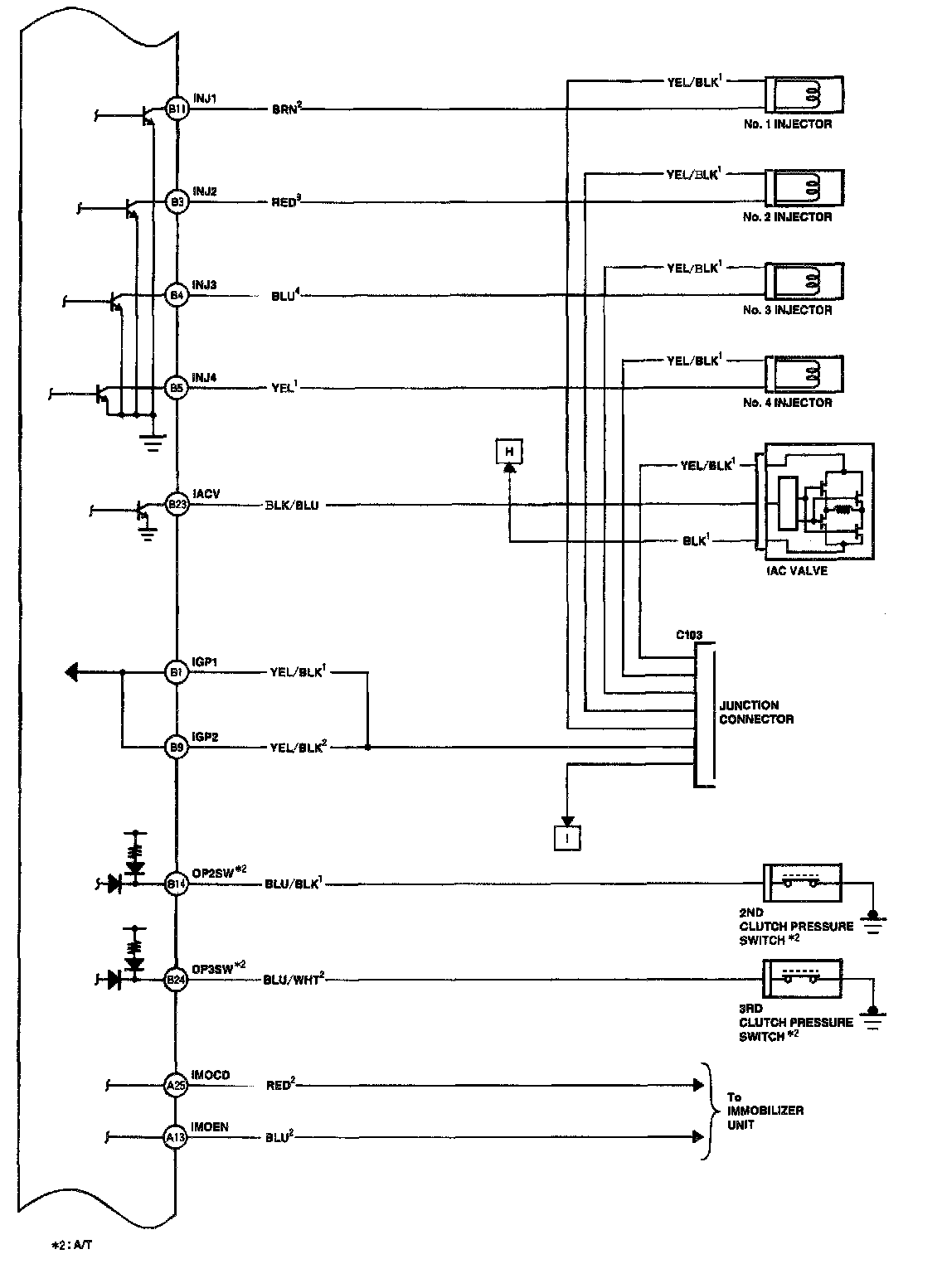

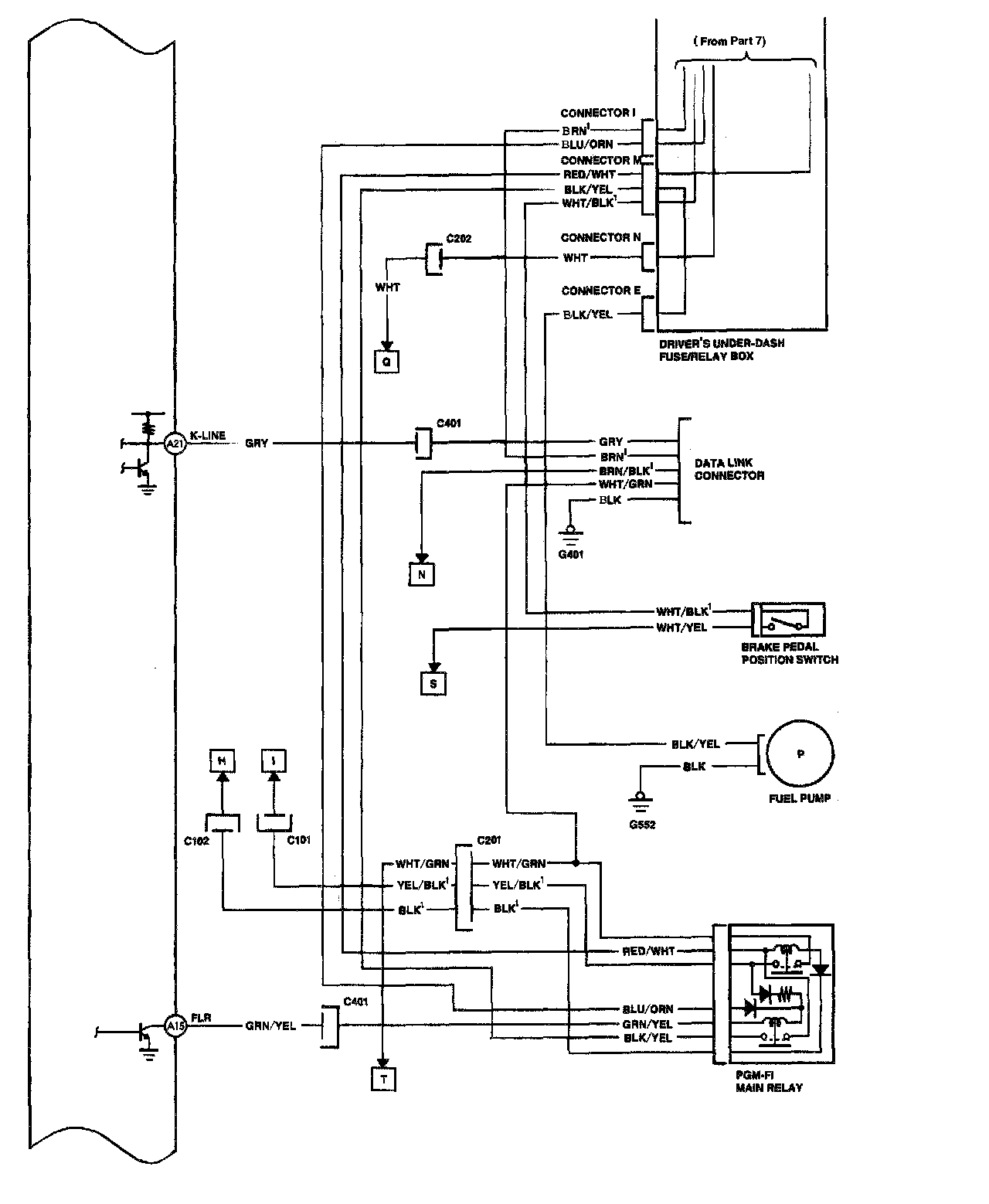

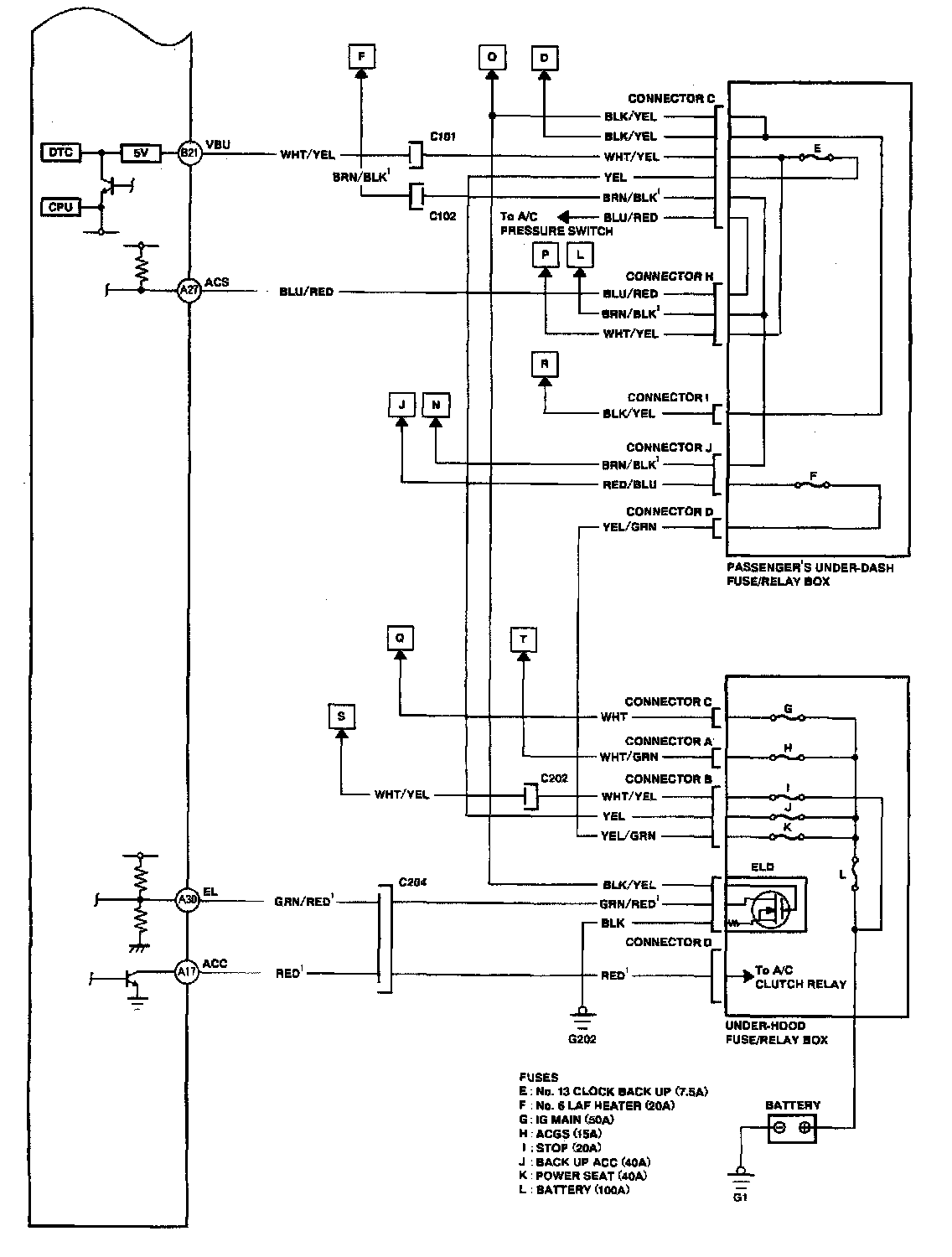

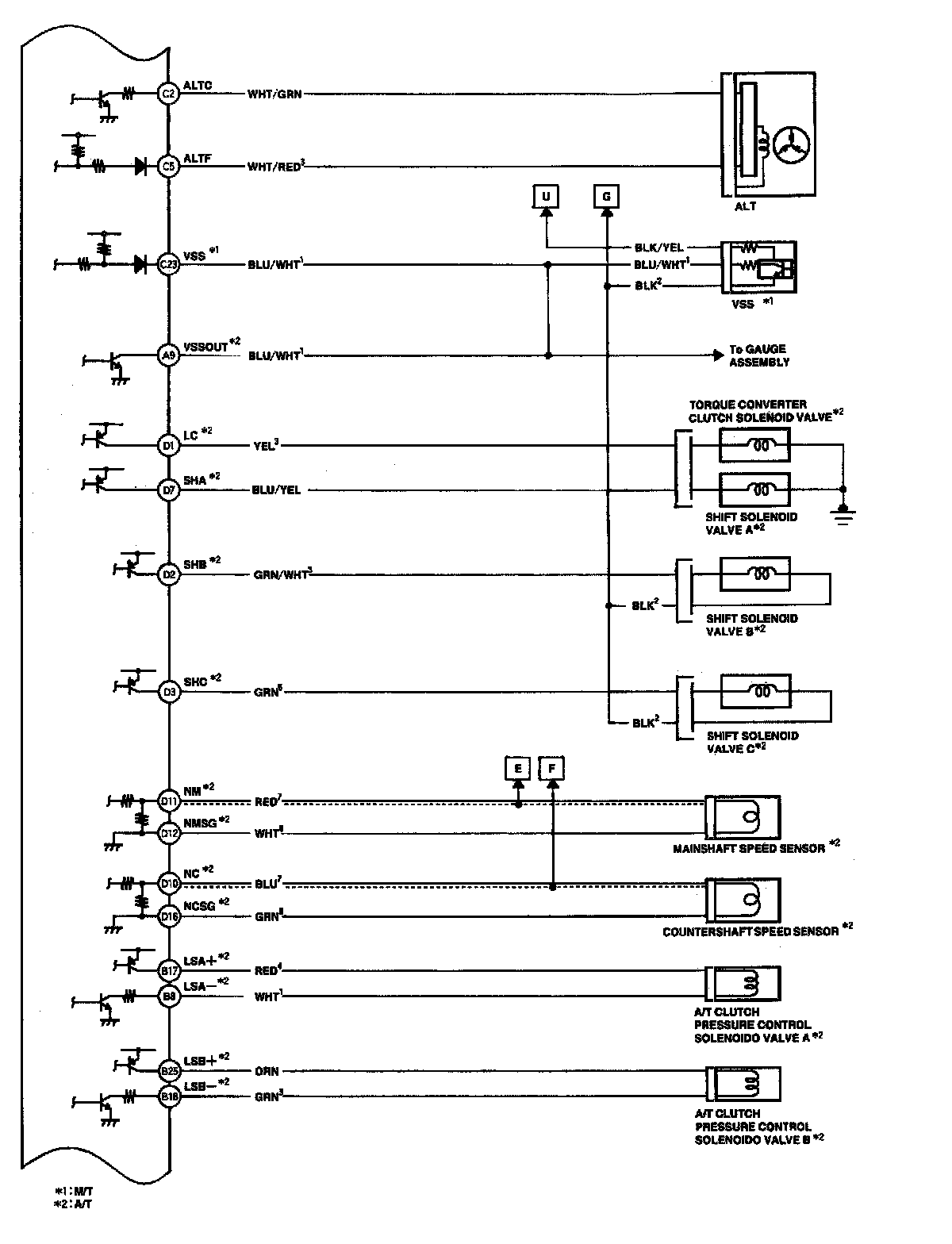

ECM/PCM Circuit Diagram Image 11-33:

ECM/PCM Circuit Diagram Image 11-34:

ECM/PCM Circuit Diagram Image 11-35:

ECM/PCM Circuit Diagram Image 11-36:

ECM/PCM Circuit Diagram Image 11-37:

ECM/PCM Circuit Diagram Image 11-38:

ECM/PCM Circuit Diagram Image 11-39:

ECM/PCM Circuit Diagram Image 11-40:

ECM/PCM Circuit Diagram Image 11-41:
