ECM/PCM Electrical Connections

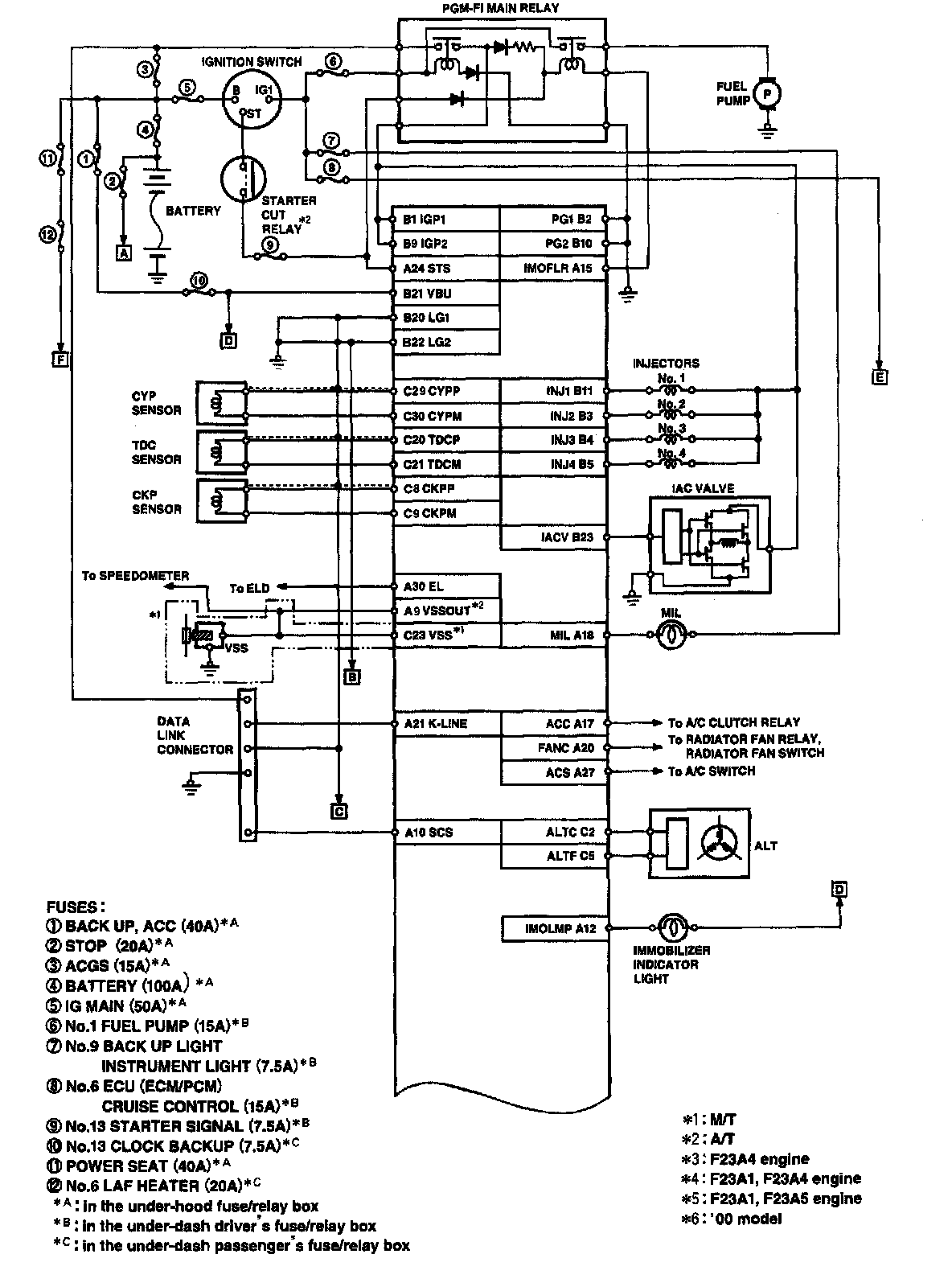

Part 1:

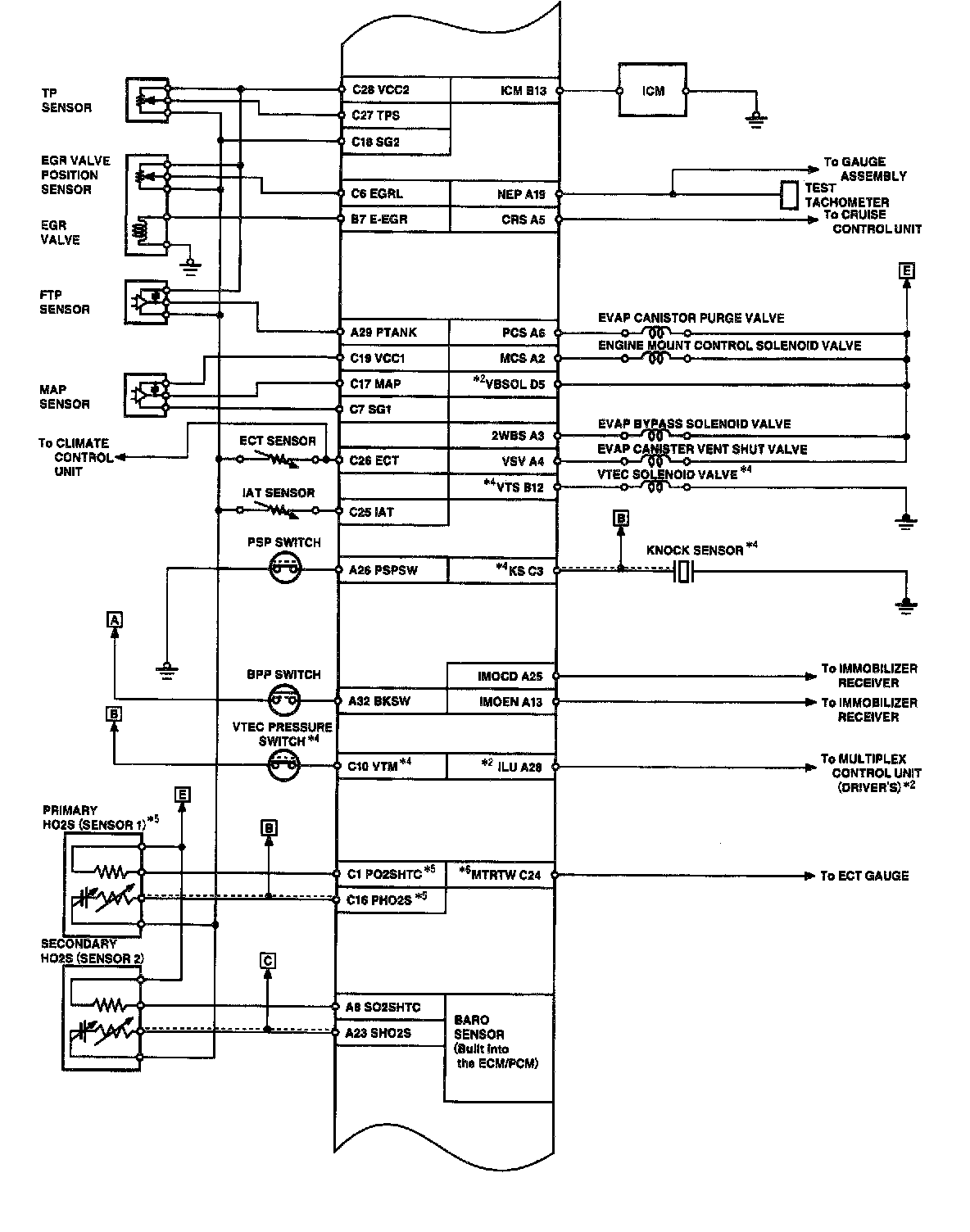

Part 2:



Part 3:



ECM/PCM Electrical Connections Image 11-13:



ECM/PCM Electrical Connections Image 11-14:



ECM/PCM Electrical Connections Image 11-15:
