Home >> Honda >> 2001 >> Accord EX Sedan V6-3.0L >> Repair and Diagnosis >> Diagrams >> Components >> Motors >> Blower Motor

Blower Motor

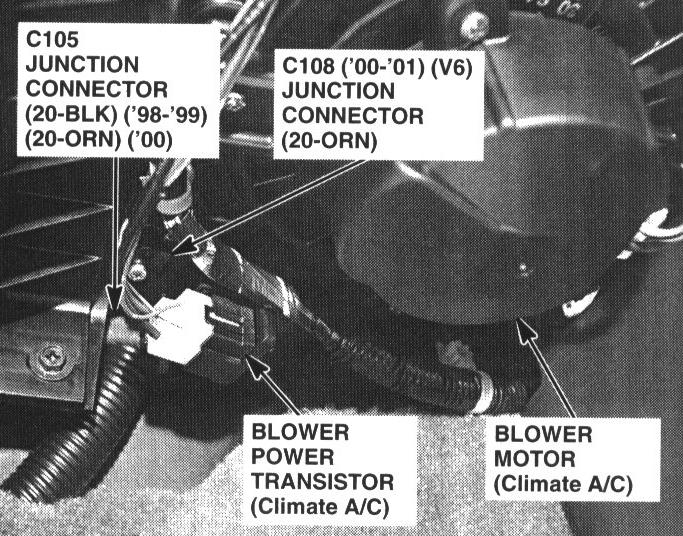

115. Below Right Side of Dash:

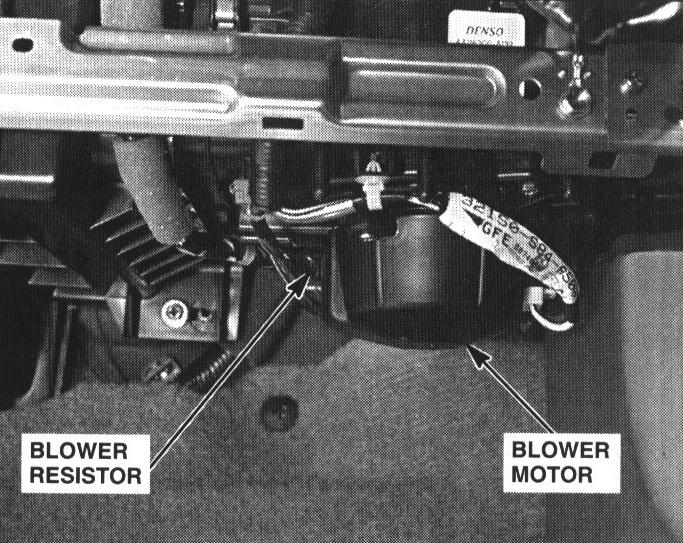

116. Below Right Side of Dash (Manual A/C):
