Intake Air System

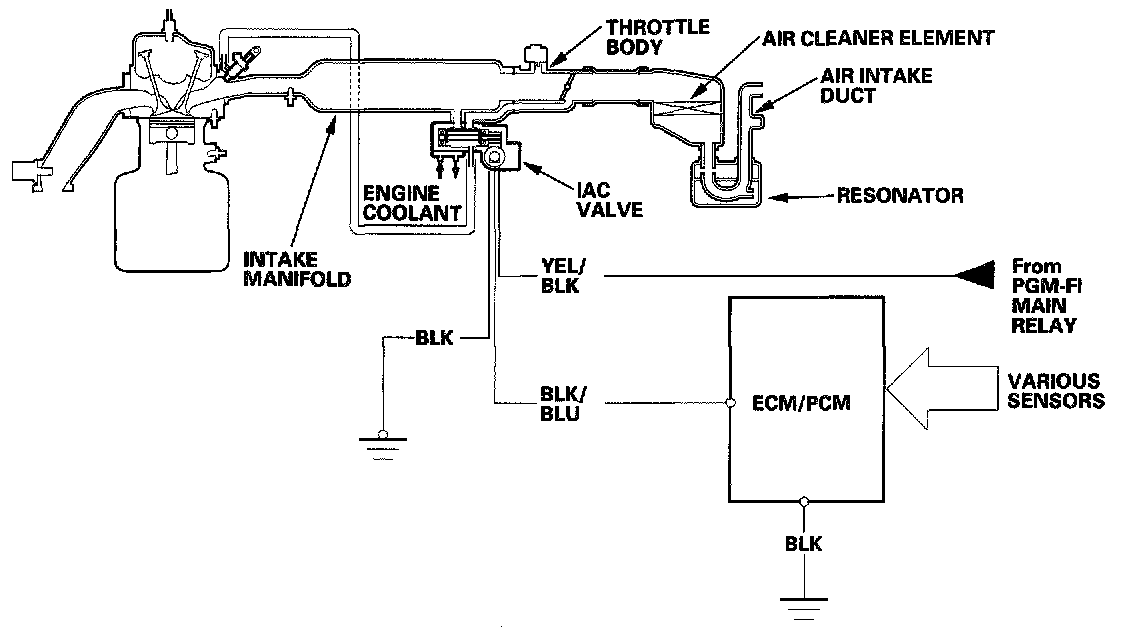

Intake Air System Diagram
This system supplies air for engine needs. A resonator in the intake air pipe provides additional silencing as air is drawn into the system.




Throttle Body

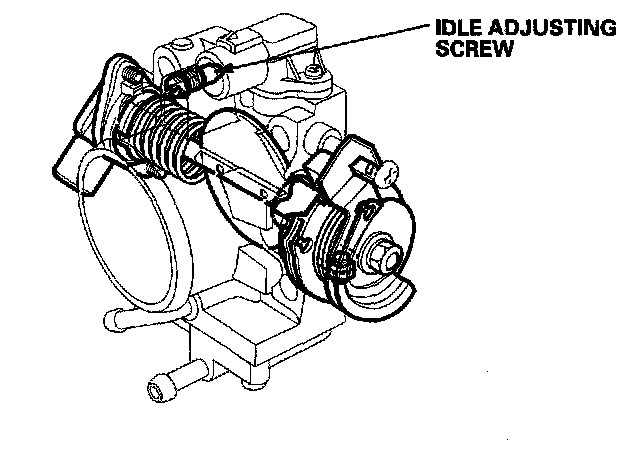

The throttle body is a single-barrel side draft type. The lower portion of the throttle valve is heated by engine coolant from the cylinder head. The idle adjusting screw, which increases/decreases bypass air is located on the top of the throttle body.
