System Diagram

6. Power Mirror (Canada), Left:

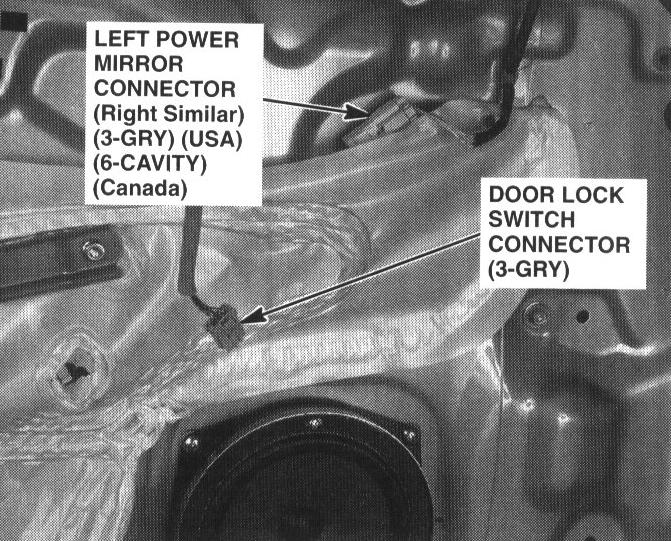

139. Driver's Door (Frt. Pass. Similar):

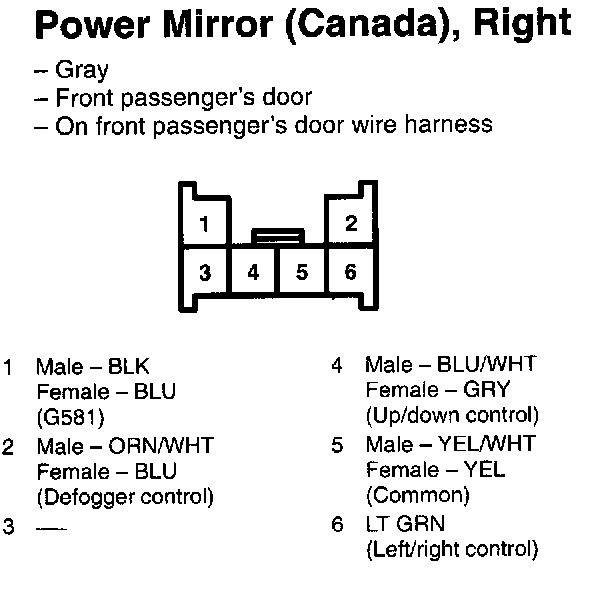

Power Mirror (Canada), Right:
