Continuously Variable Transmission/Transaxle, CVT
>>
System Diagram
System Diagram

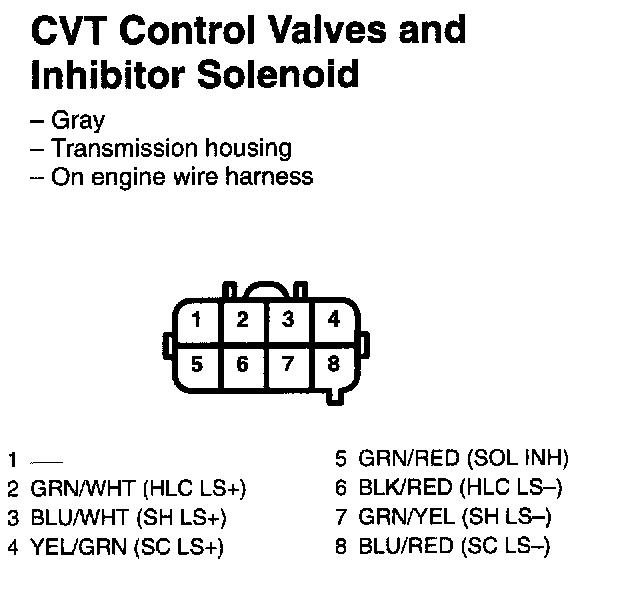

CVT Control Valves And Inhibitor Solenoid:
