Diagram Set 15 (Splice and Junction Connector Details)

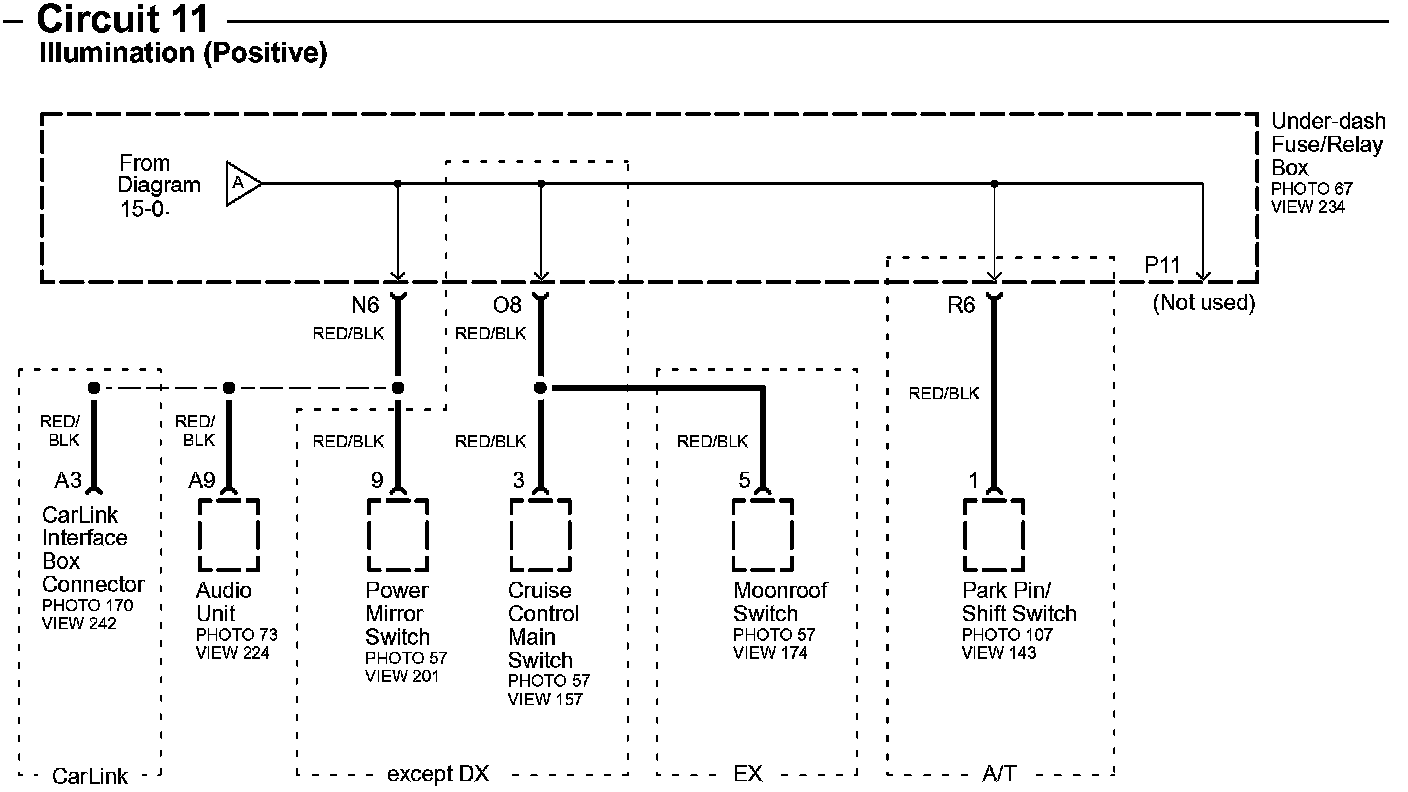

Circuit 11 Illumination (Positive):



Circuit 11 Illumination (Positive):
