Home >> Honda >> 2001 >> Civic GX Sedan L4-1.7L CNG >> Repair and Diagnosis >> Diagrams >> Splices >> Circuit 13

Circuit 13

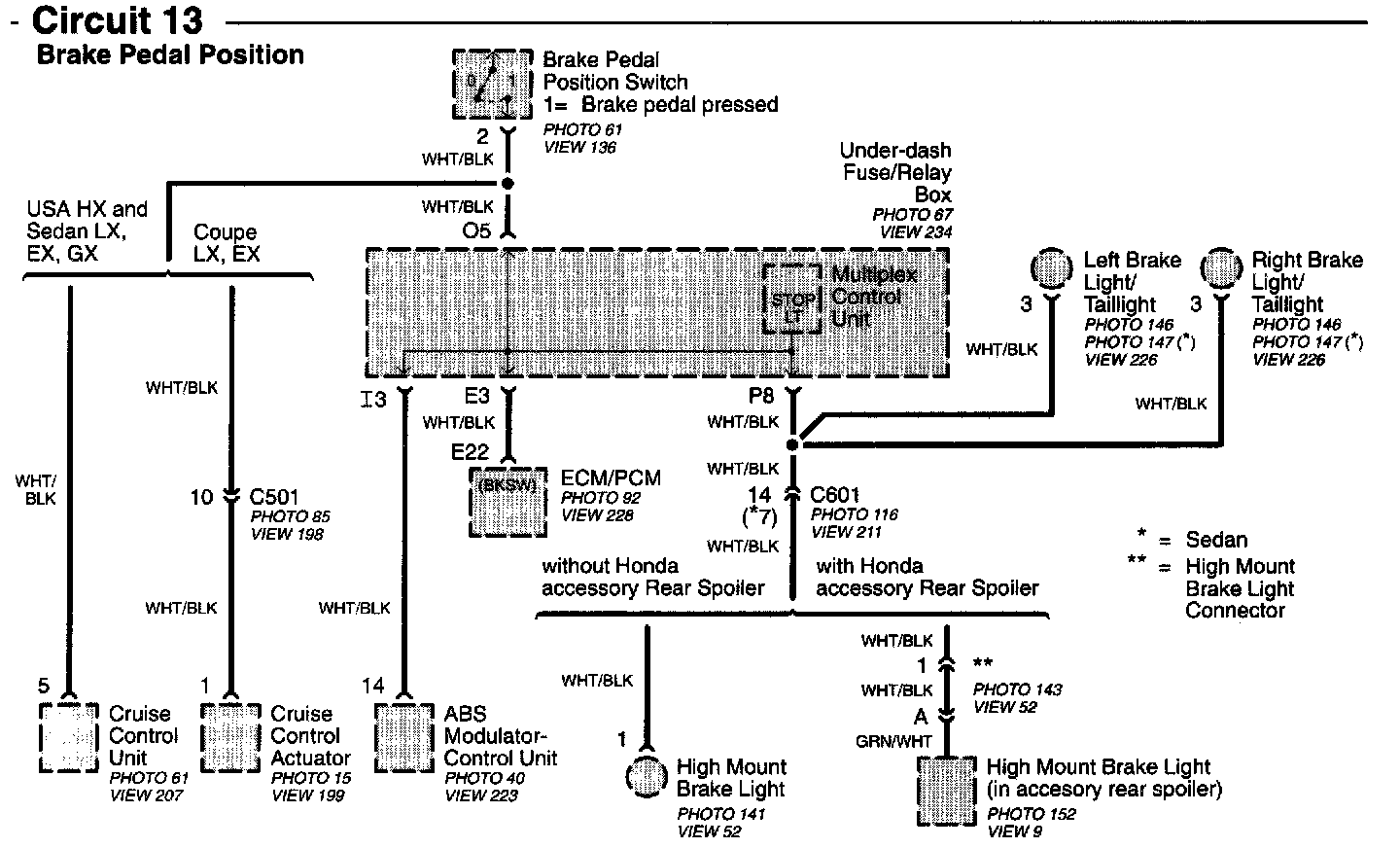

Circuit 13 - Brake Pedal Position Image 15-2b:
