Intake Air System

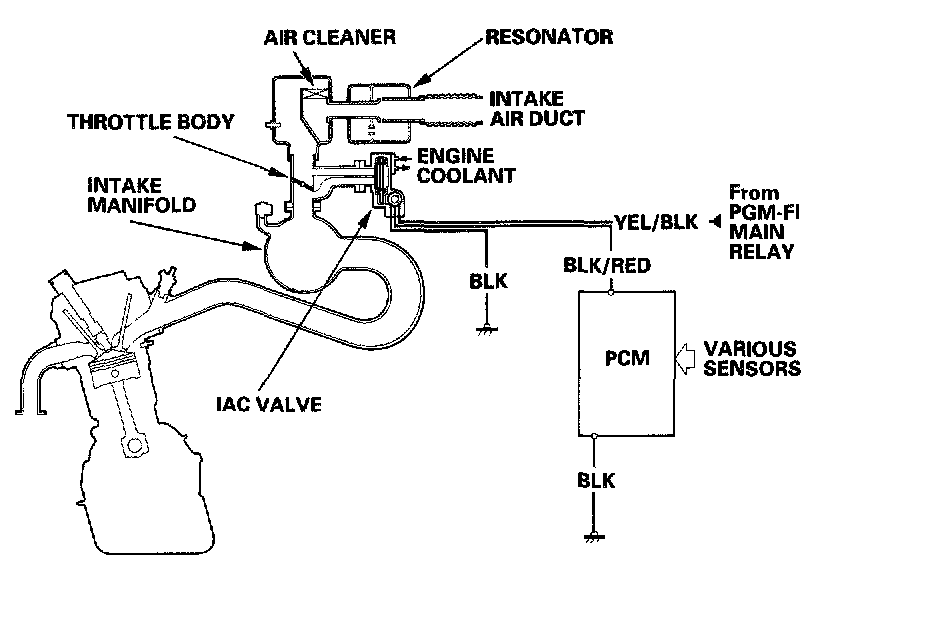

Intake Air System Diagram
This system supplies air for engine needs. A resonator in the intake air pipe provides additional silencing as air is drawn into the system.




Throttle Body
The throttle body is a single-barrel down draft type. The side portion of the IAC valve is heated by engine coolant from the cylinder head.
