Oxygen Sensor
Oxygen Sensor
103. Secondary HO2S:

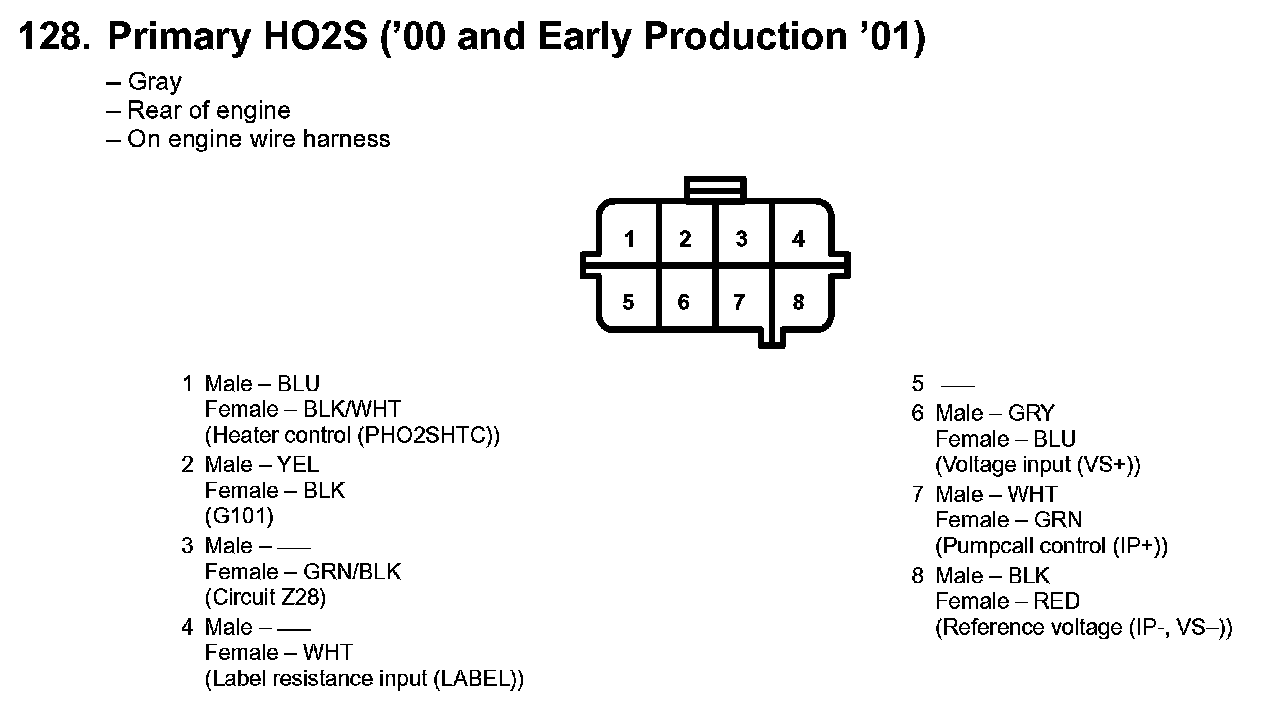

128. Primary HO2S ('00 And Early Production '01):

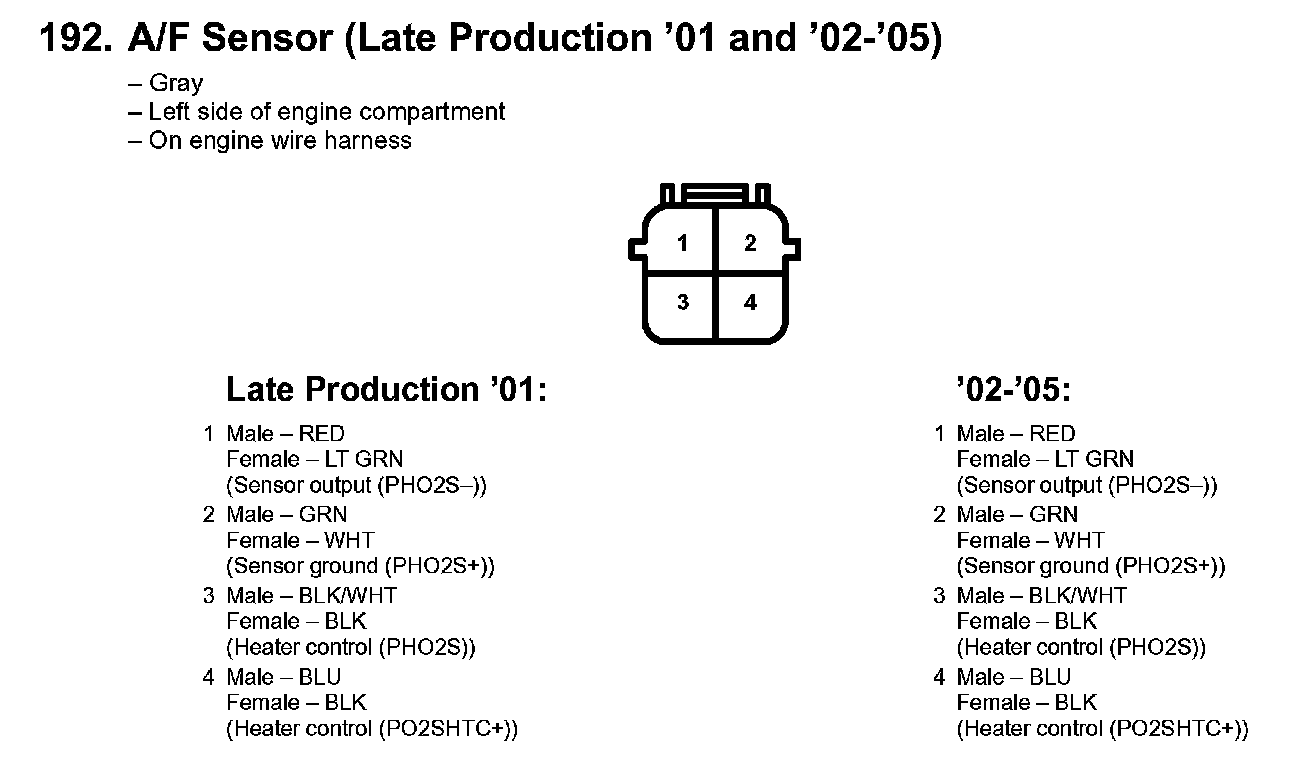

192. A/F Sensor (Late Production '01 And '02-'05):
