Home >> Honda >> 2001 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Splices >> Circuit 13

Circuit 13

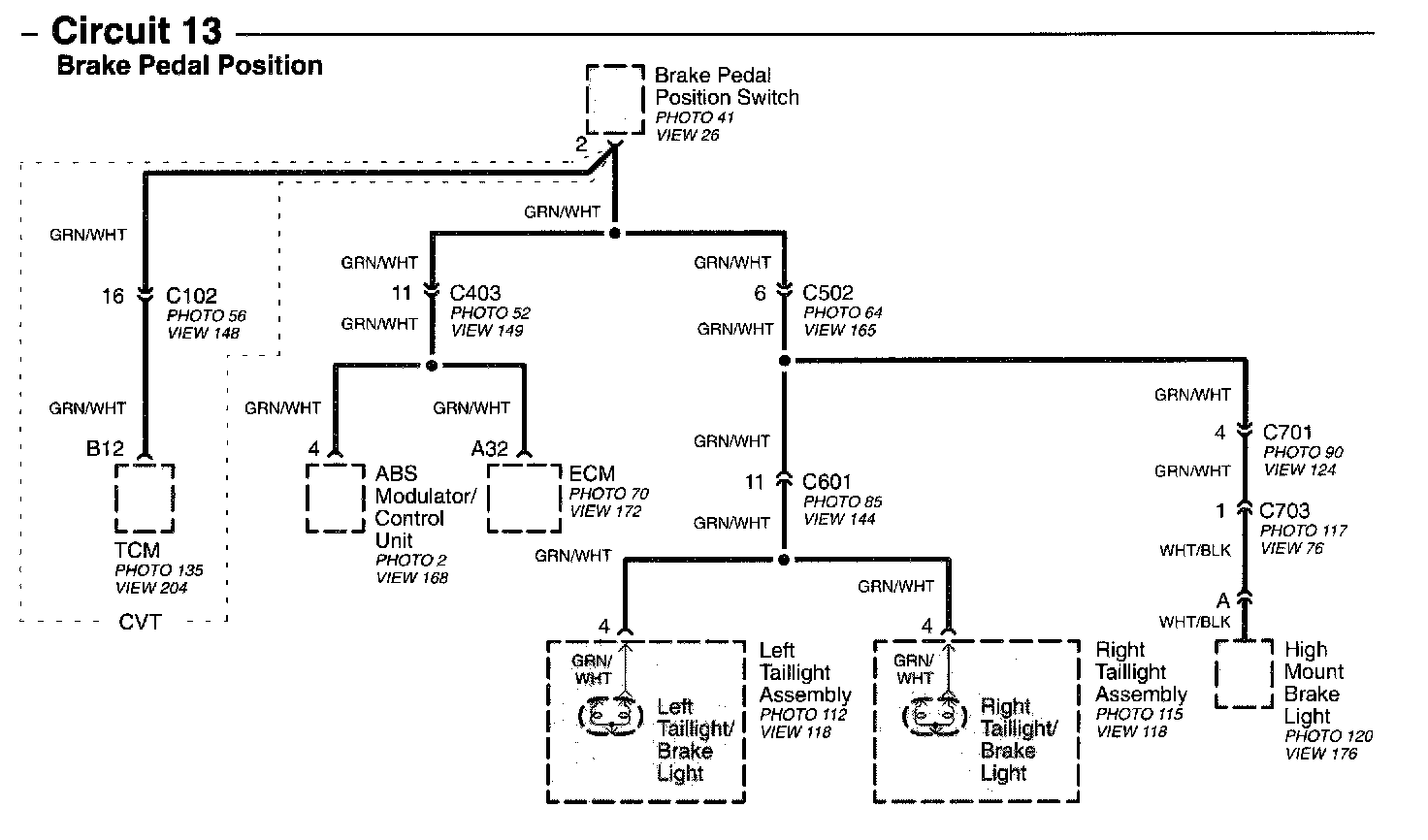

Circuit 13 - Brake Pedal Position Image 15-0a:
