IMA Case Replacement

NOTE: IMA wires are located in this area. Make sure you read the Service Precautions before performing repairs or service.

NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the body.

1. Remove these items:
- Battery module
- PCU
- Rear trim panel
- Quarter trim panel
- Middle floor panel

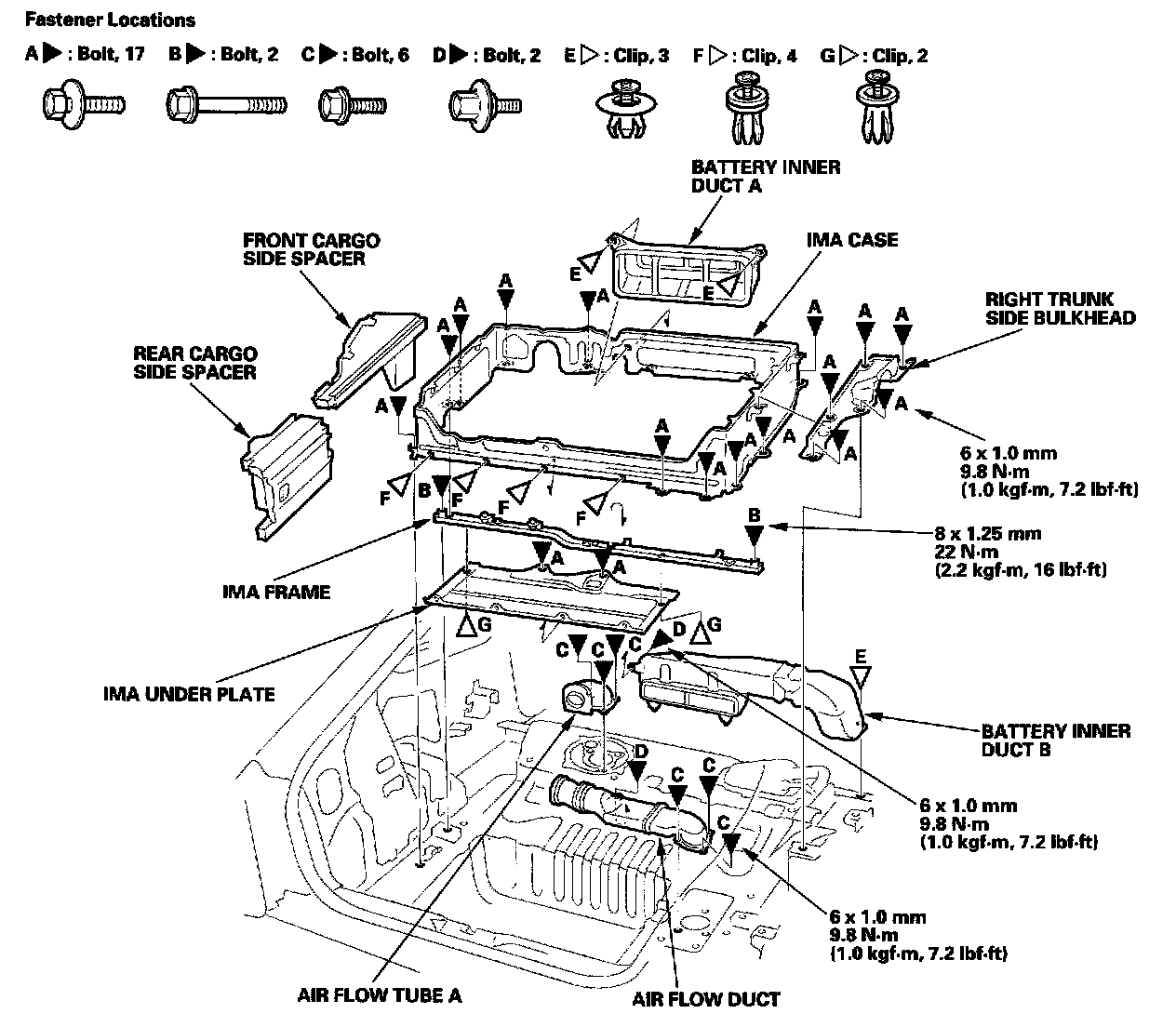

2. Remove the IMA case as shown.




3. Install the IMA case in the reverse order of removal, and replace any damaged clips.
