Driver/Vehicle Information Display: Service and Repair

Fuel Consumption Display Switch Replacement

1. Remove the instrument panel.

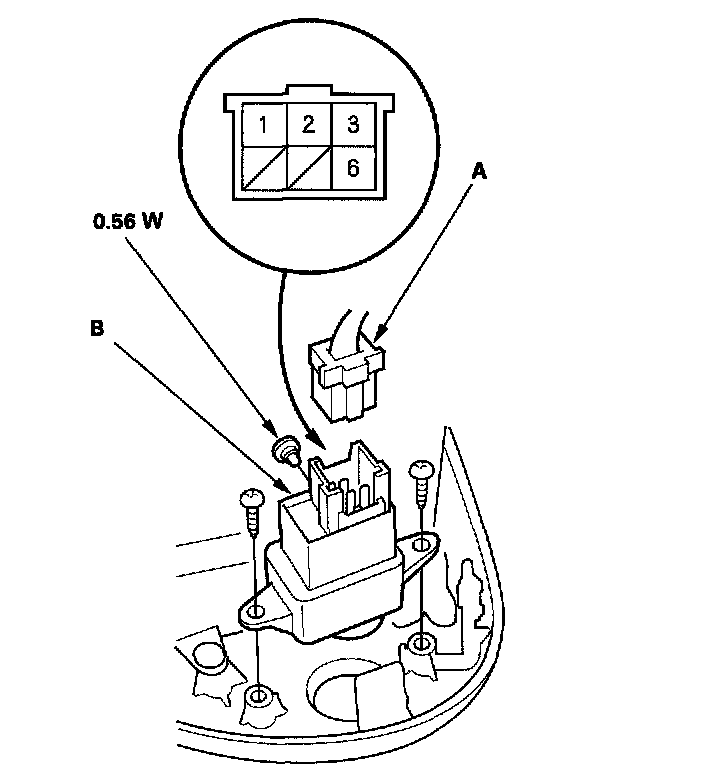

2. Disconnect the 6P connector (A) from the switch (B).
3. Remove the two screws and the switch.
4. Check for continuity between the No.6 and No.1 terminals when the switch is pushed.
There should be continuity
