Recall - Emissions/ECM Replacement: Overview

02-081

December 17, 2002

Applies To:
2000 Insight - ALL
2001 Insight with M/T - ALL

Emissions Recall: Insight ECM

BACKGROUND

The ECM does not correctly identify all malfunctions of the air/fuel ratio sensor (sensor 1). Because of this, the vehicle does not meet state and federal emissions regulations.

CUSTOMER NOTIFICATION

All owners of affected vehicles will be mailed a notification of this campaign. The customer notification letter is shown in this service bulletin.

CORRECTIVE ACTION

Replace the ECM. After you replace the ECM, reinitialize the immobilizer system, and do the idle learn procedure.

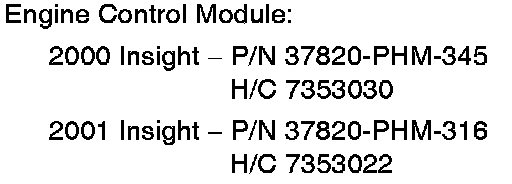

PARTS INFORMATION

WARRANTY CLAIM INFORMATION

Operation Number: 122124

Flat Rate Time: 1.0 hour

Failed Part: P/N 37820-PHM-A01
H/C 6344626

Defect Code: 5BL

Contention Code: L78

Skill Level: Repair Technician

REPAIR PROCEDURE

NOTE:
Make sure you have all of your customer's keys.

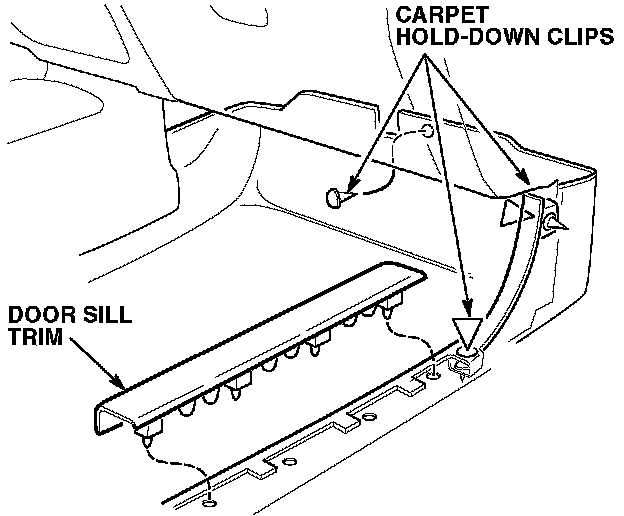

1. Carefully remove the passenger's door sill trim. If you break any of the trim clips, replace them (P/N 91560-S06-003, H/C 6353502).





2. Remove the carpet hold-down clips on the door sill.

3. Remove the carpet hold-down clip in the passenger's footwell under the glove box. Pull back the carpet.

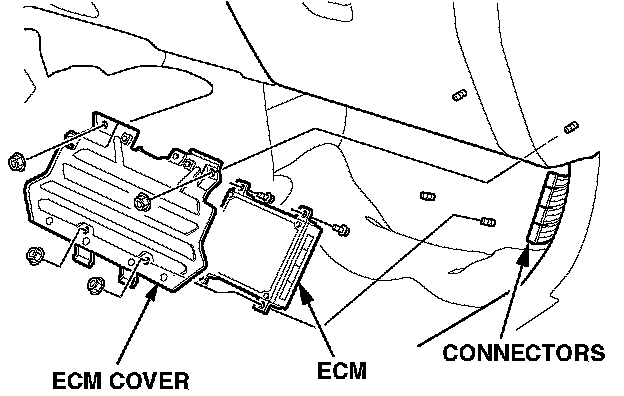

4. Remove the ECM cover mounting nuts.

5. Pivot the lower edge of the ECM cover off the mounting studs. Lift the upper edge of the cover off the mounting studs, then pull the cover down and back so it clears the evaporator drain tube.

6. Remove the two bolts mounting the ECM to the cover. Disconnect the ECM connectors, and remove the ECM.

7. Install the new ECM and the cover in the reverse order of removal.

8. Reinstall the carpet and the door sill trim.

9. Connect the PGM Tester to the data link connector (DLC).

10. Use the PGM Tester to program the customer's immobilizer key codes into the ECM. Verify that all the keys will start the engine.

NOTE:
Make sure the PGM Tester software is SN32OP or later.

11. Do the idle learn procedure:

^ Warm the engine to normal operating temperature.

^ Let the engine idle for 10 minutes. If the radiator fan comes on, do not include its running time in the 10 minutes.





12. Center-punch a completion mark above the eighth character of the engine compartment VIN.

13. For California residents: Fill out and give to your customer a Vehicle Emission Recall - Proof of Correction certificate. Advise them to keep this certificate as proof that the emissions recall was completed. Your customer will need to submit this certificate to the DMV if the DMV requests it. A supply of these salmon-colored certificates was sent to your service manager. If you need more, use reorder number Y0657.
