Windshield Washer Motor: Testing and Inspection
Washer Motor Test1. Remove the right front inner fender.

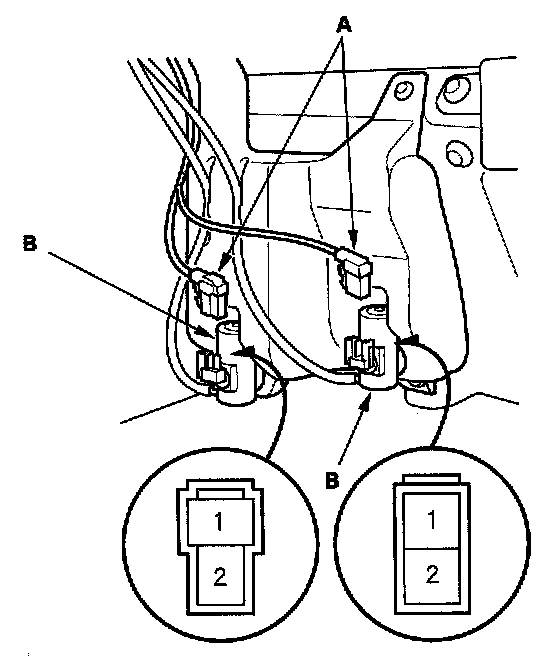

2. Disconnect the 2P connectors (A) from the washer motors (B).
3. Test the washer motor by connecting battery power to terminal No. 1 and connect terminal No. 2 to body ground. The washer motor should operate. If the washer motor does not operate, replace it.
