Component Tests and General Diagnostics

1. Remove the door panel.




2. Disconnect the 3P or 6P connector from the power mirror assembly.

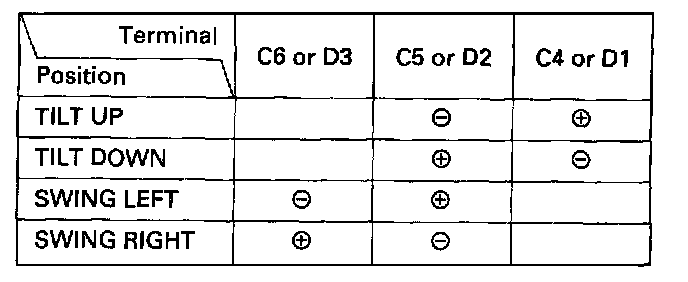

3. Check actuator operation by connecting power and ground according to the table.

Defogger Test:
4. Check for continuity between the C1 and C2 terminals of the 6P connector.
There should be continuity.
5. If the mirror fails to work properly, replace the mirror assembly.
