Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
Instrument Cluster / Carrier

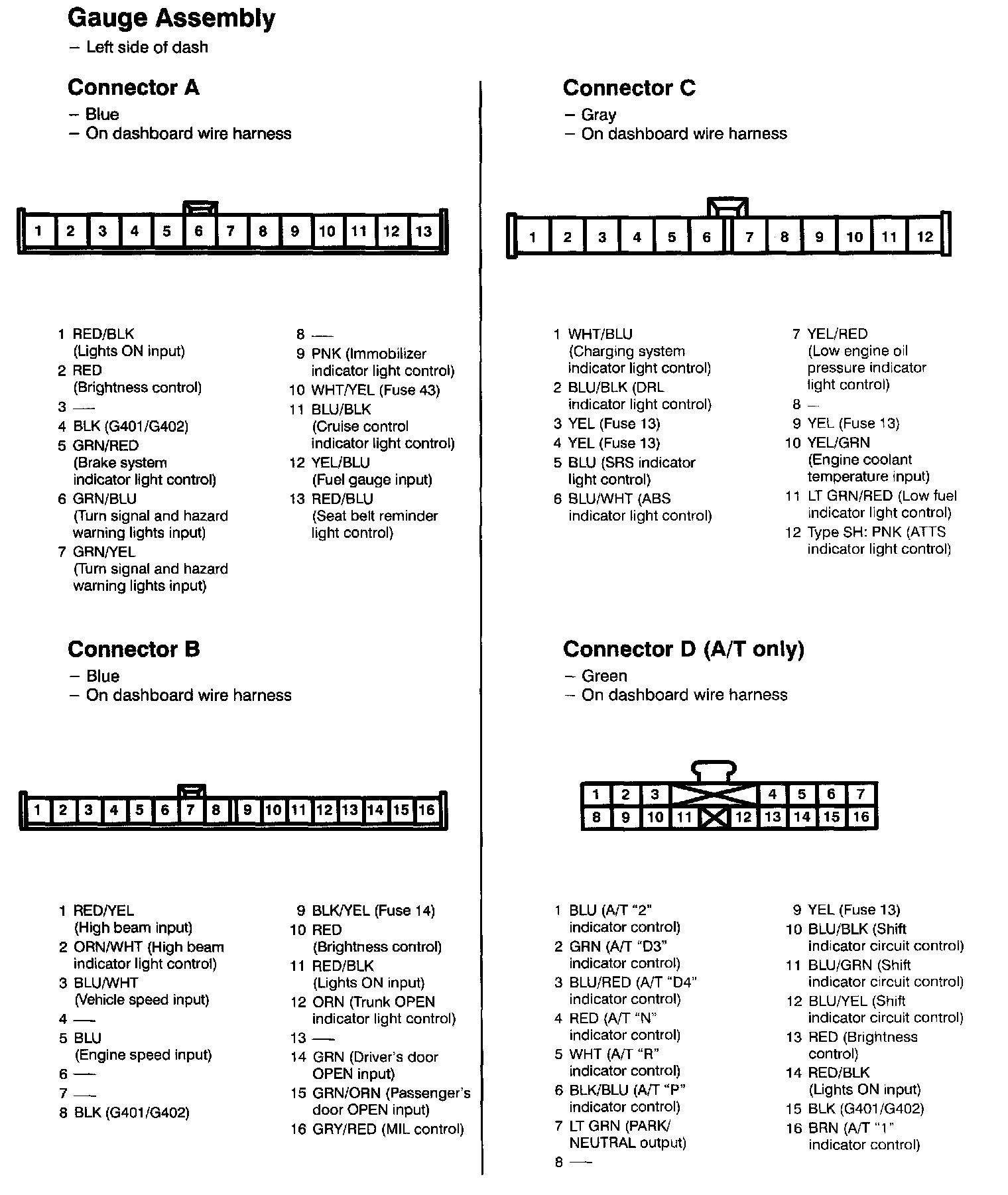

Gauge Assembly Connectors A , B, C, D(A/T Only):
