Oil Pressure Warning Lamp/Indicator
Oil Pressure Warning Lamp/Indicator

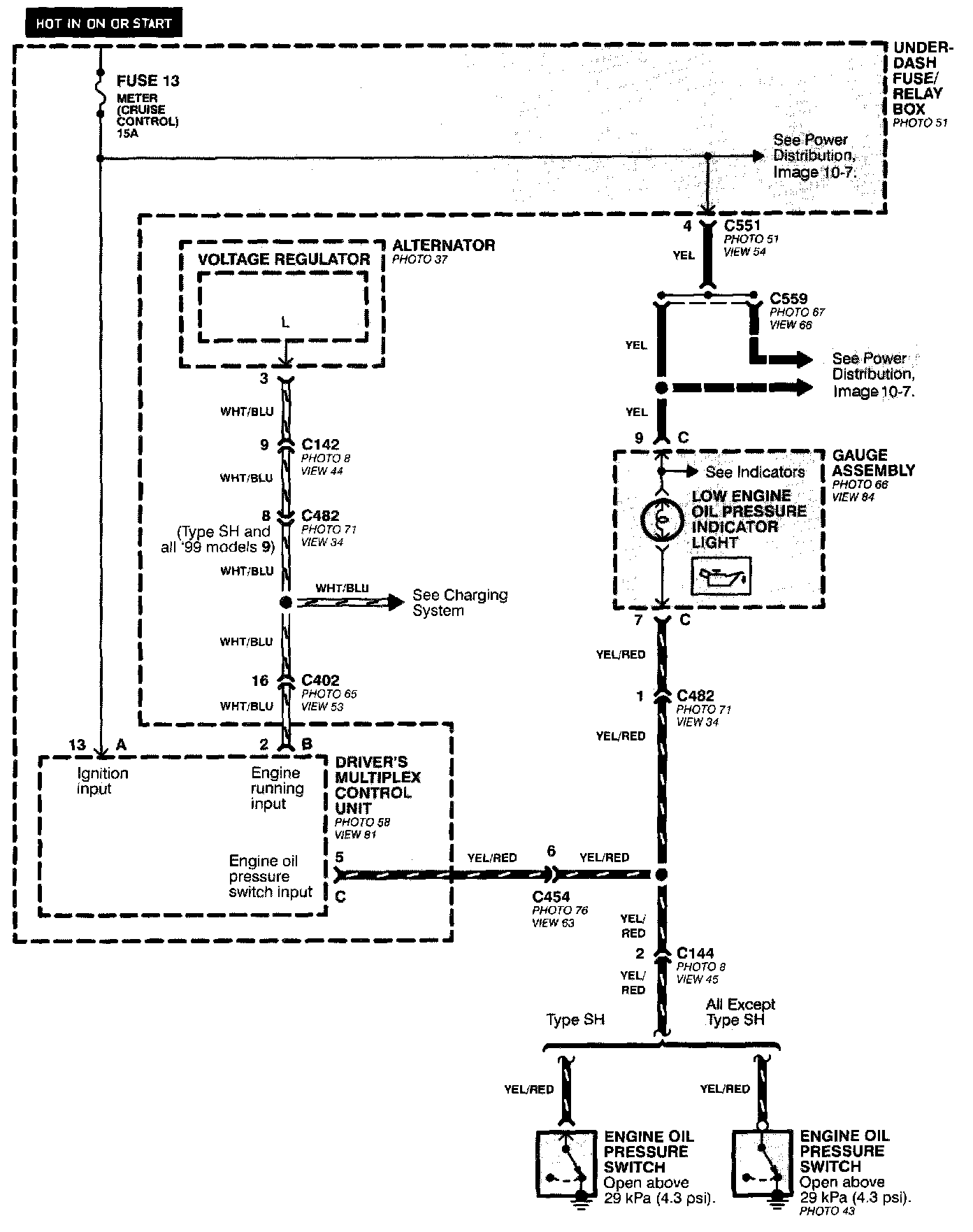

Engine Oil Pressure Indicator Light Image 72:
