Indicators

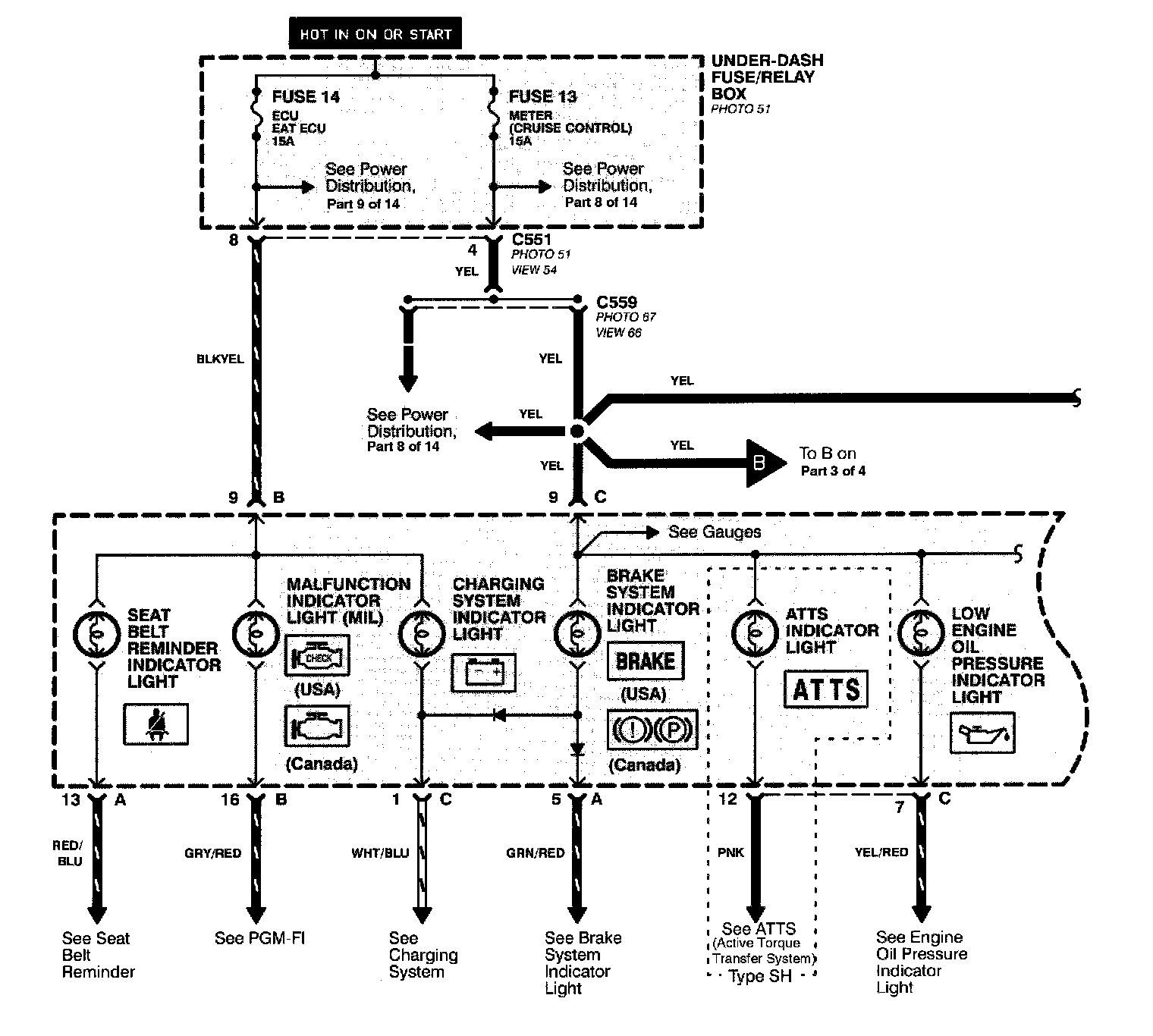

Indicators (Part 1 Of 4):

Indicators (Part 1 Of 4)
ATTS (Active Torque Transfer System) Indicator Light
Brake System Indicator Light
Charging System Indicator Light
Low Engine Oil Pressure Indicator Light
Malfunction Indicator Light (MIL)
Seat Belt Reminder Indicator Light
Under-Dash Fuse/Relay Box

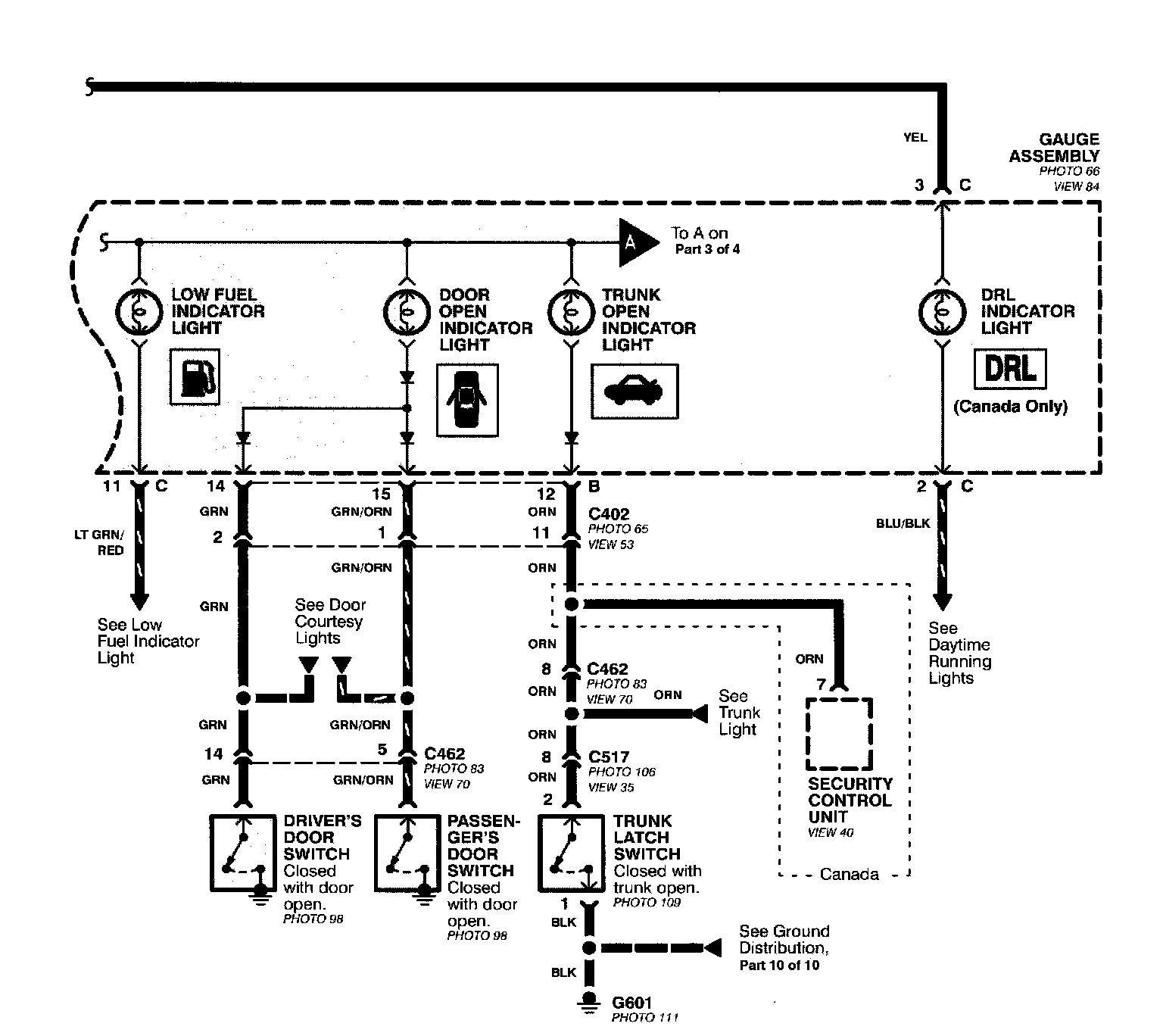

Indicators (Part 2 Of 4):

Indicators (Part 2 Of 4)
Driver's Door Switch
Gauge Assembly
- DRL Indicator light
- Door Open Indicator Light
- Low Fuel Indicator Light
- Trunk Open Indicator Light
Passenger's Door Switch
Security System Connector
Trunk Latch Switch

Indicators (Part 3 Of 4):

Indicators (Part 3 Of 4)
ABS Light Indicator
Cruise Control Indicator Light
SRS Indicator Light

Indicators (Part 4 Of 4):

Indicators (Part 4 Of 4)
Gauge Assembly
- High Beam Indicator Light
- Immobilizer Indicator Light
- Left Turn Signal Indicator Light
- Right Turn Signal Indicator Light
