Home >> Honda >> 2001 >> Prelude L4-2157cc 2.2L DOHC (VTEC) MFI >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> USA

USA

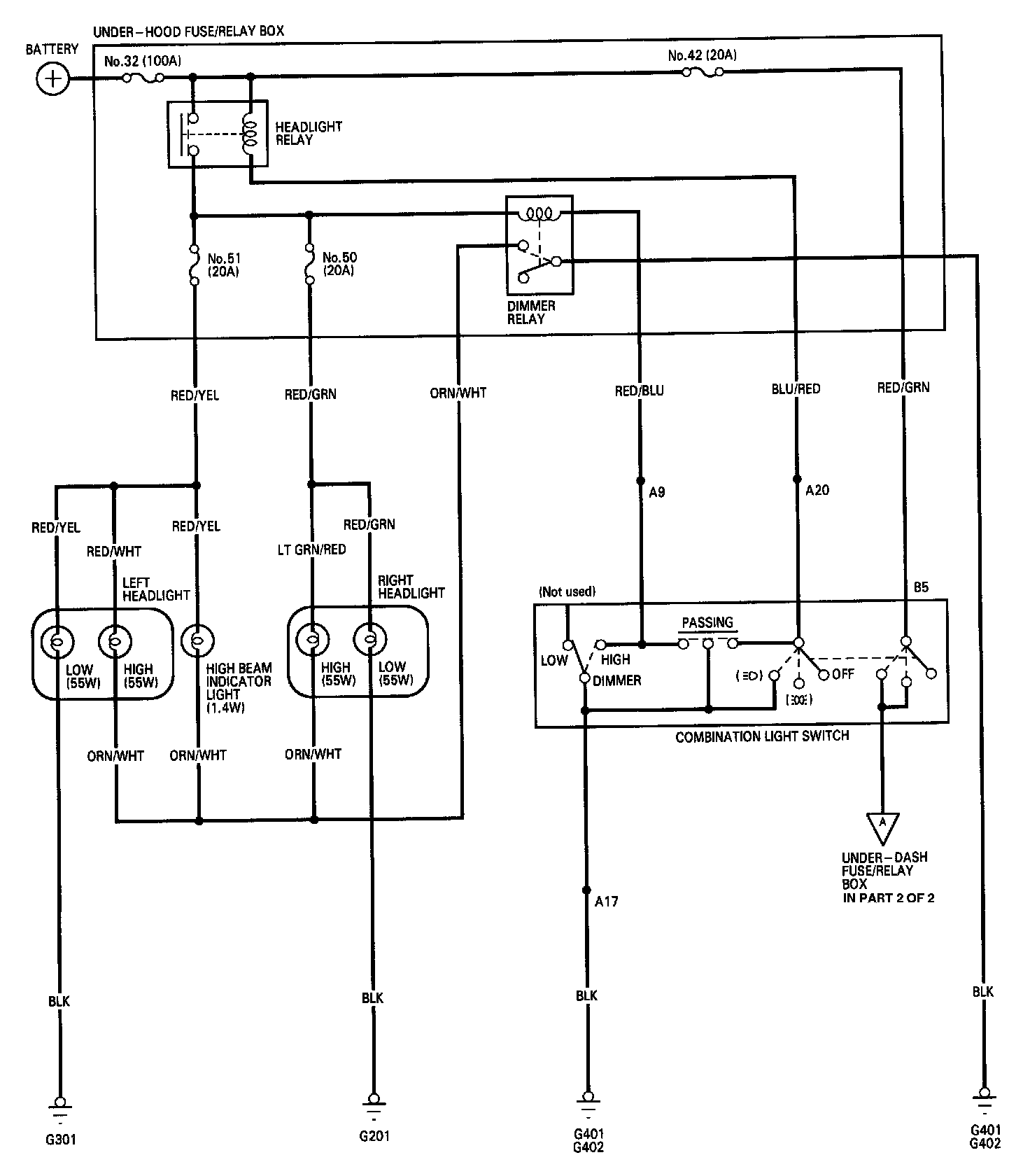

Circuit Diagram - Part 1 Of 2:
