Installation

1. Install the extension tube and shaft.

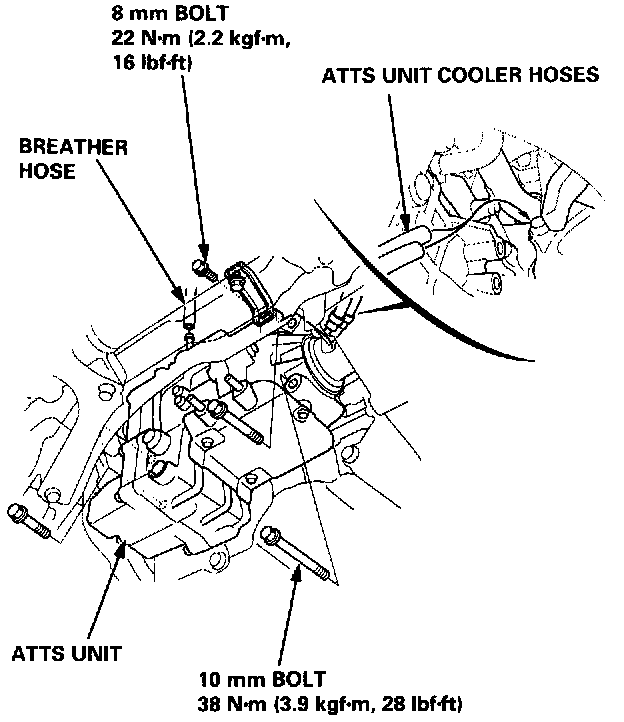

2. Raise the ATTS unit with a jack.
3. Connect the breather hose and to the ATTS unit.




4. Route the ATTS unit cooler hoses as described below, and install the ATTS unit.

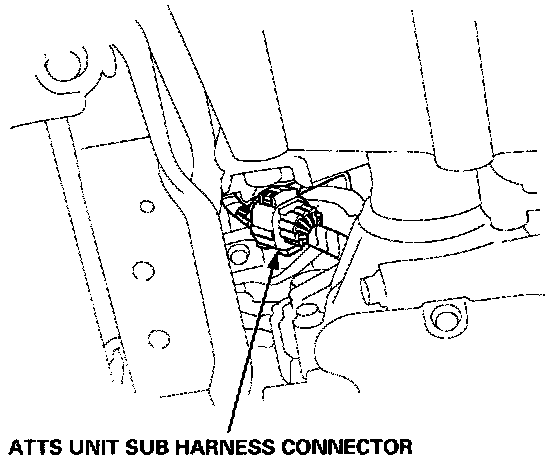

5. Connect the ATTS unit sub harness connector.




6. Connect the ATTS unit cooler hoses, then install the harness bracket.

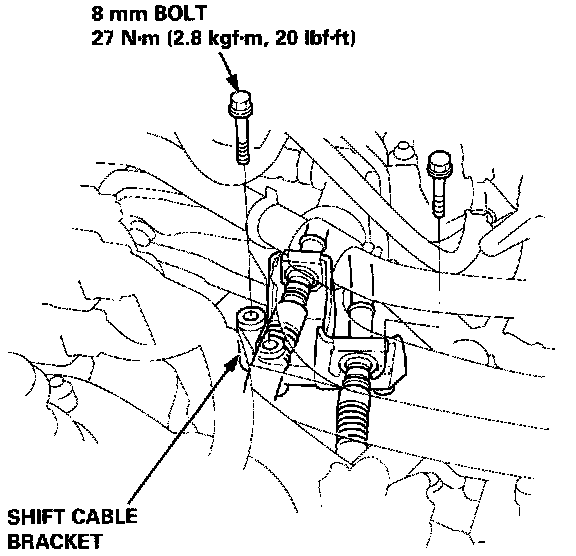

7. Install the shift cable bracket.
8. Install the distributor cover.
9. Connect the air cleaner duct.
10. Install the exhaust pipe.
11. Install the left driveshaft.
12. Perform the ATTS function test.
