Antitheft and Alarm Systems: Service and Repair

Door Exploded View:

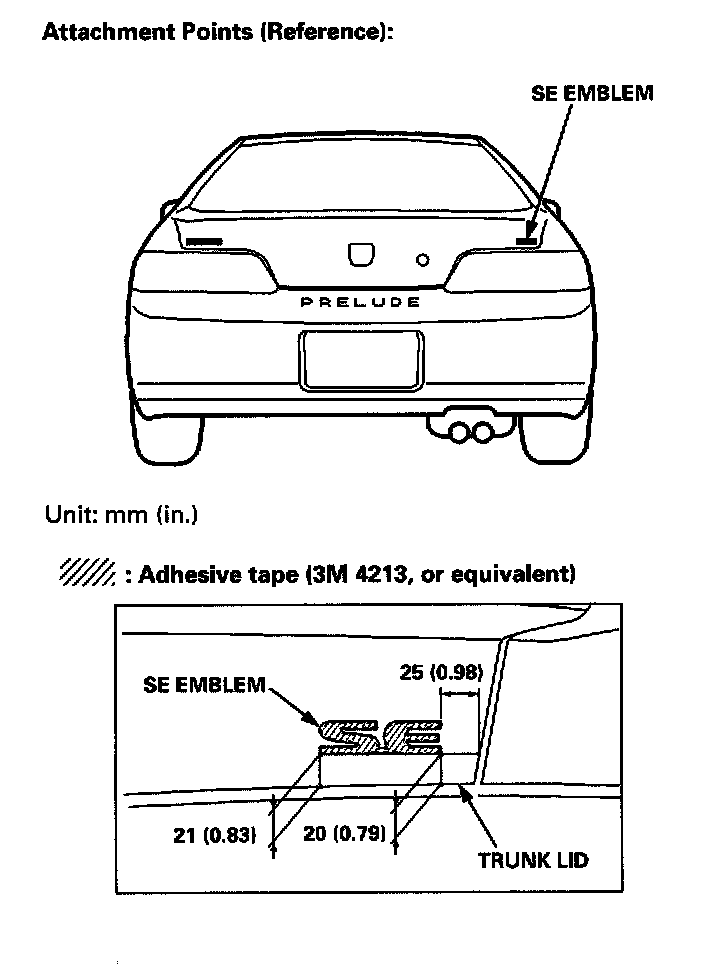

Emblem Attaching Point Reference:

NOTE: The immobilizer label has been added. The SE emblem has been added.

Installation

Apply the SE emblem where shown.

NOTE:
- Before applying, clean the body surface with a spange dampened in alcohol.
- After cleaning, keep oil, grease and water from getting on the surface.
