Pinout Values and Diagnostic Parameters

ABS Control Unit Terminal Arrangement

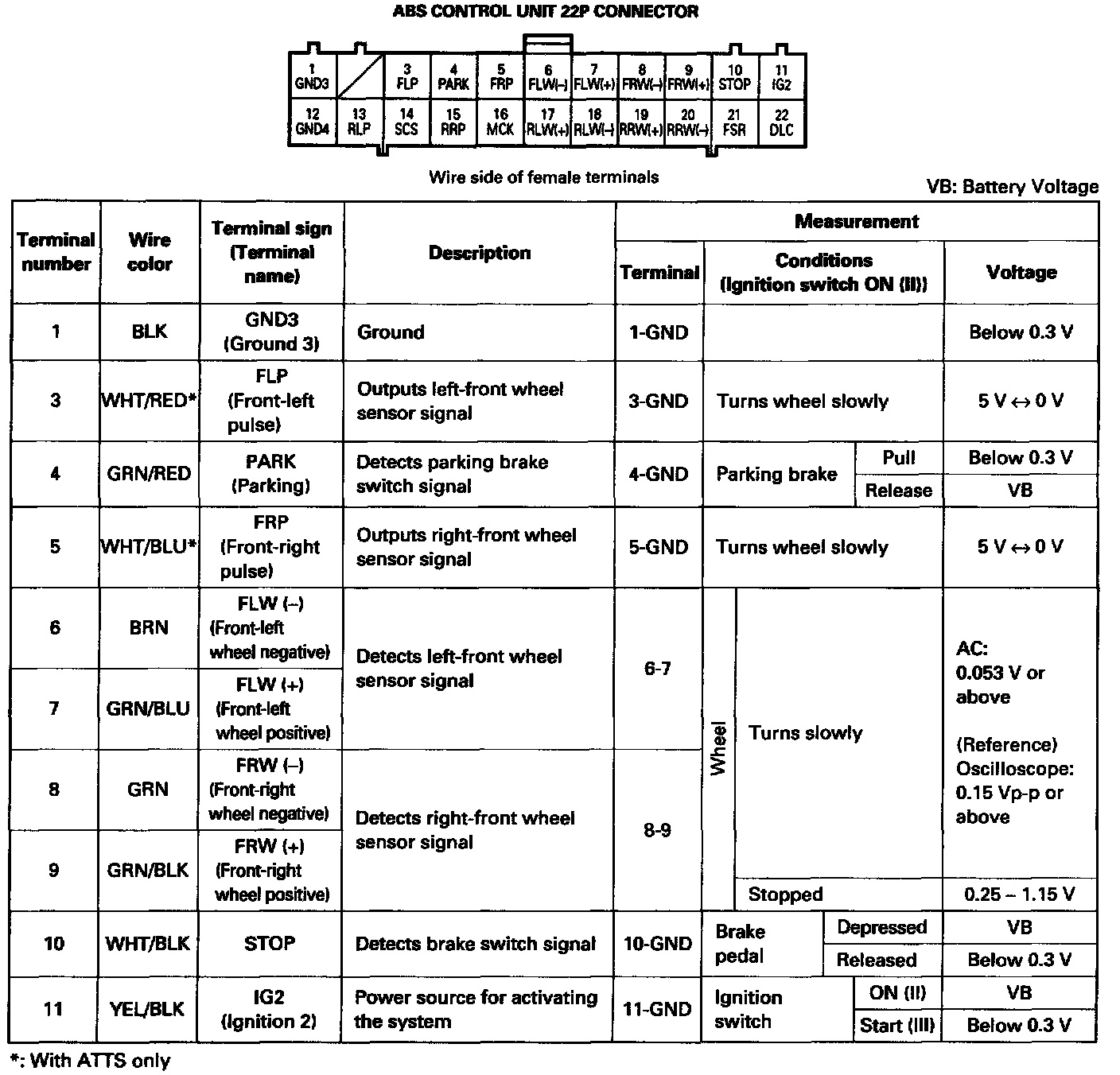

Part 1 Of 2:

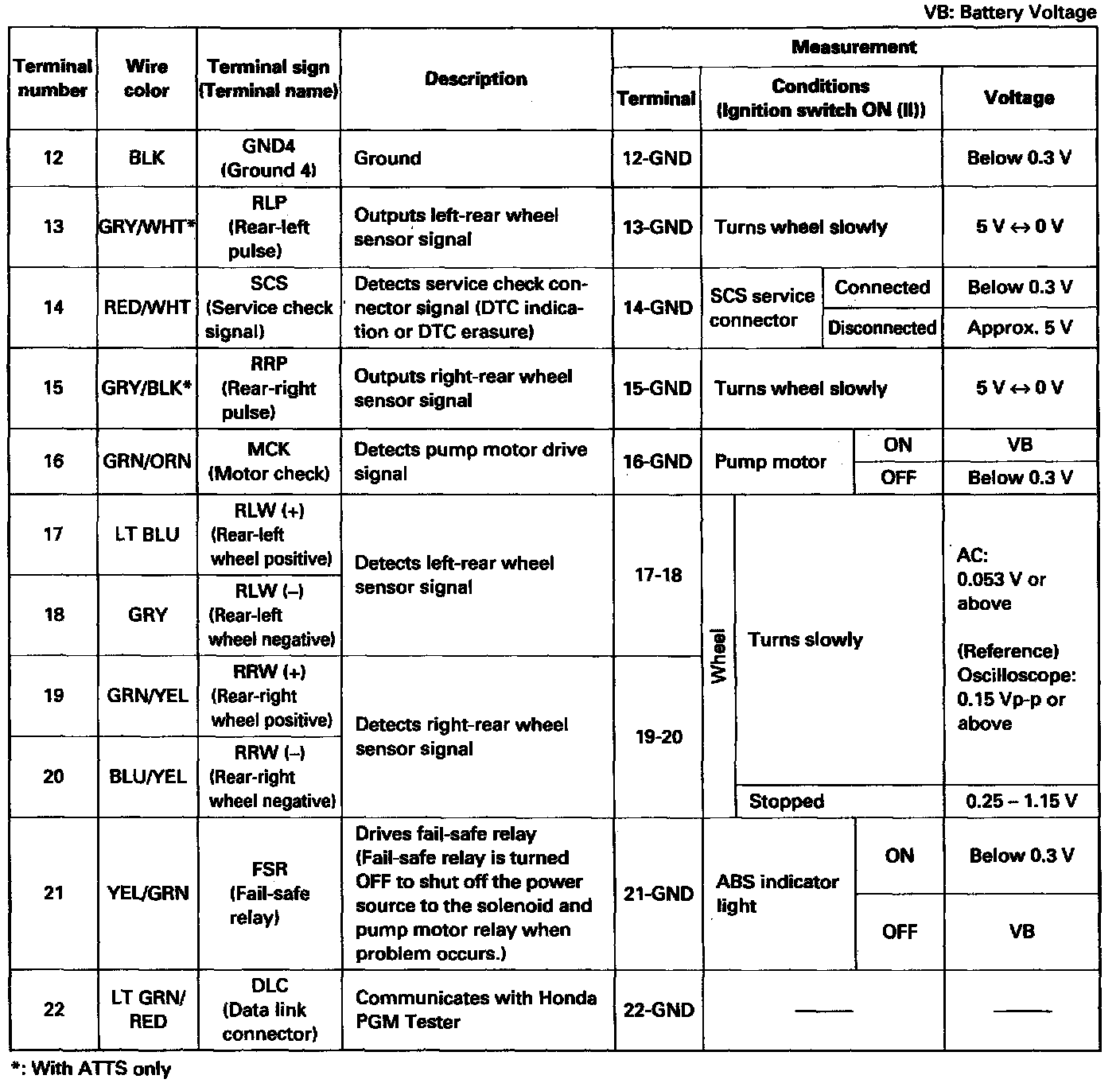

Part 2 Of 2:

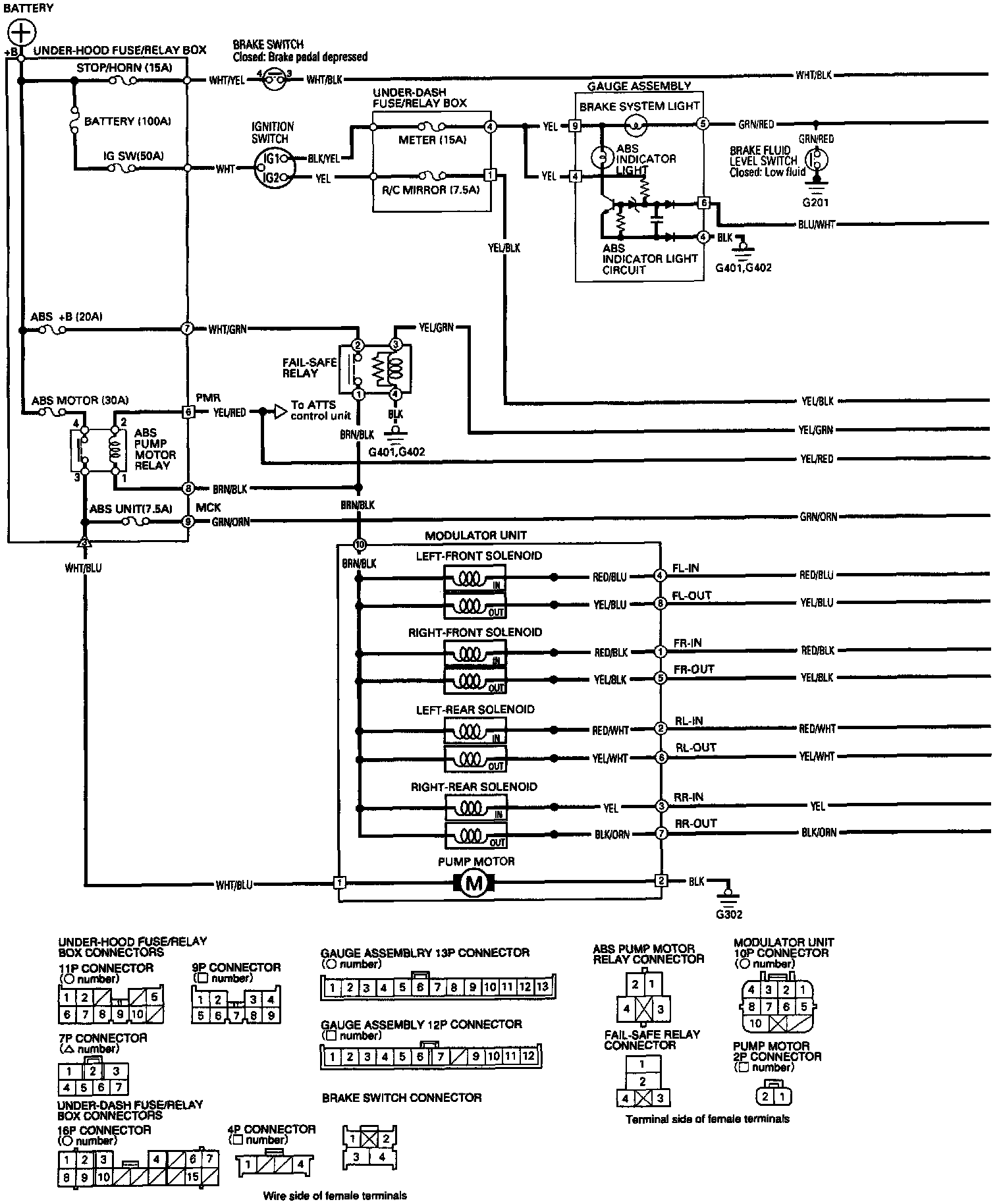

Circuit Diagram

Part 1 Of 2:

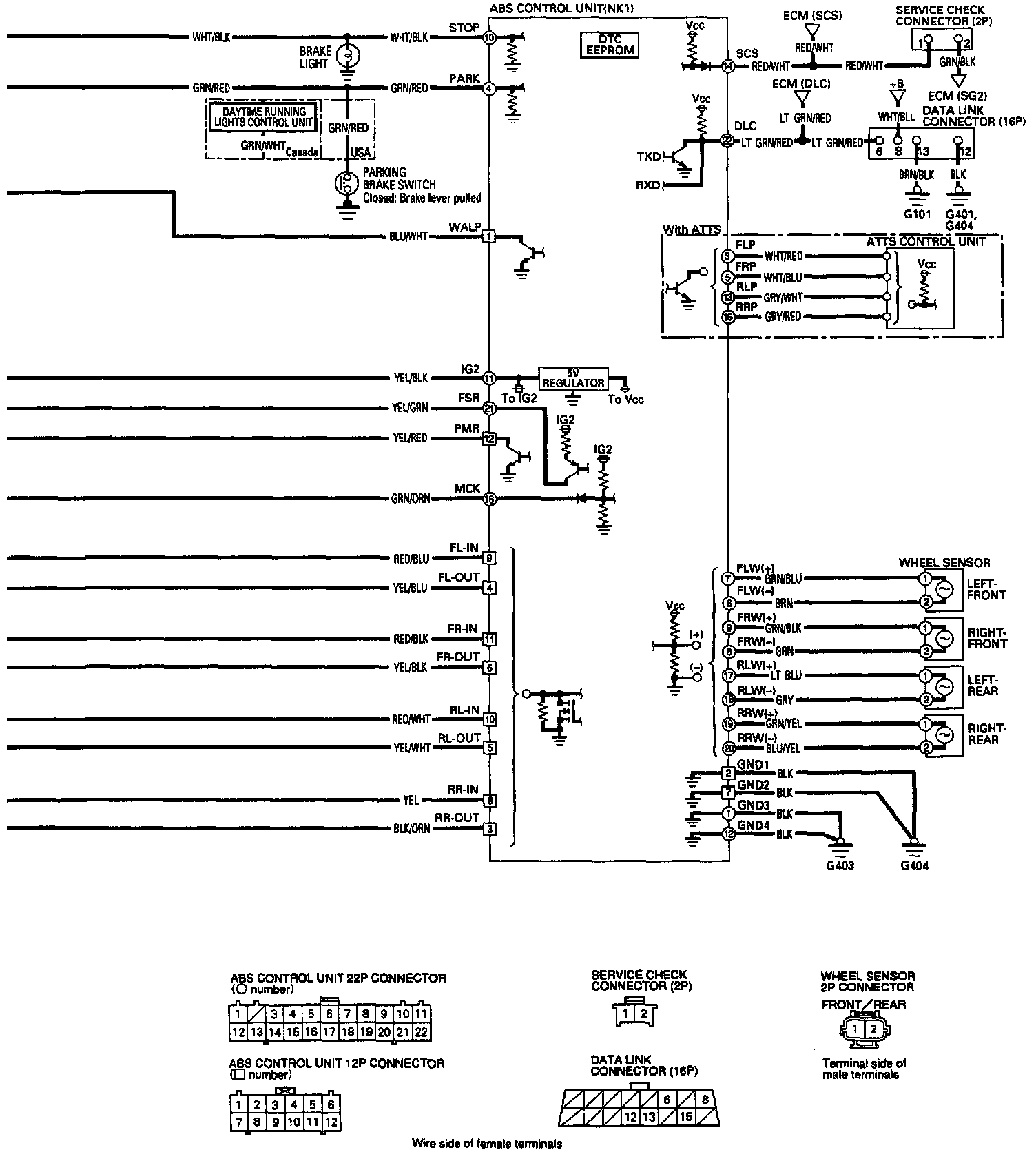

Part 2 Of 2:
