Engine Control Module
Engine Control Module
Engine Control Module (ECM) Connectors A And C:

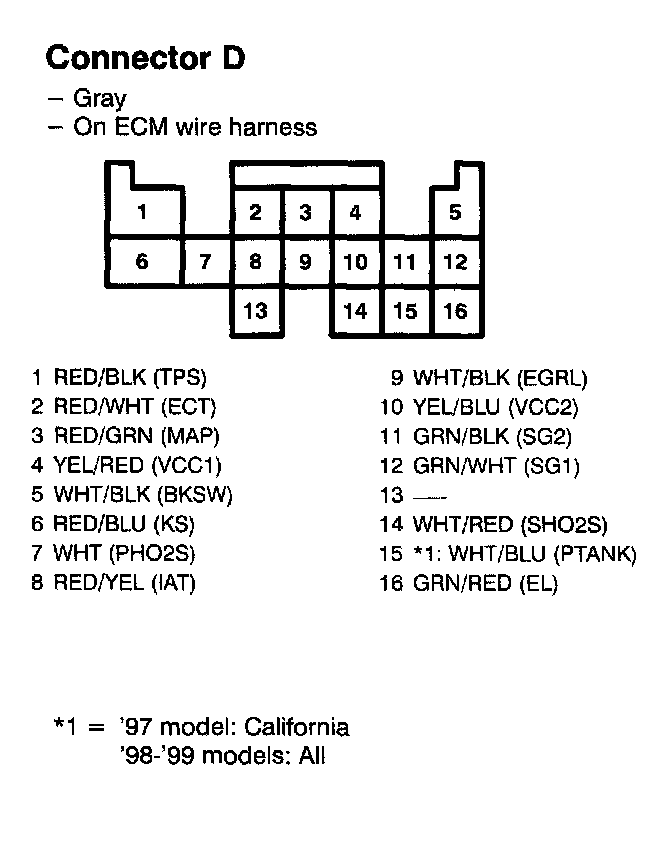

Engine Control Module (ECM) Connector D:
