PGM-FI System

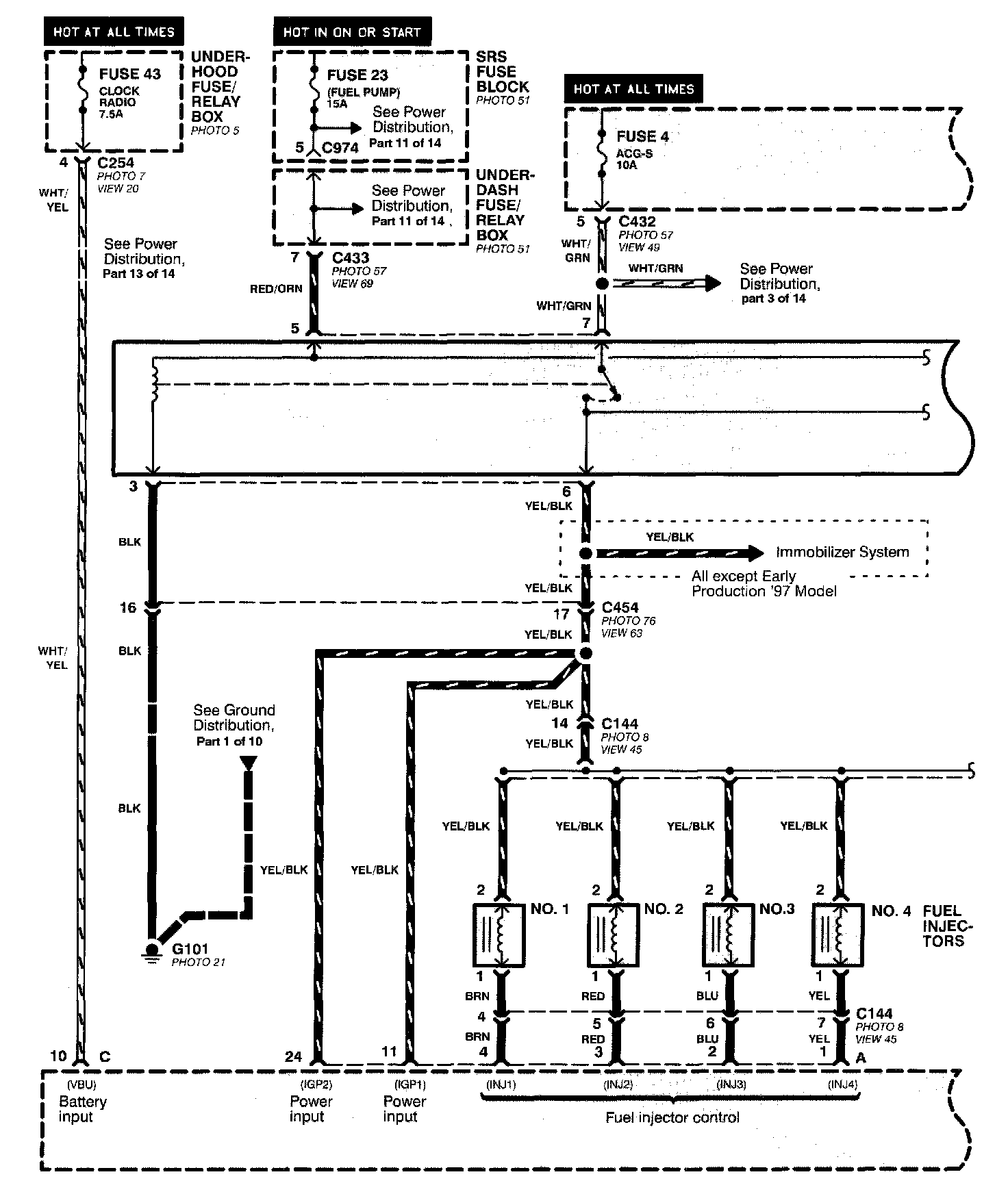

Programmed Fuel Injection System (PGM-FI) (Part 1 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 1 of 11)
Fuse Injectors
SRS Fuse Block
Under-Hood Fuse/Relay Box
Under-Dash Fuse/Relay Box

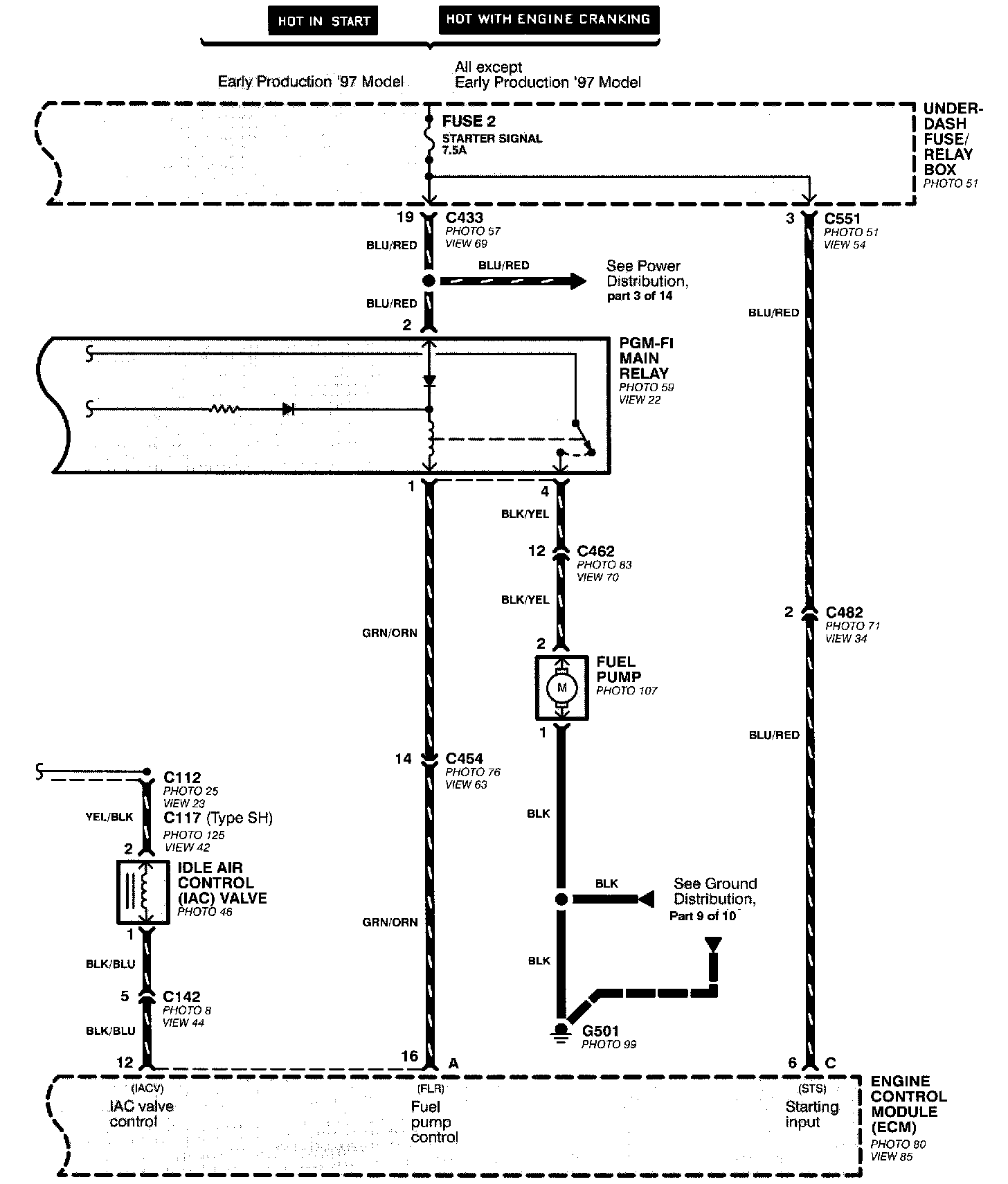

Programmed Fuel Injection System (PGM-FI) (Part 2 Of 11):

(Part 2 of 11)
Engine Control Module
Fuel Pump
Idle Air Control (IAC) Valve
PGM-FI Main Relay
Under-Dash Fuse/Relay Box

Programmed Fuel Injection System (PGM-FI) (Part 3 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 3 of 11)
Crankshaft Position/Top Dead Center (CKP/TDC) Sensor
Distributor Assembly
Engine Control Module

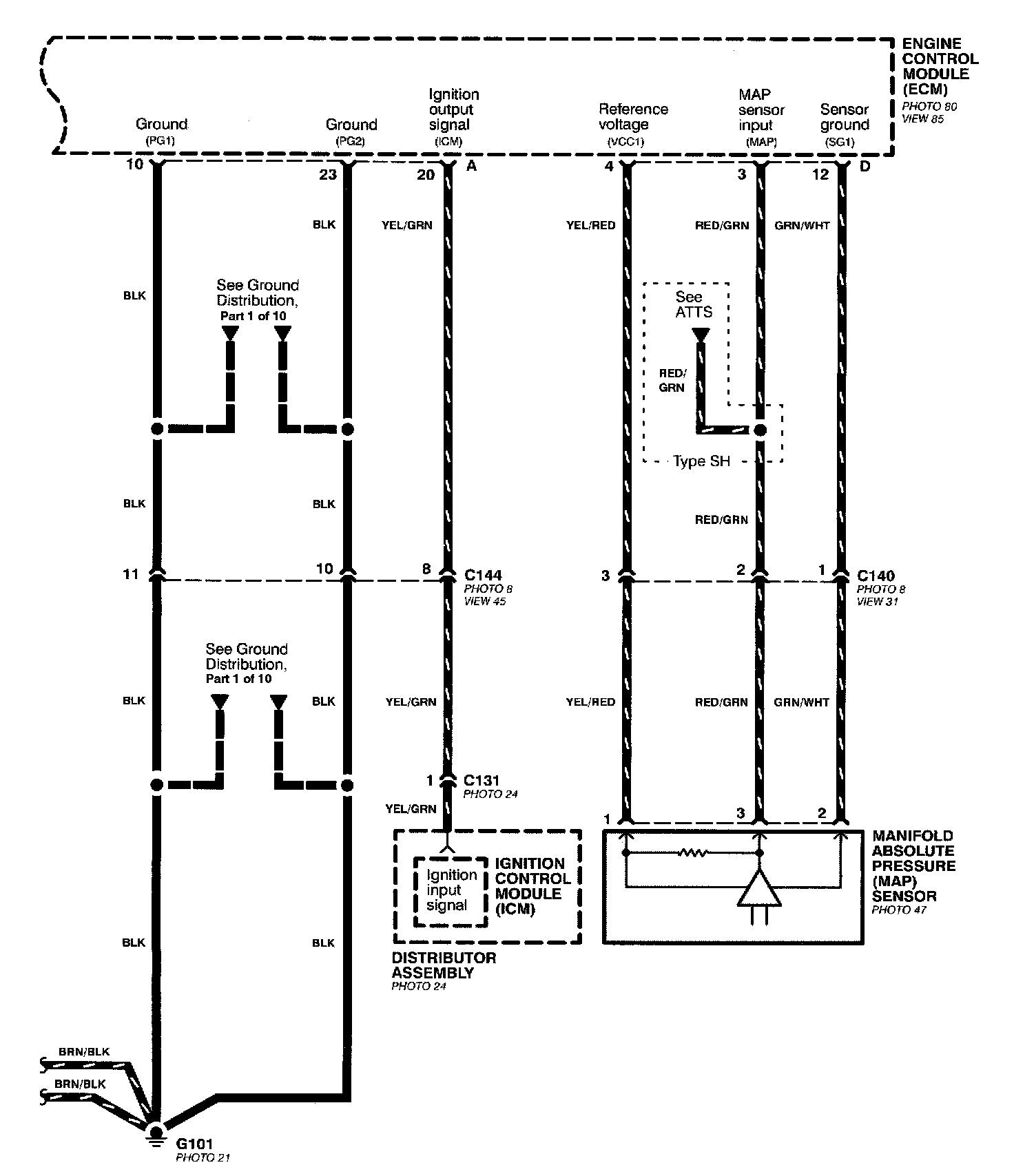

Programmed Fuel Injection System (PGM-FI) (Part 4 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 4 of 11)
Distributor Assembly
- Ignition Control Module
Engine Control Module
Manifold Absolute Pressure (MAP) Sensor

Programmed Fuel Injection System (PGM-FI) (Part 5 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 5 of 11)
ABS Control Unit
ATTS Control Unit
Fuel Tank Pressure Sensor
SRS Unit
Throttle Position (TP) Sensor

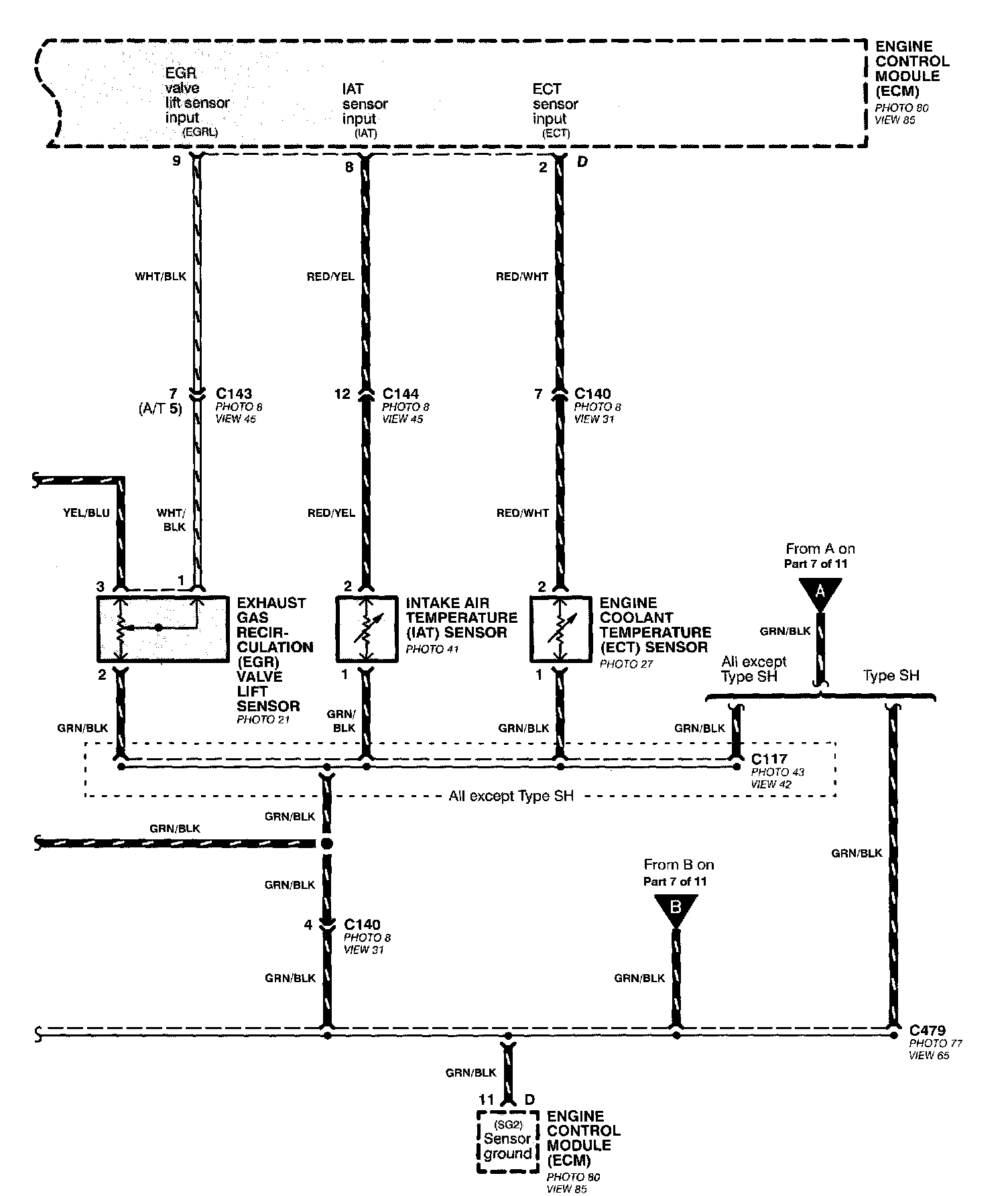

Programmed Fuel Injection System (PGM-FI) (Part 6 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 6 of 11)
Engine Control Module
Engine Coolant Temperature (ECT) Sensor
Exhaust Gas Recirculation (EGR) Valve Lift Sensor
Intake Air Temperature Sensor

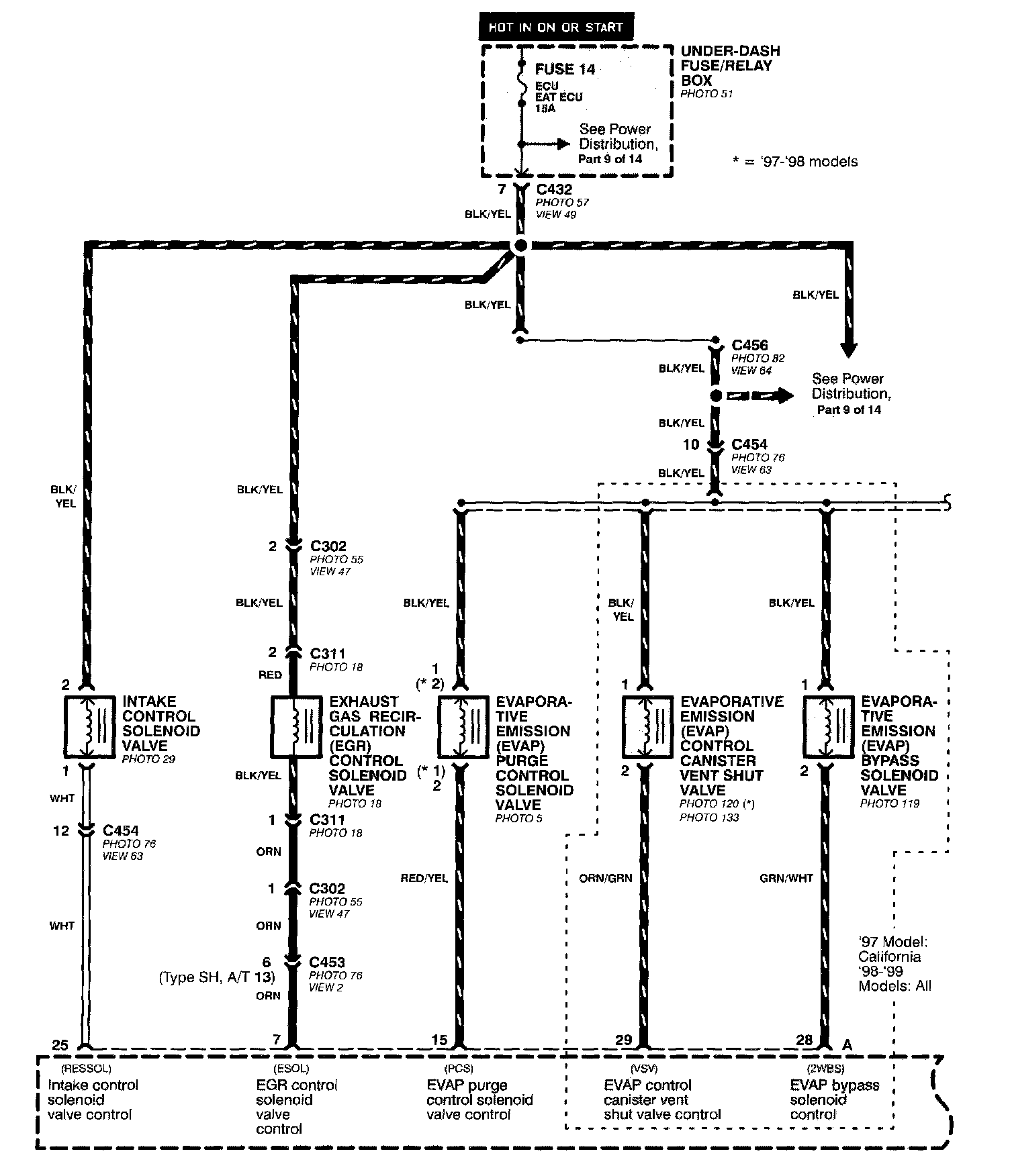

Programmed Fuel Injection System (PGM-FI) (Part 7 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 7 of 11)
Evaporative Emission (EVAP) Bypass Solenoid Valve
Evaporative Emission (EVAP) Control Canister Vent Shut Valve
Evaporative Emission (EVAP) Purge Control Solenoid Valve
Exhaust Gas Recirculation (EGR) Control Solenoid Valve
Intake Control Solenoid Valve
Under-Dash Fuse/Relay Box

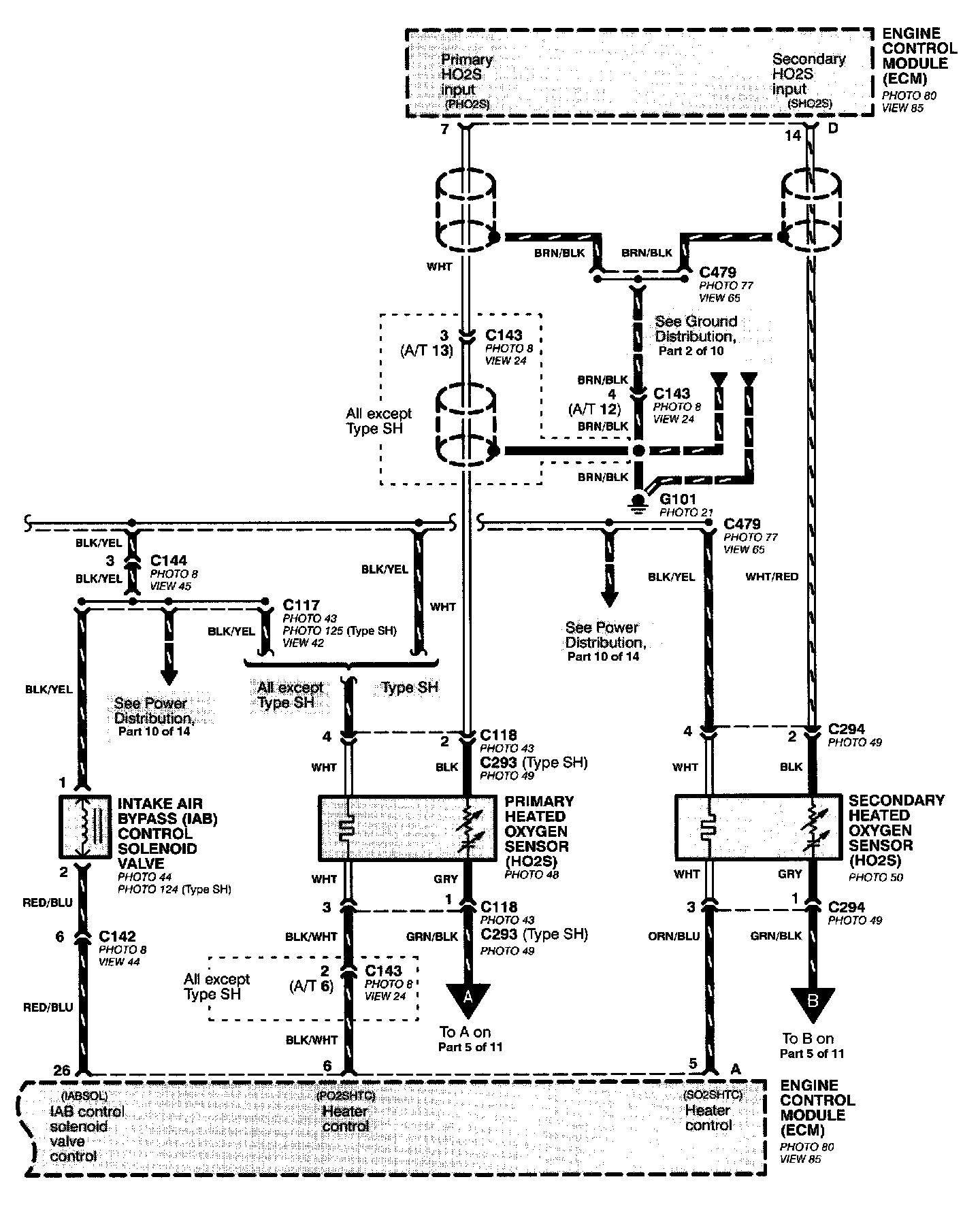

Programmed Fuel Injection System (PGM-FI) (Part 8 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 8 of 11)
Engine Control Module
Intake Air Bypass (IAB) Control Solenoid Valve
Primary Heated Oxygen Sensor (HO2S)
Secondary Heated Oxygen Sensor (HO2S)

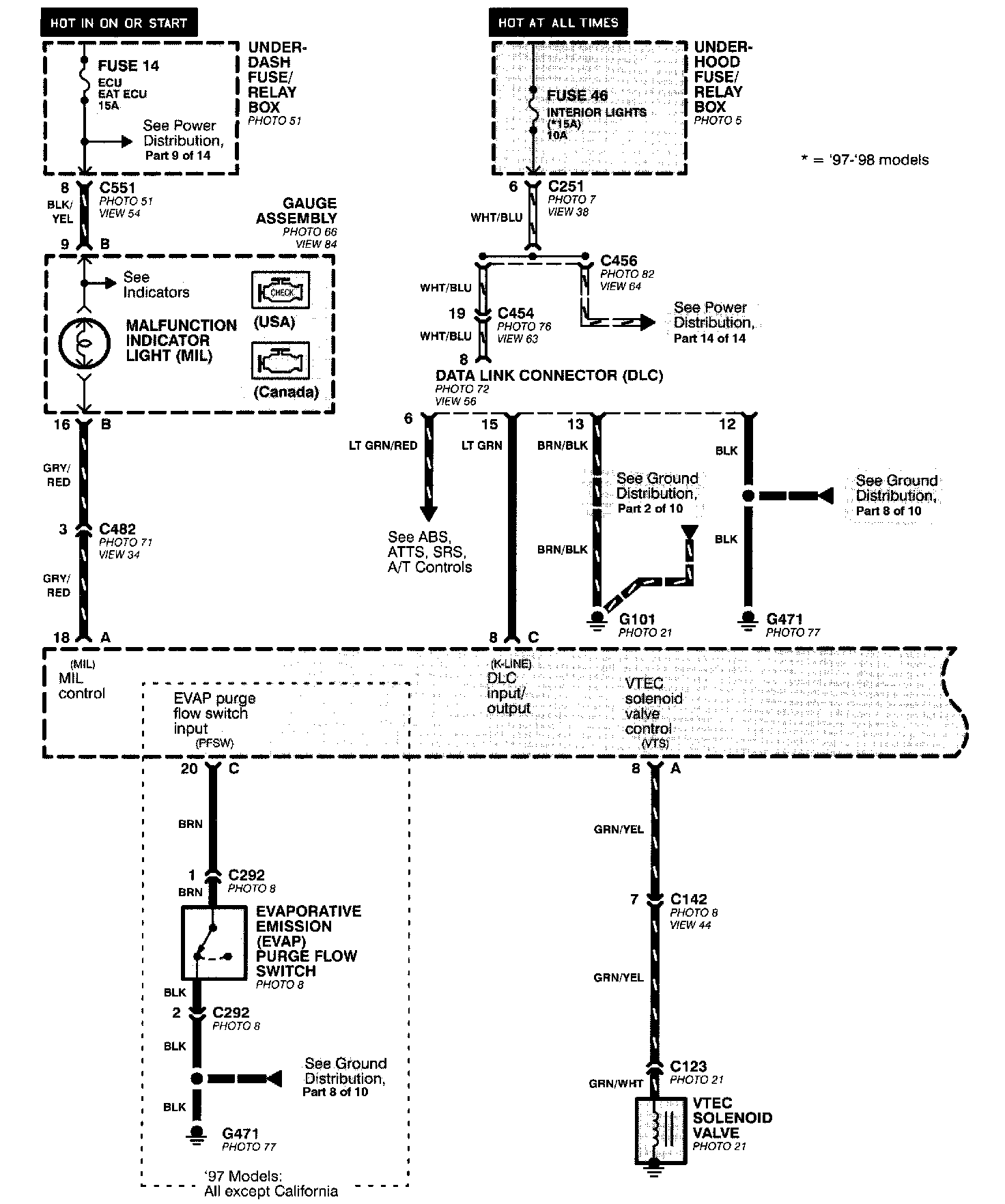

Programmed Fuel Injection System (PGM-FI) (Part 9 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 9 of 11)
Evaporative Emission Purge Flow Switch
Gauge Assembly
- Malfunction Indicator Light
Under-Dash Fuse/Relay Box
Under-Hood Fuse/Relay Box
VTEC Solenoid Valve

Programmed Fuel Injection System (PGM-FI) (Part 10 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 10 of 11)
Engine Control Module
Immobilizer Control Unit
Knock Sensor
Power Steering Pressure (PSP) Switch
Under-Dash Fuse/Relay Box
Under-Hood Fuse/Relay Box
VTEC Pressure Switch

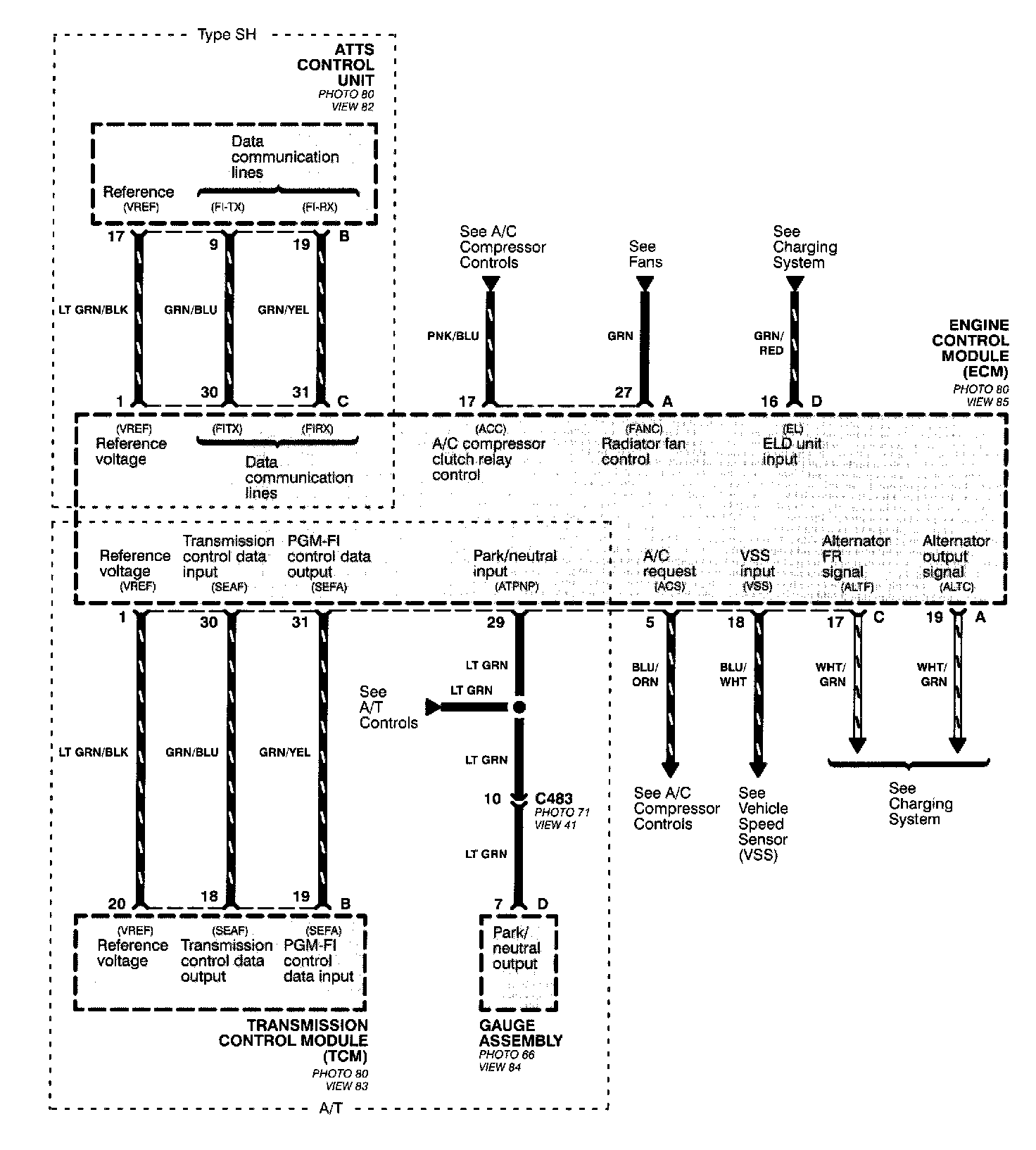

Programmed Fuel Injection System (PGM-FI) (Part 11 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 11 of 11)
ATTS Control Unit
Engine Control Module
Gauge Assembly
Transmission Control Module
